Initializing and Saving Data and Removing the Memory Card
Page 1
8-2-1

Screen Data Area Format

Note
1,2,3...
Note

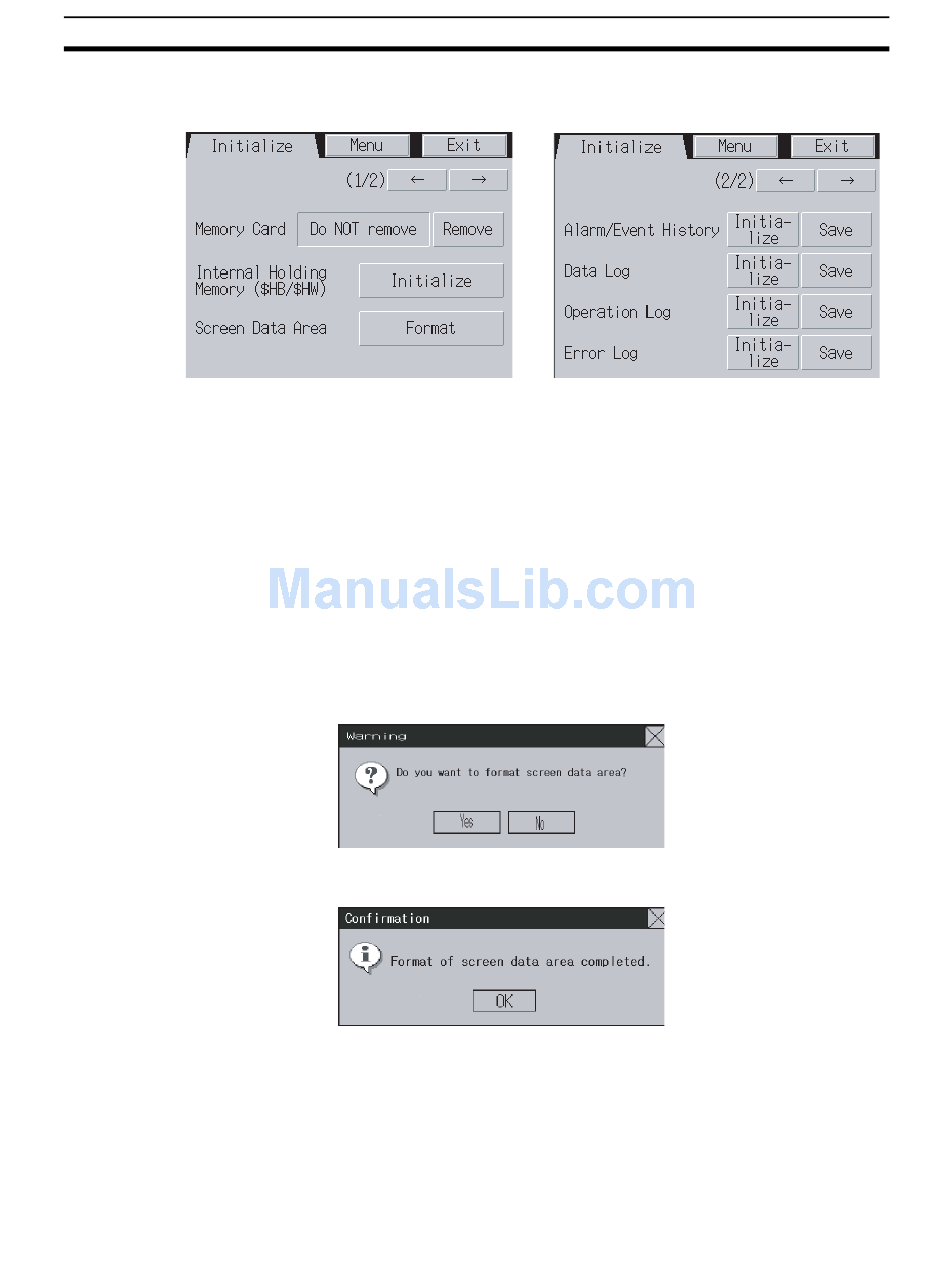

NSJ5 Data Initialize Screen
This function formats the NSJ Controller's screen data. Screen data must be
formatted if it is corrupted and the Display Section cannot start up properly.
The data recorded for the operation log, alarm history, data log, and error log
is not initialized when screen data is formatted.
Before formatting screen data, check that the screen data has been backed
up from the CX-Designer.
Format the screen data by using operations from the Initialize Data Tab Page
in the System Menu, as follows:
1. Press the Screen Data Area Button. A confirmation message will be dis-
played. Press the Yes Button to format the data. Press the No Button to
cancel the initialize function.
2. When the formatting screen data has been completed, a dialog box will be
displayed indicating that the screen data has finished being formatted.
3. An error message will be displayed if the System Menu is closed while
screen data is being formatted. Always transfer the screen data from the
CX-Designer or Memory Card after formatting.
The Display Section of the NSJ Controller must be restarted after screen data
has been transferred.
