Nomenclature and Functions
Controller Section
Controller Section

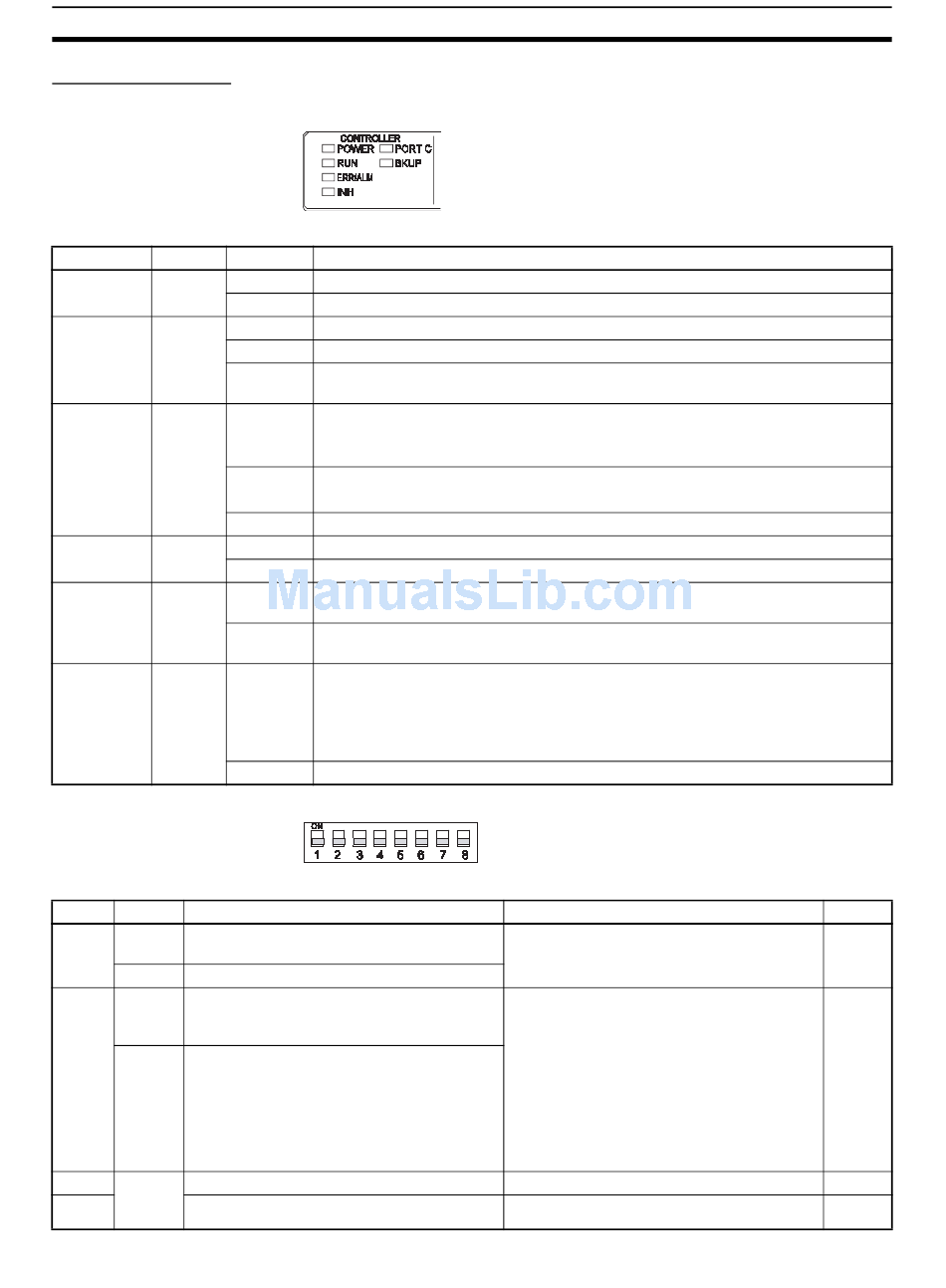

Indicators
Indicator Color
POWER Green
RUN Green
ERR/ALM Red
INH Orange
PORTC Orange
BKUP Orange
Controller Section
DIP Switch
Pin no. Setting
1 ON Writing disabled for user program memory.
(See note.)
OFF Writing enabled for user program memory.
2 ON The user program is automatically trans-
ferred from the Memory Card when power is
turned ON.
OFF The user program is not automatically trans-
ferred from the Memory Card when power is
turned ON.
3 Keep ---
turned
4 ---
OFF.
74
The Controller Section indicators show the status of the Controller Section.
Status
ON Power is being supplied.
OFF Power is not being supplied.
ON The Controller Section is operating normally in MONITOR or RUN mode.
Flashing DIP switch settings error.
OFF The Controller Section has stopped operating while in PROGRAM mode or has
stopped operating due to a fatal error.
ON A fatal error has occurred (including FALS instruction execution) or a hardware
error (watchdog timer error) has occurred.
The Controller Section will stop operating, and all outputs will turn OFF.
Flashing A non-fatal error has occurred (including FAL instruction execution).
The Controller Section will continue operating.
OFF The Controller Section is operating normally.
ON The Output OFF Bit (A50015) is ON. Outputs from all Output Units will turn OFF.
OFF The Output OFF Bit (A50015) is OFF.
Flashing The Controller Section is communicating (sending or receiving) via the Controller
Section's RS-232C port.
OFF The Controller Section is not communicating via the Controller Section's RS-232C
port.
ON Data is being written to flash memory (backup memory). This indicator will also
light when the user program is being restored after the power supply to the NSJ
Controller is turned ON.
Note Do not turn OFF the power supply to the NSJ Controller while this indicator is
lit.
OFF Data is not being written to flash memory.
Function
Meaning
Usage
Used to prevent programs from being acci-
dently overwritten from Programming
Devices (the CX-Programmer).
Used to store the programs in the Memory
Card to switch operations, or to automatically
transfer programs at startup (Memory Card
ROM operation).
Note When pin 7 is ON and pin 8 is OFF,
easy backup reading from the Memory
Card is given priority, so even if pin 2 is
ON, the user program will not be auto-
matically transferred from the Memory
Card when power is turned ON.
---
---
Section 4-1
Default
OFF
OFF
OFF
OFF
