A.3.3 Wiring
Note:
A PG card signal line and a power line must be routed separately and disallow

parallel routing.
To avoid interference from encoder signals, use a shielded cable for the PG card

signal line;
The shield layer of the encoder shield cable should be connected to the earth (such

as the PE of VFD), and it must be connected to earth only at one end to avoid signal
interference;
If the PG card uses frequency-divided output when connecting to an external

power supply, the voltage should be less than 24V; otherwise the PG card will be
damaged;
202403 (V1.0）
Table A-4 Frequency division coefficients
Binary
00000000
00000001
00000010
...
...
11111111

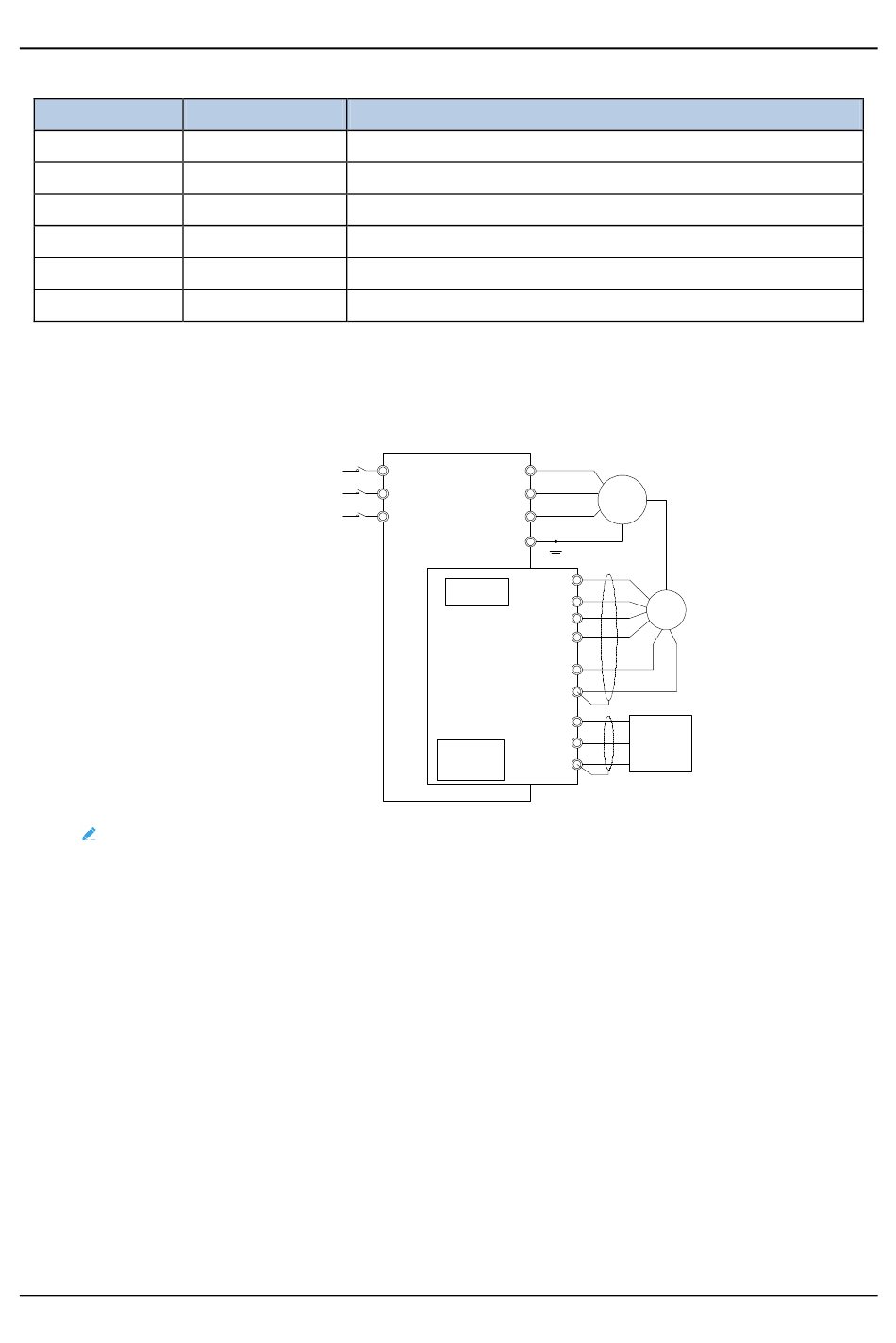

Figure A-3 Wiring diagram of the incremental PG card
R
3PH input
S
50/60Hz
T
Frequency division coefficient
R
U
S V
T
W
PE
IA+
IA-
Potentiometer
IB+
IB-
PWR
COM1
Frequency-
division DIP
OA
switch
OB
COM1
Expansion card
1
2
3
...
m+1
256
M
PG
36000
RPM
meter
