Goodrive390L Series Lift-Dedicated VFD

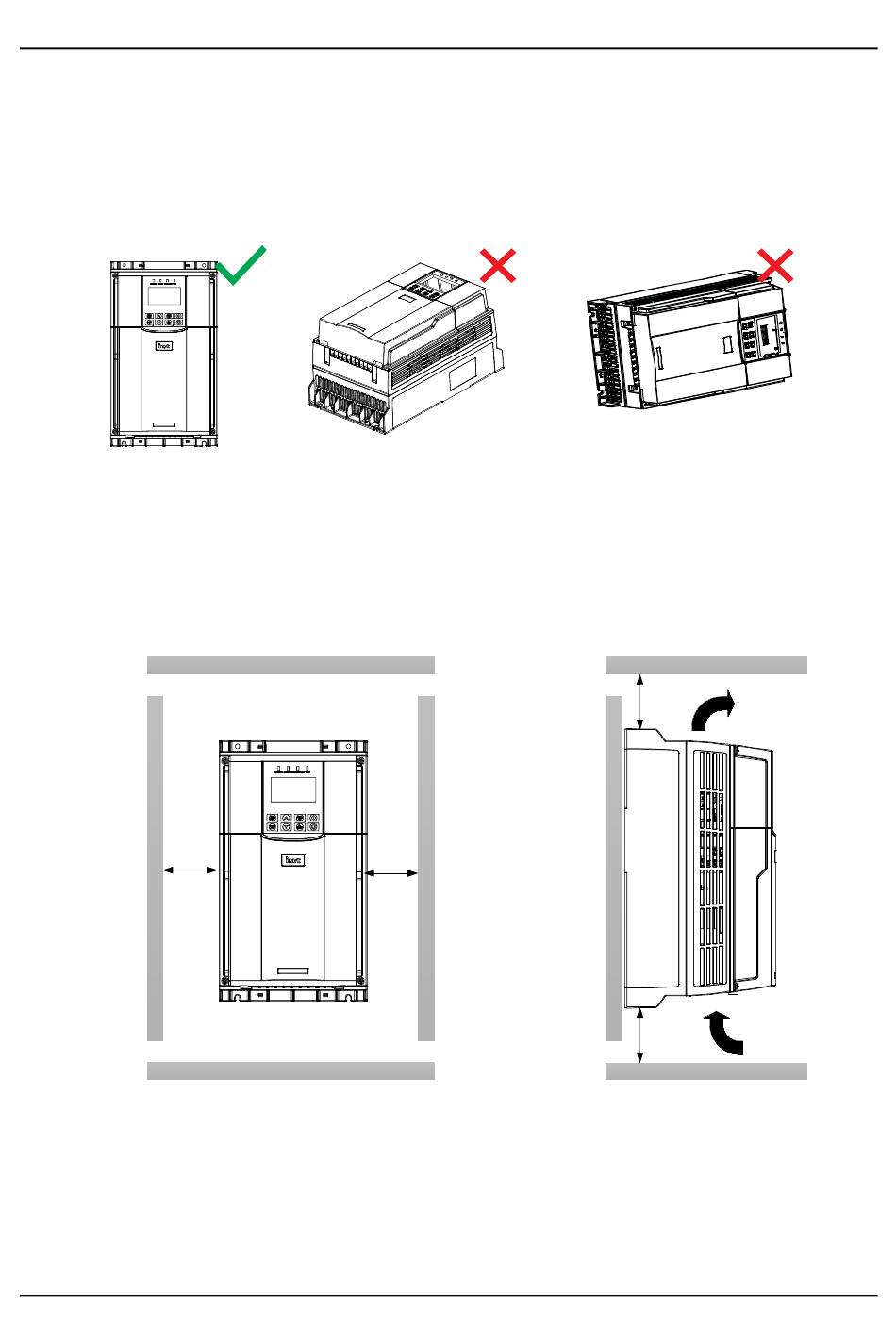

3.2.2 Installation direction

The VFD can be installed on the wall or in a cabinet. Vertical installation is a must. Do not
install the VFD in other directions such as horizontal, transverse or upside-down.
Vertical
installation

3.2.3 Installation space

3.2.3.1 Single VFD
≥100mm

3.3 Mounting method

3.3.1 Wall mounting

The mounting procedures are as follows:
202403 (V1.0）
Figure 3-1 Mounting direction
Horizontal
installation
Figure 3-2 Installation space diagram of single VFD
≥100mm
Mechanical installation
Transverse
installation
Hot
≥100mm
air
Cold
≥100mm
air
15
