Step 2 Connect the ground wire of the motor cable to the PE terminal of the VFD,
connect the motor 3PH cable to the U, V and W terminals, and tighten up.
Step 3 Connect optional parts such as the braking resistor that carries cables to
designated positions. For details, see section
Step 4 Fasten all the cables outside the VFD mechanically if allowed.
202403 (V1.0）

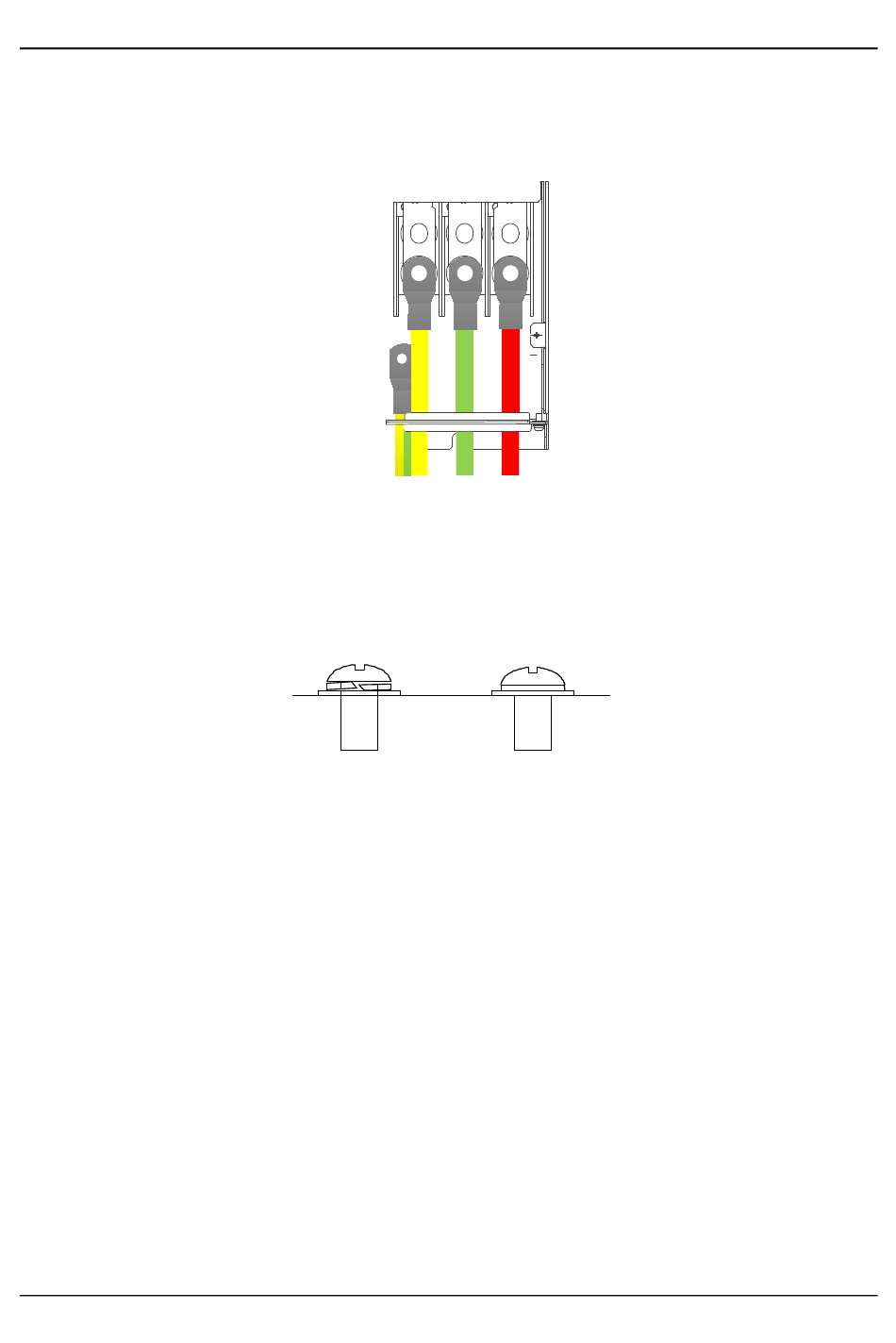

Figure 4-4 Wiring diagram of motor cables
U
PE
Figure 4-5 Screw installation diagram
NG
The screw is not
fastened.
V W
4.2.4 Main circuit wiring
Y
The screw is
fastened.
Electrical installation
diagrams.
