Note:
Set the motor parameters properly before the motor parameter autotuning is

conducted.
Note the difference in synchronous and asynchronous motor parameter autotuning

processes.
For autotuning on synchronous motor with load, it is required to handle the closing

& opening timing of the output contactor and tractor brake.

6.4.2 Adjusting maintenance running parameters

Maintenance running can be used to check whether the lift system is running properly.
During maintenance, check whether the actual running direction of the lift is the
consistent with the direction in the command. If not, swap any two cables of U, V, and W
202403 (V1.0）

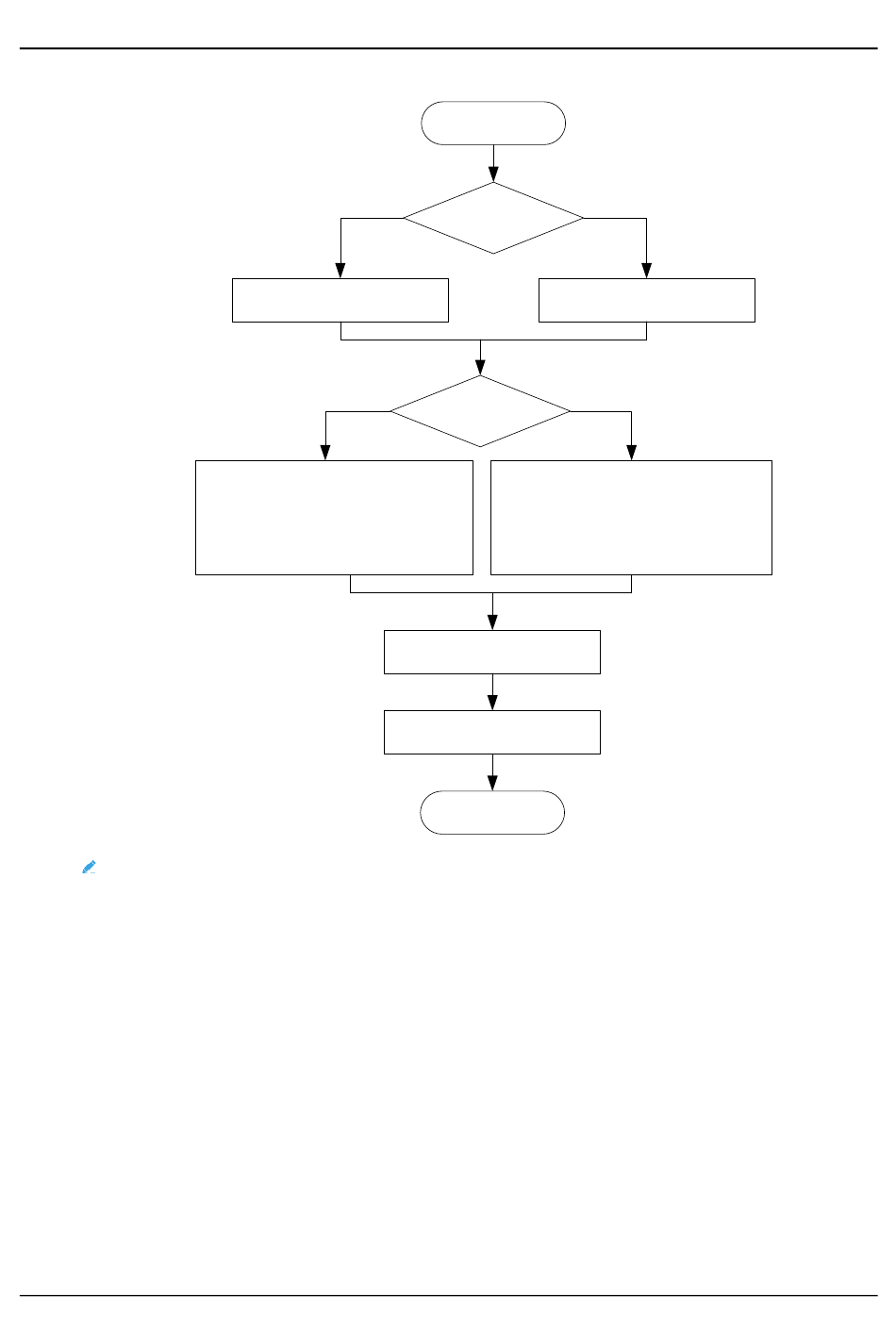

Figure 6-4 Motor parameter autotuning
LED keypad
Set to LED keypad
(P00.01=0)
AM
Set the autotuning mode
(P00.15)
1: Dynamic autotuning
2: Complete parameter static
autotuning
3: Partial parameter static autotuning
Start
LCD keypad
Keypad type
Set to LCD keypad
SM
Motor type
Set the autotuning mode
1: Rotary autotuning (DC braking)
2: Static autotuning
3: Rotary autotuning (initial angle
identification)
Press "RUN" to start
autotuning
Autotuning
End
Commissioning guidelines
(P00.01=2)
（P20.11）
