Step 11: Turn off the power of module
There is a SD card interface right behind the display screen, put the SD card into the interface. Pay
attention that HMI has two circuit boards: monitor board and control board, each circuit board has a
SD card interface, do not make it wrong. You should put the SD card into the interface of the
monitor board.

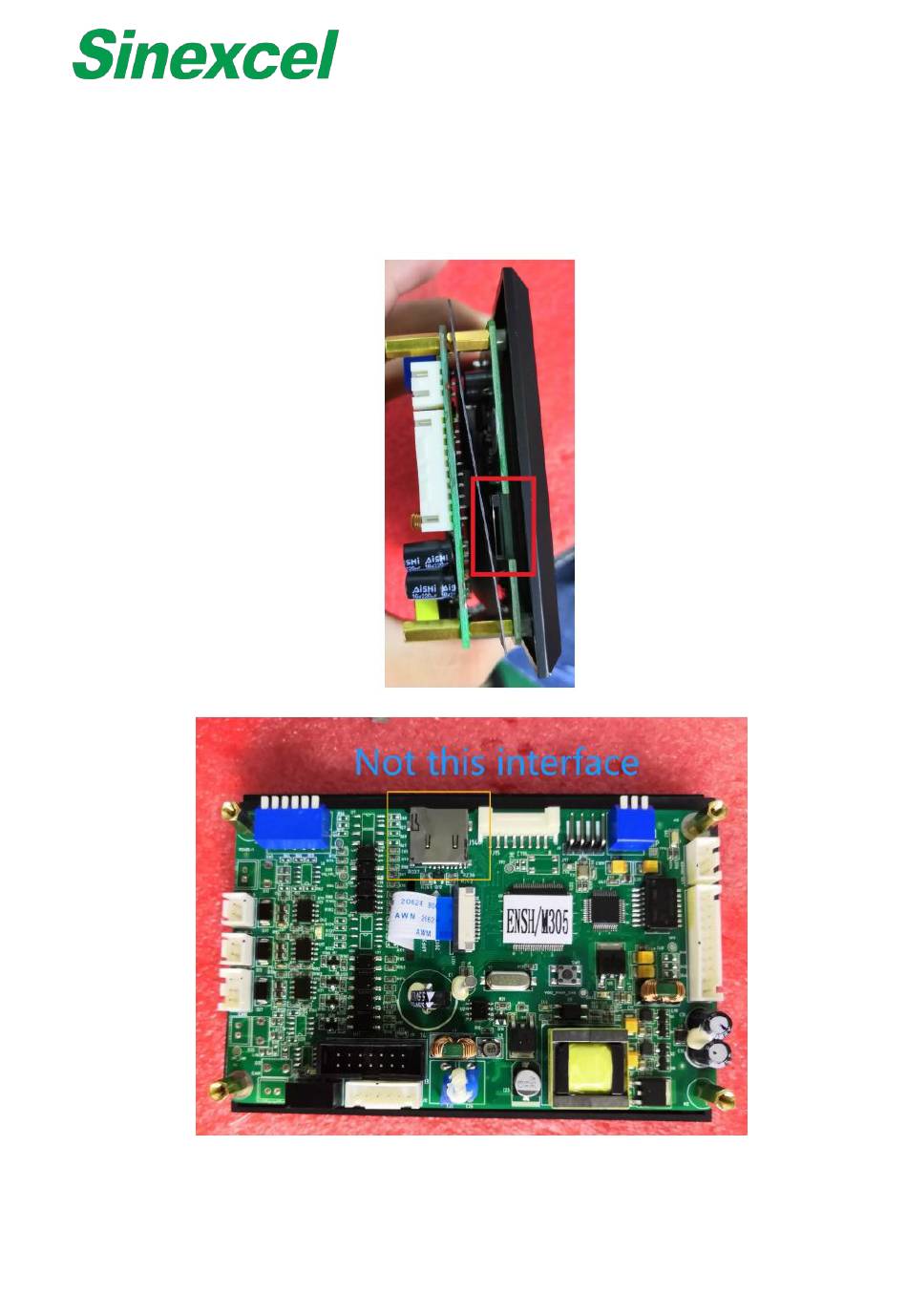

Figure A- 31 The position of SD Card Insert Interface
Figure A- 32 Do not find the wrong position to operate
