Alarms, Operations, Faults, History data
Alarm records (historical equipment alarm information) and operation records (historical manual setting
records) can be exported 500 records each.
Fault point information: HMI automatically record module's fault information for Sinexcel R&D analysis
(including hardware and software faults: inverter, relay, capacitor, hall, soft start, auxiliary power supply, etc.;
Info includes load current/compensation current/positive and negative bus voltage/temperature, etc.)
Historical data: HMI automatically record 20, 000 analog data (analog data include: L1/L2/L3 three-phase
grid current, three-phase grid voltage, three-phase grid THDI, three-phase grid THDV, three-phase grid PF,
three phase grid frequency, three-phase grid active/reactive/ apparent power; L1/L2/L3 three-phase load
current, three-phase load voltage, three-phase load THDI, three-phase load THDV, three-phase load PF,
three-phase load frequency; L1/L2/L3 three-phase compensation current, three-phase compensation load
rate, temperature, etc.) , record more than 20, 000 new data collected by monitoring and automatically
overwrite old data.
02 Data Record & Export
When customers need to record system grid current, voltage, power factor, and other data and monitoring
settings, information can be collected and exported through the following monitoring interface.
Step 1: Setting-PREFER.-Data Record

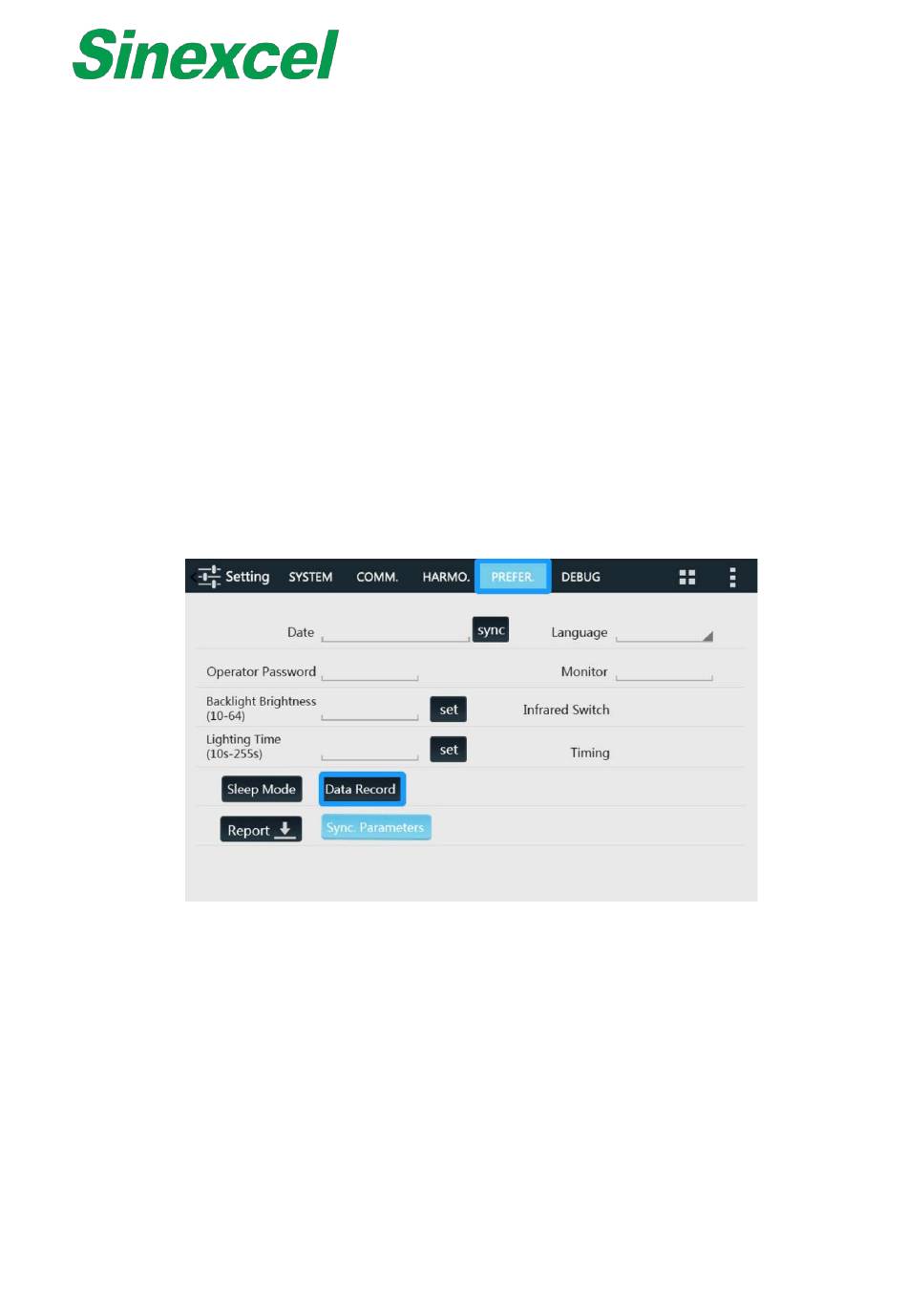

Figure A- 4 Sinexcel 7-inch HMI Setting-PREFER.-Data Record
