2.5.2 COMMUNICATION CONNECTION

The Sinexcel 7-inch HMI is designed for centralized control of Sinexcel modules, the HMI provides a clear and
detailed display of the status and performance of the modules, allowing for easy monitoring and management
of the system, which only needs the function that connect the J22 as the module.
Length of the cable
Note: The more introduction of Sinexcel 7-inch HMI please refer as Appendix X.

2.5.3 485 COMMUNICATION CABLE

Note: The function of 485, which is to communicate between modules and 7-inch HMI.

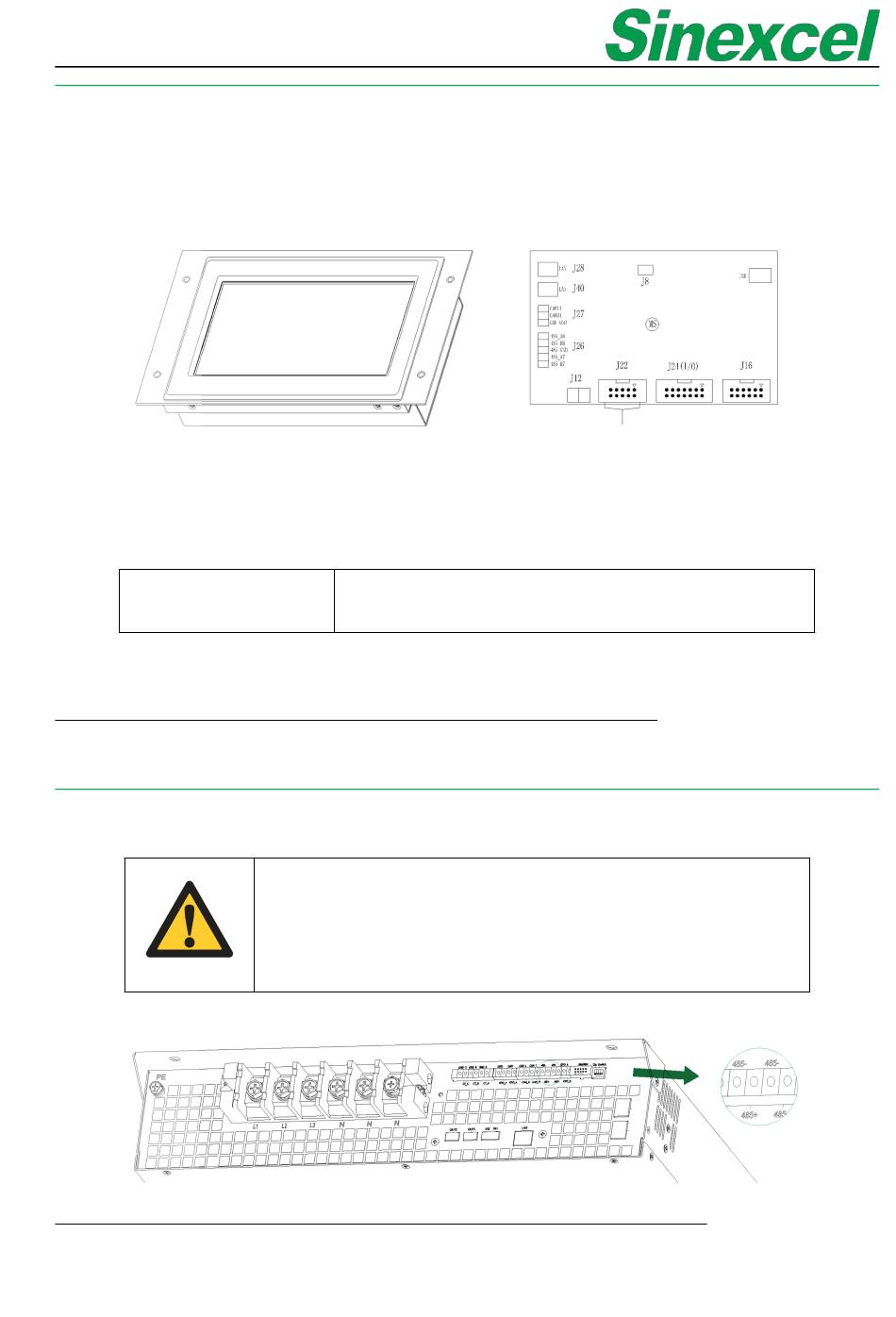

Figure 2- 28 7-inch HMI
3000mm (Standard is 3000nn, but support 5000mm and
10, 000mm length of cable customized; If needs longer
cable please contact Sinexcel Engineer)
NOTICE
When you parallel the rack mounted modules that need to connect the
communication cable, which to meet the communicate between the
modules.
Figure 2- 29 The position of 485
Table 2- 6
47
