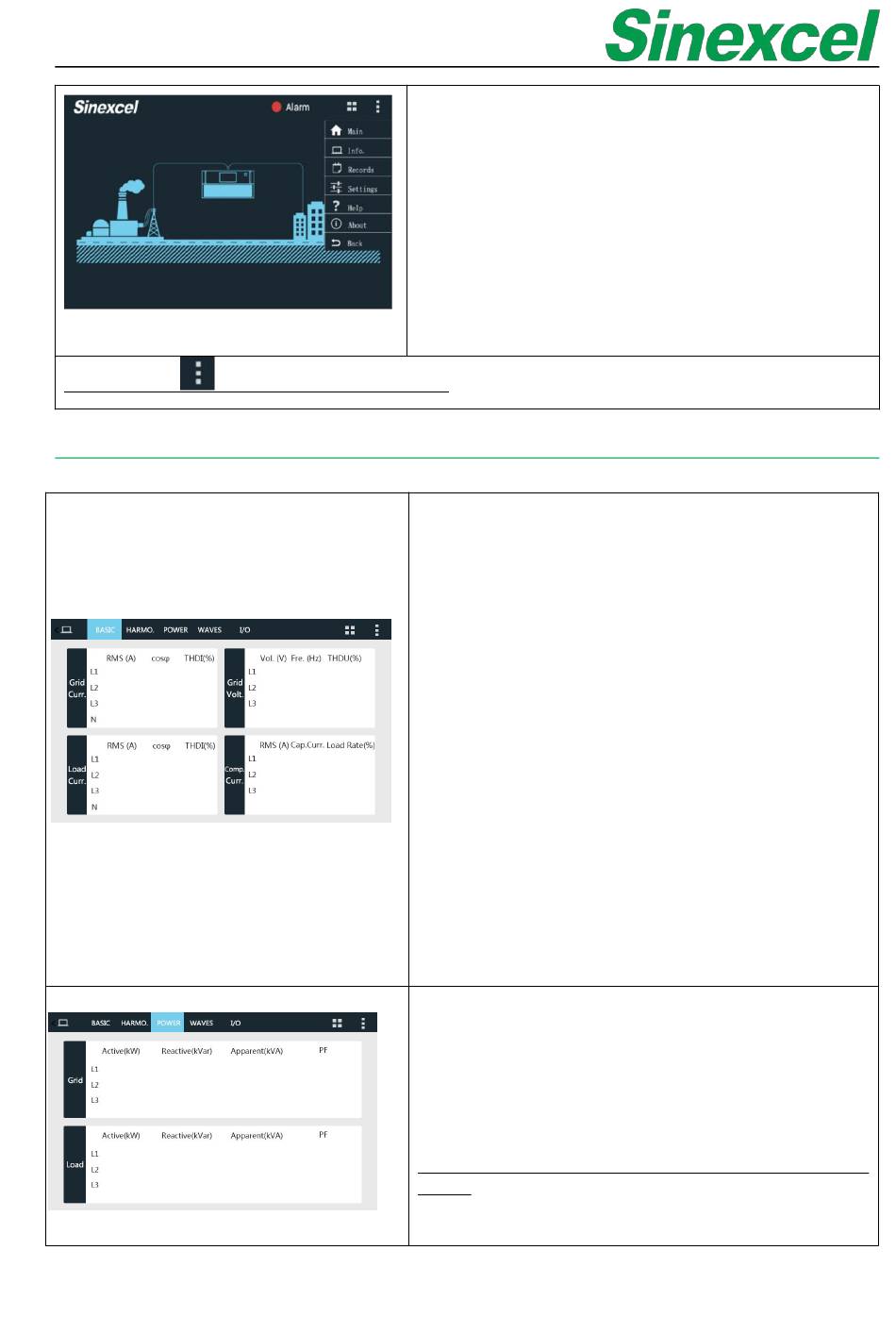

Main Screen with drop-down selection
Note: click on to get a drop-down selection
3.2.1 'INFO ' ILLUSTRATE
Basic Interface
Power
There's 7 parts in Sinexcel 7-inch HMI, 'Main', 'Info.',
'Records', 'Settings', 'Help', 'About' and 'Back'
The 'BASIC' can be real-time observe the data of RMS(A),
PF, THDi(%), Vol.(V), Fre.(Hz) and THDu(%) of Grid
Current, Grid Voltage and Load Current, and RMS(A) and
Load rate(%) of Compensate Current.
"Grid Curr." means the current after compensation. For
example, PF in Grid Curr. refers to the compensated PF
value
"Grid Volt." means the voltage of module power access
point.
"Load Curr." means the current before compensation. For
example, THDi (%) in Load Curr. refers to the before
compensated THDi (%) value.
"Comp Curr." means the current outputted from module.
"RMS": root mean square of current.
"Lode Rate": Ratio of Comp power to rated power of
Module.
The 'POWER' can be real-time get the information of
Active(kW), Reactive(kW), Apparent(kW) and cosφ of Grid
side and Load side.
'Grid side' means after compensation. For example, cosφ
in Grid Side refers to the compensated cosφ value.
'Load side' means before compensation.
Note: This cos φ is real PF, not include the reactive
power.
6
