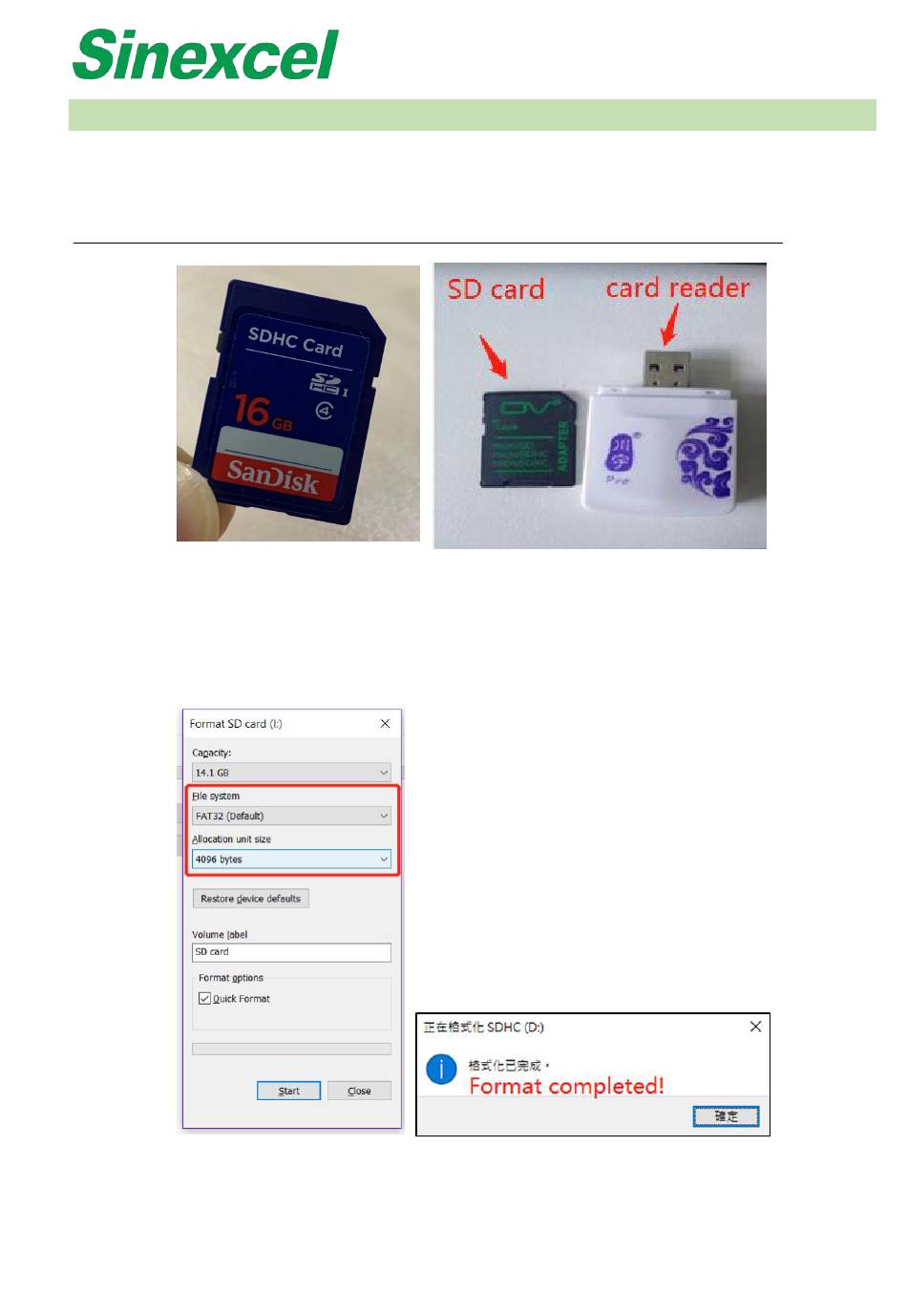

SINEXCEL 7-INCH HMI SOFTWARE UPGRADE INSTRUCTION
Tools required for upgrade:
Large SD card + card reader or Large SD card + USB Flash disk
Note: The capacity of SD card should be 2G to 16G, otherwise the HMI cannot read the SD card.
Figure A- 10 SD Card
Figure A- 11 SD card + card reader
Step 1：
Please format SD card and USB card with computer. When you format the SD card, the File system
please select'FAT32', the Allocation unit size please select'4096 bytes'. Then click start to complete
formatting.
Figure A- 12 Format SD Card Figure
A- 13 Format
32
