No. Name
Lifting ring
①
Panel
②
HMI
③
EPO button
④
Indicator
⑤
Cable entry
⑥
1.4.3.3 IP54 CABINET
Sinexcel's IP54 cabinet is a high-protection level solution that is designed to provide superior protection
against dust and water. This makes it ideal for harsh environments and outdoor applications. The cabinet is
available in two different sizes, providing customers with 2 options to choose according to their specific needs
and requirements.
The two different sizes of IP54 cabinets offered by Sinexcel provide customers with flexibility in choosing the
right cabinet for their specific application. The smaller size is ideal for applications with limited space, while
the larger size is suitable for applications that require bigger capacity solution.

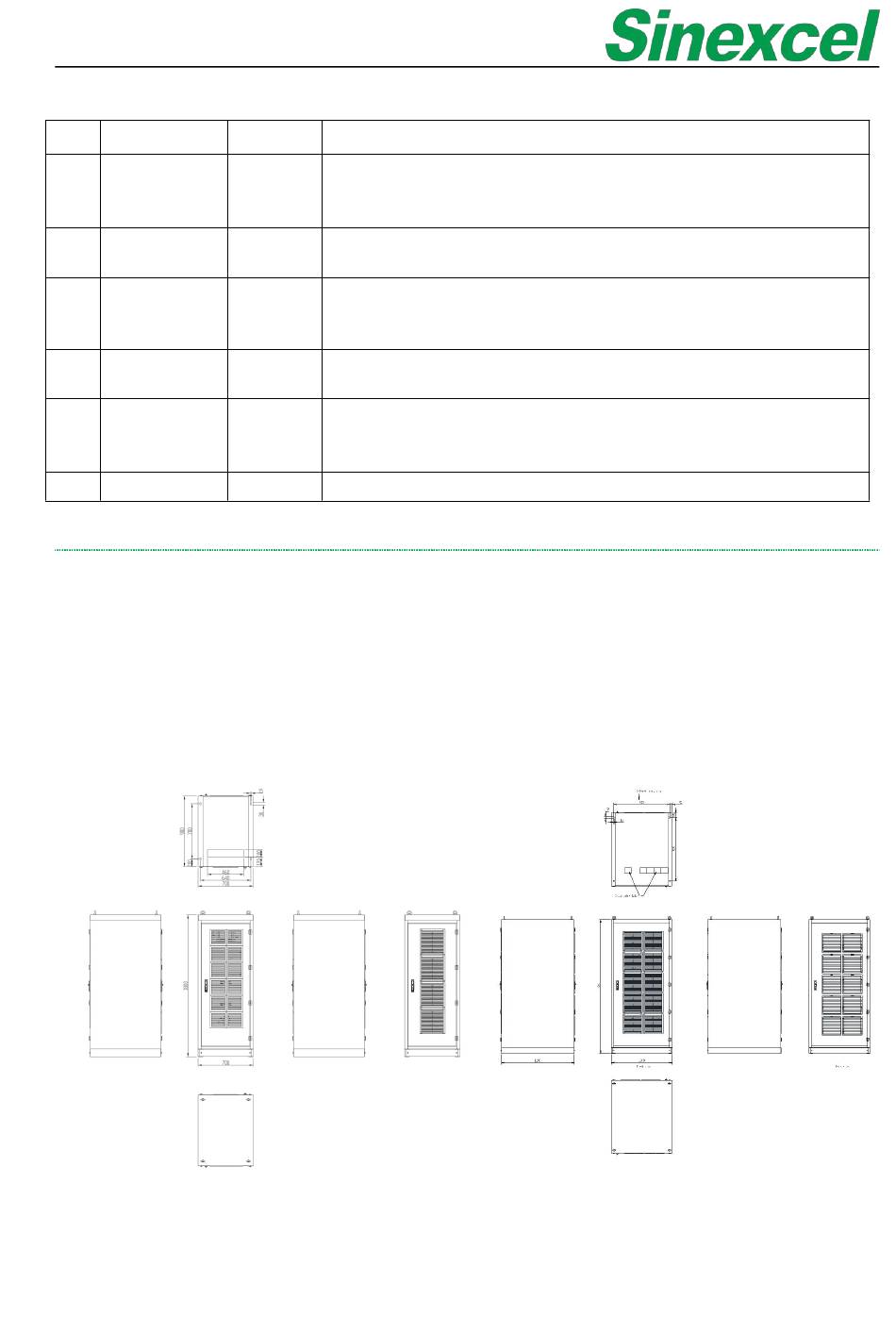

Figure 1- 27 IP54 Cabinet 700*900*1800
Table 1- 4 The definition of Sinexcel Top-Vent Cabinet structure
Number Description
4 The top of the cabinet frame is provided with a hole for the ring
bolt, allowing the lifting mechanism and the ring bolt to lift the
cabinet for movement and placement.
6 Front panel, back panel, right panel, left panel, top panel and
bottom panel, which are made by Aluminum Zinc.
1 7-inch human-machine interface, which support to see data
convinient for customer, like voltage, current and PF. Full touch
screen color screen operation.
1 Emergency Power Off, when an emergency occurs, which press
the button to stop the cabinet system from working immediately.
2 The red indicator and green indicator.
When system is standby/running, the green indicator is lights on.
When system is in the status of alarm, the red indicator is light on.
1 Used for the incoming cables.
Figure 1- 28 IP54 Cabinet 1000*1200*2200
