No. Name
Lifting ring
①
Panel
②
HMI
③
EPO button
④
Indicator
⑤
Cable entry
⑥
Note: Sinexcel Flexi Cabinet 1 (600*1000*2200mm), the copper low is the back position of the cabinet; The
other 3 types of cabinets, the copper low are in the side cabinet.

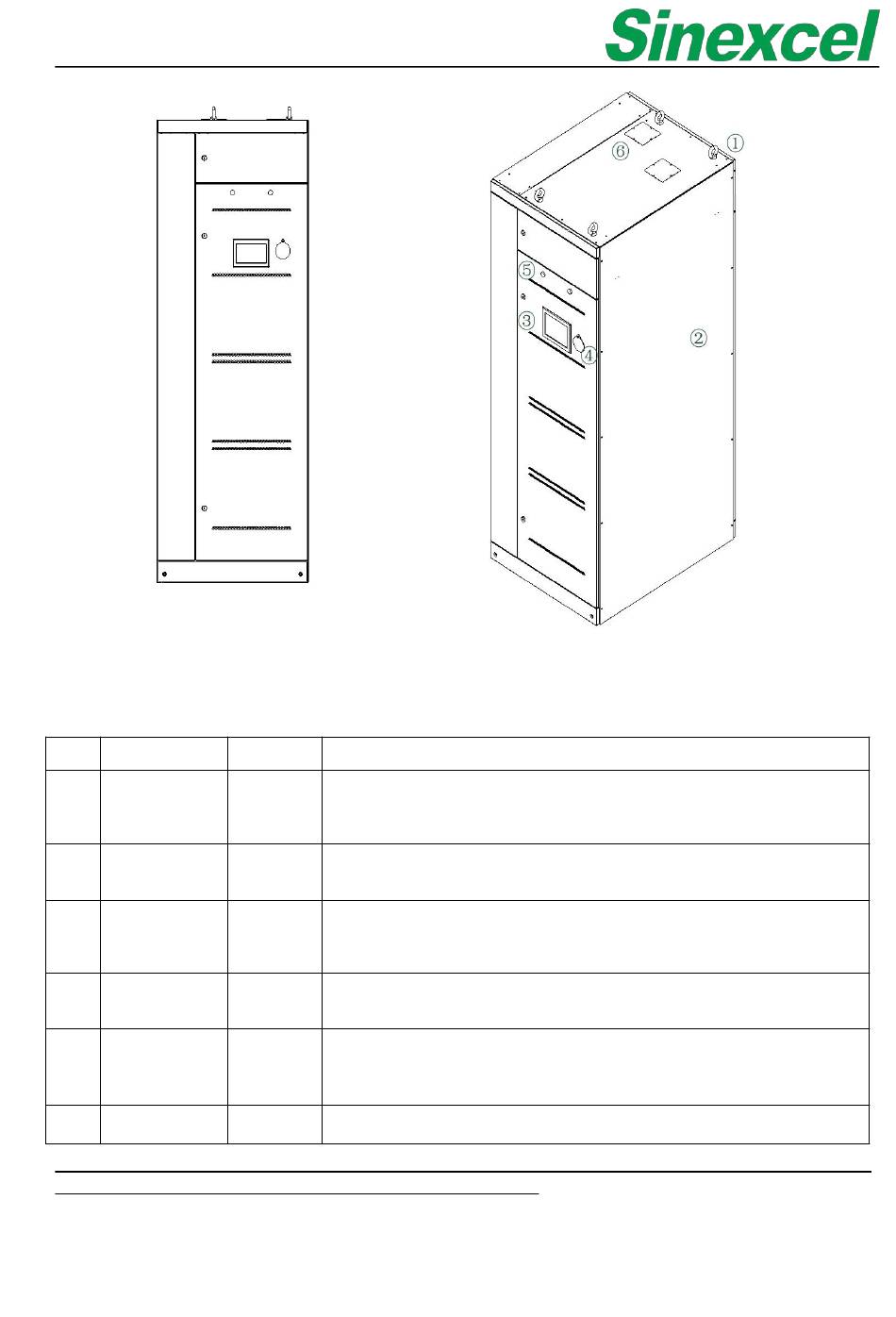

Figure 1- 23 Structure of Sinexcel Flexi Cabinet
Table 1- 3 The definition of Sinexcel Flexi Cabinet structure
Number Description
4 The top of the cabinet frame is provided with a hole for the ring bolt,
allowing the lifting mechanism and the ring bolt to lift the cabinet for
movement and placement.
6 Front panel, back panel, right panel, left panel, top panel and bottom
panel, which are made by Aluminum Zinc.
1 7-inch human-machine interface, which support to see data
convenient for customer, like voltage, current and PF. Full touch
screen color screen operation.
1 Emergency Power Off, when an emergency occurs, which press the
button to stop the cabinet system from working immediately.
2 The red indicator and green indicator.
When system is standby/running, the green indicator is lights on.
When system is in the status of alarm, the red indicator is light on.
2 Used for the incoming cables, no restrict for incoming cables position.
