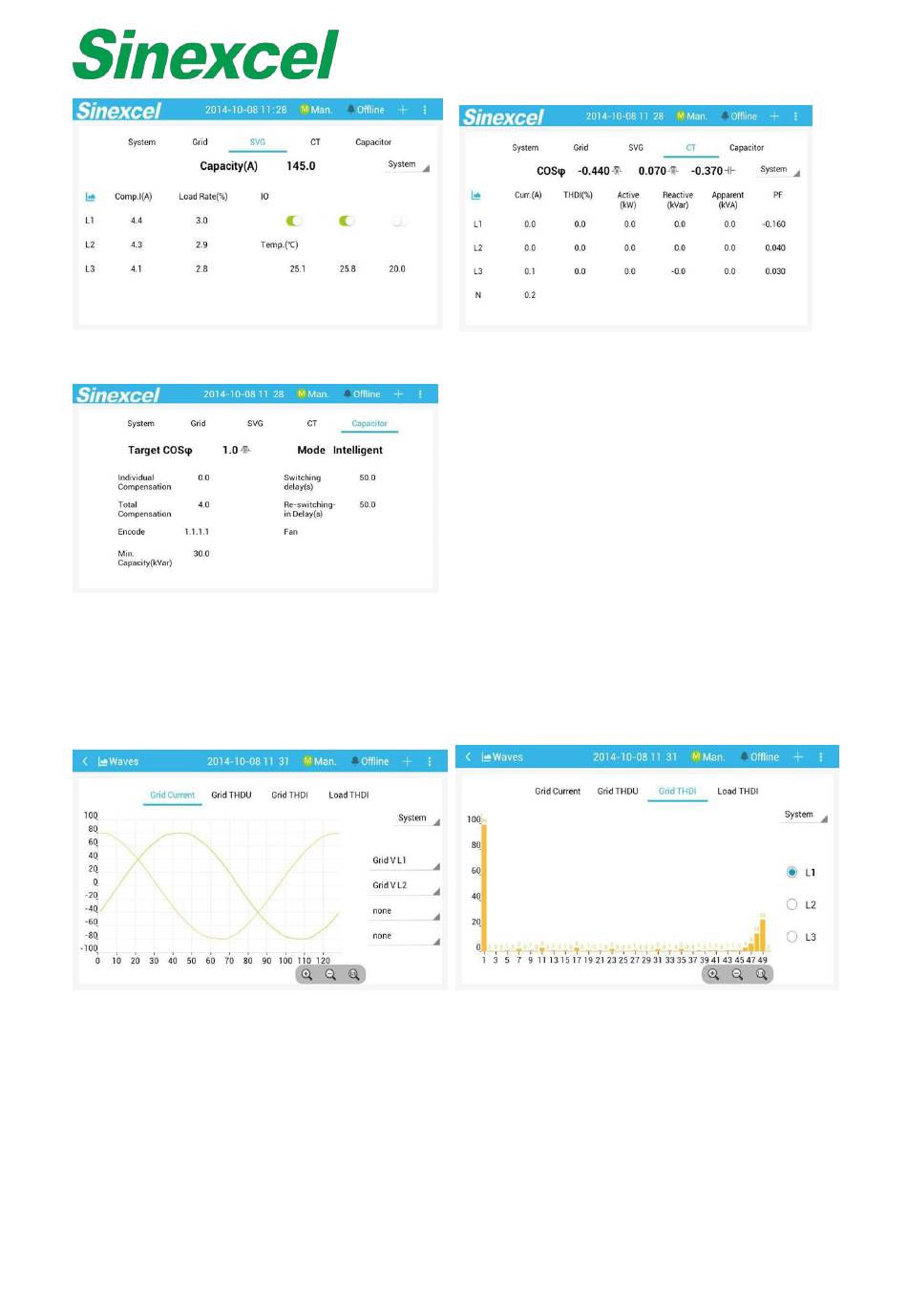

Figure A- 60 SVG parameter information Figure A- 61 Load information
Figure A- 62 Capacitor settings information
Waveform display
Click waveform sign, which can read grid voltage, grid current, load current, offset current, grid THDU, grid
THDI, and load THDI waveform, as shown in Fig.5.6 and 5.7.
Figure A- 63 Voltage and current waveform Figure A- 64 Grid THDI Waveform
Recording and analyzing of historical data
The monitoring module of Sinexcel ICMS can store historical data; namely, it can save data at the time of
power down. Users may click at the top panel and then click " record " , check the current alarm, historical
alarm, operation record of ICMS, switching times, operation time and operation data of each capacitor.
81
