CONNECT TO 7-INCH HMI

The 7-inch HMI has the Ethernet port itself, it is no need to use the RJ45 Ethernet port of the dry connect
board. When connecting dry contact board to 7-inch HMI, just connect the black 14-pin terminal of the dry
connect board to the J24 port on the 7-inch HMI.

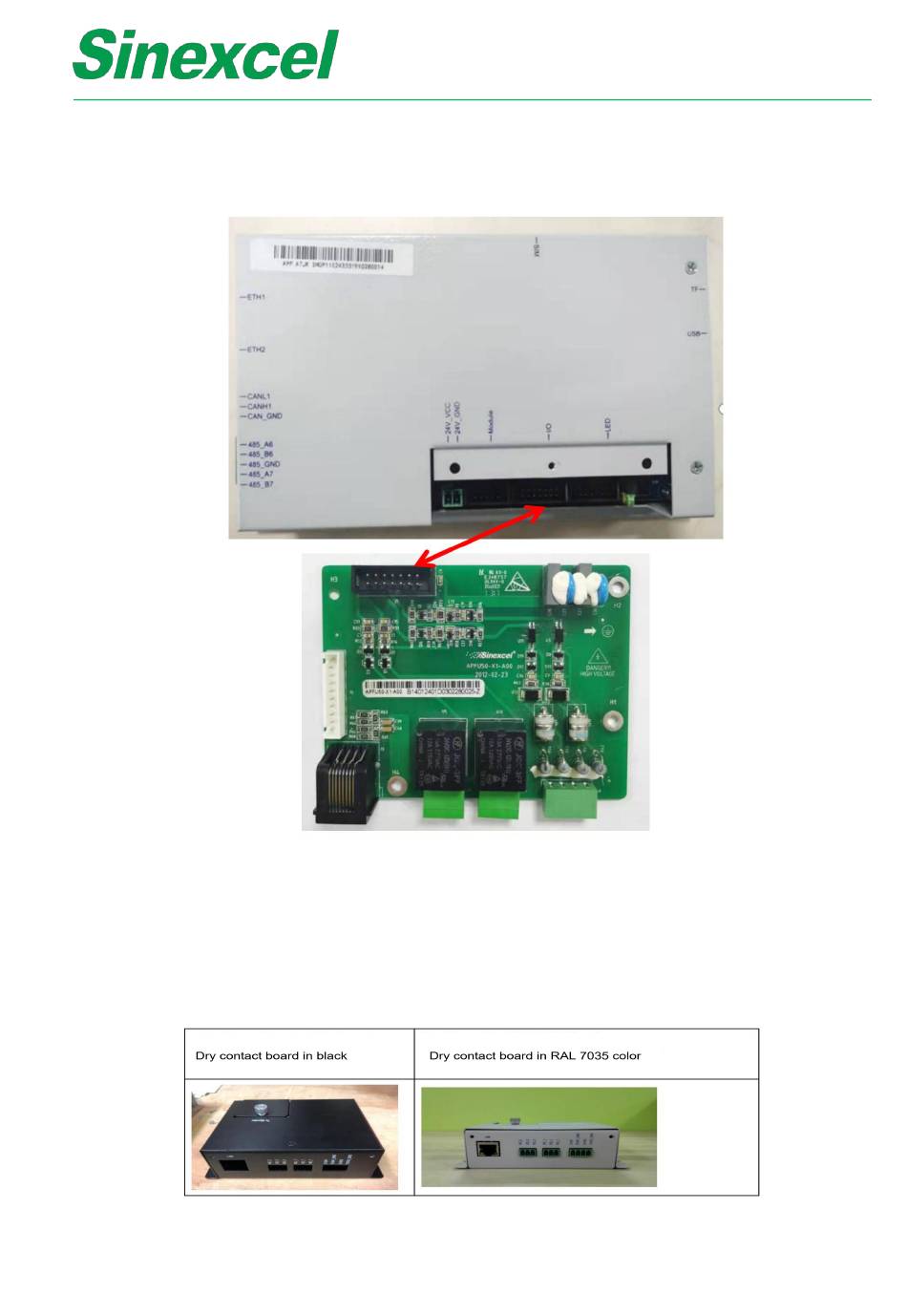

Figure A- 47 Connection to 7-inch HMI
When the dry contact board working with 7-inch HMI, usually the dry contact board is installed outside the
module. Sinexcel offers 2 kinds of boxes for customer to protect the board, one is in black and one is in grey
(RAL 7035)， another one is black color box. Sinexcel is suggests to use black one with SVG module.
Figure A- 48 Dry Contact Board Optional
