2. Input Voltage Configuration
1) Keep the module in standby.
2) Use the Multimeter to measure the Phase Voltage of three-phase and record.
3) Fill in the measurement value in the corresponding items shown below.
4) Back to the Data interface and check the 'Grid Voltage'. Normally its showing Voltage data should be
approximated to the number which you input in procedure 3). For instance, 230.1\230.1\231.5 was
input in 3), so the same may be displayed in Grid Voltage interface.

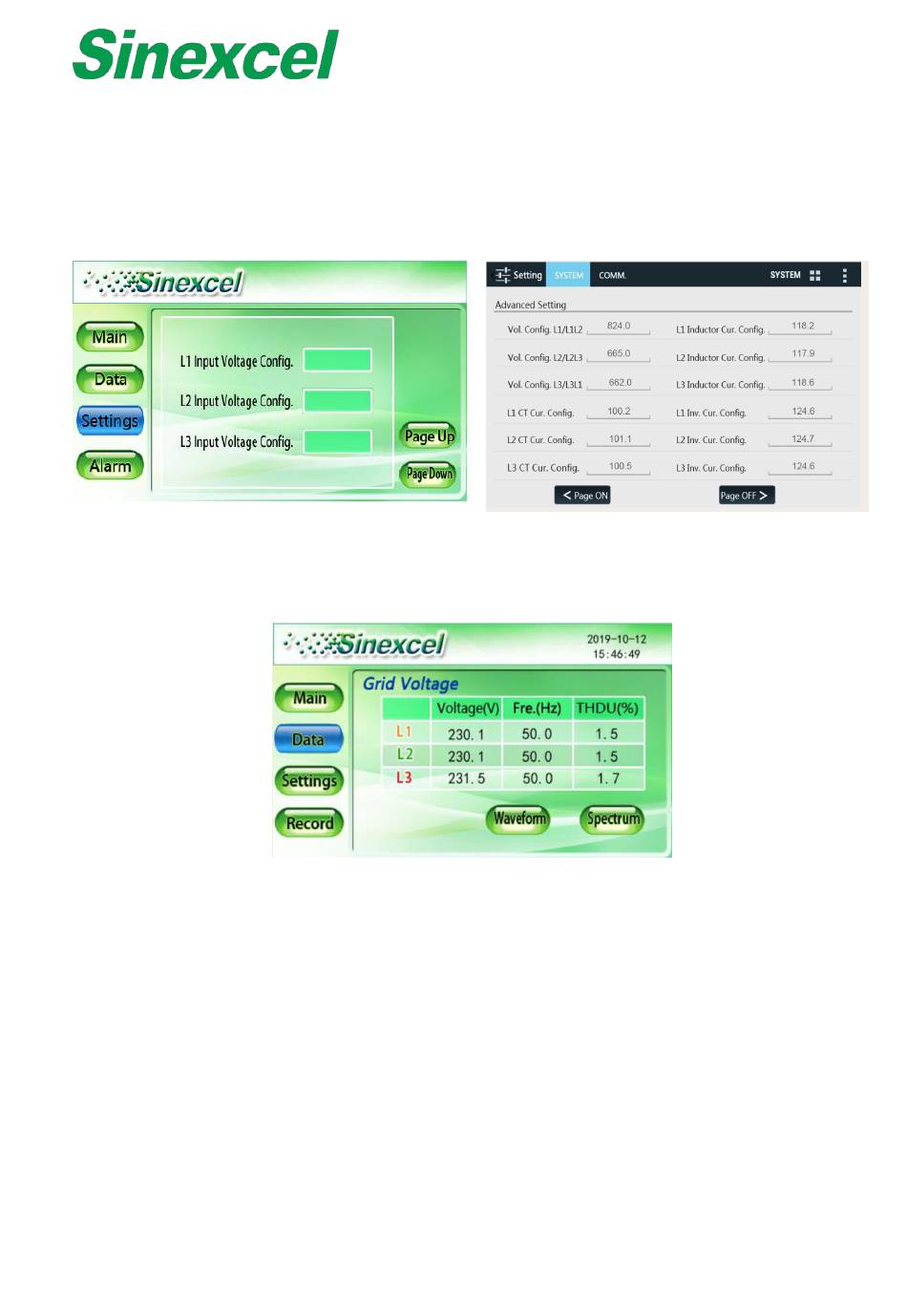

Figure A- 34 Factory Calibration for SVG module
