Sinexcel SVG 100 Ultra User Manual page 46

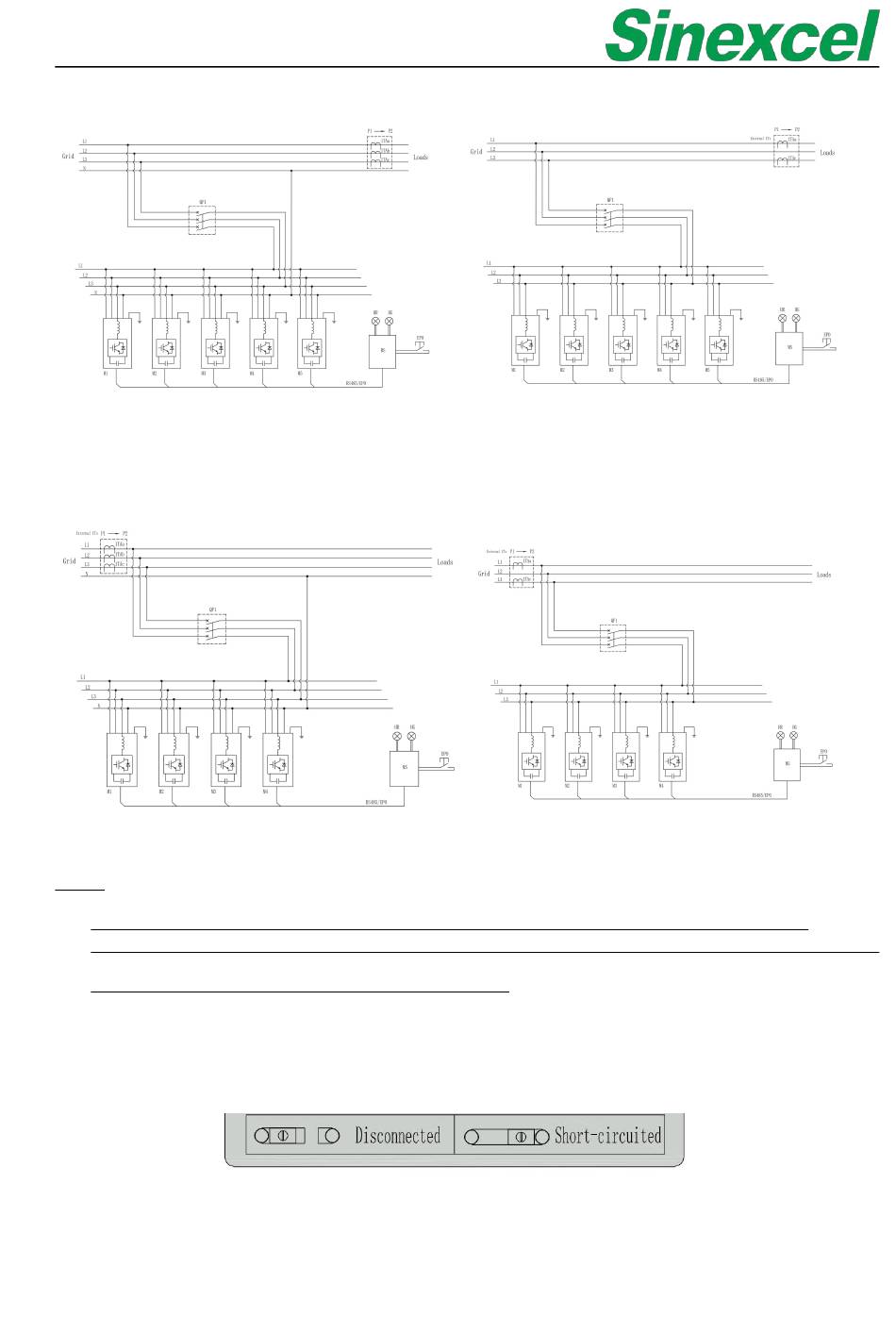

CT CONNECTIS ON THE LOAD SIDE
Figure 2- 23 3-Phase 4-Wiring System
CT CONNECTIS ON THE SUPPLY SIDE
Figure 2- 25 3-Phase 4-Wiring System
Note:
When user chooses Sinexcel cabinet solution, which for all the wiring between modules will be

completed in Sinexcel factory. The only two that user need to connect are external CT and power cables.
During the maintenance, please follow the below steps.

1) Before pulling out the module, please keep the slider No.3 , 8 and 13 of XT1 short-circuited.
2) After the installation of replaced module, please keep the slider No.3 , 8 and 13 of XT1 disconnected.
Figure 2- 24 3-Phase 3-Wiring System
Figure 2- 26 3-Phase 3-Wiring System
Figure 2- 27 Short-circuited
46
