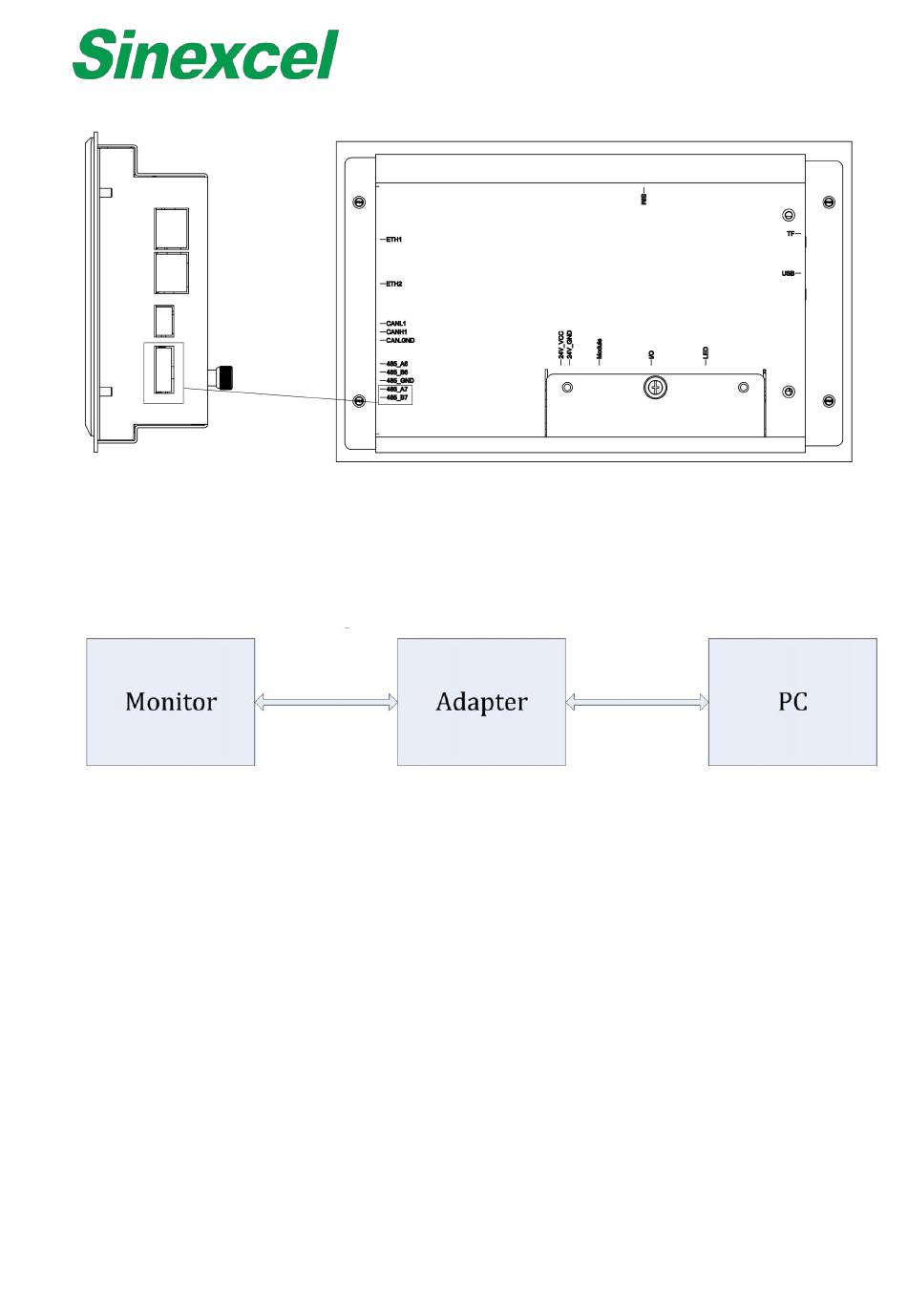

Figure A- 53 7-inch HMI
If were to connect with PC, an adapter is needed, like 485 to 232 adatper or 485 to USB adapter. Monitor
connects with PC via adapter.
Figure A- 54 Connecting
1. Make sure devices are firmly connected.
2. Set the Baud rate on the monitor.
3. Use instrument like modbuspoll for commission. The Baud rate should match the one set on the monitor.
The port should match the one the unit is connected to, which is shown
77
