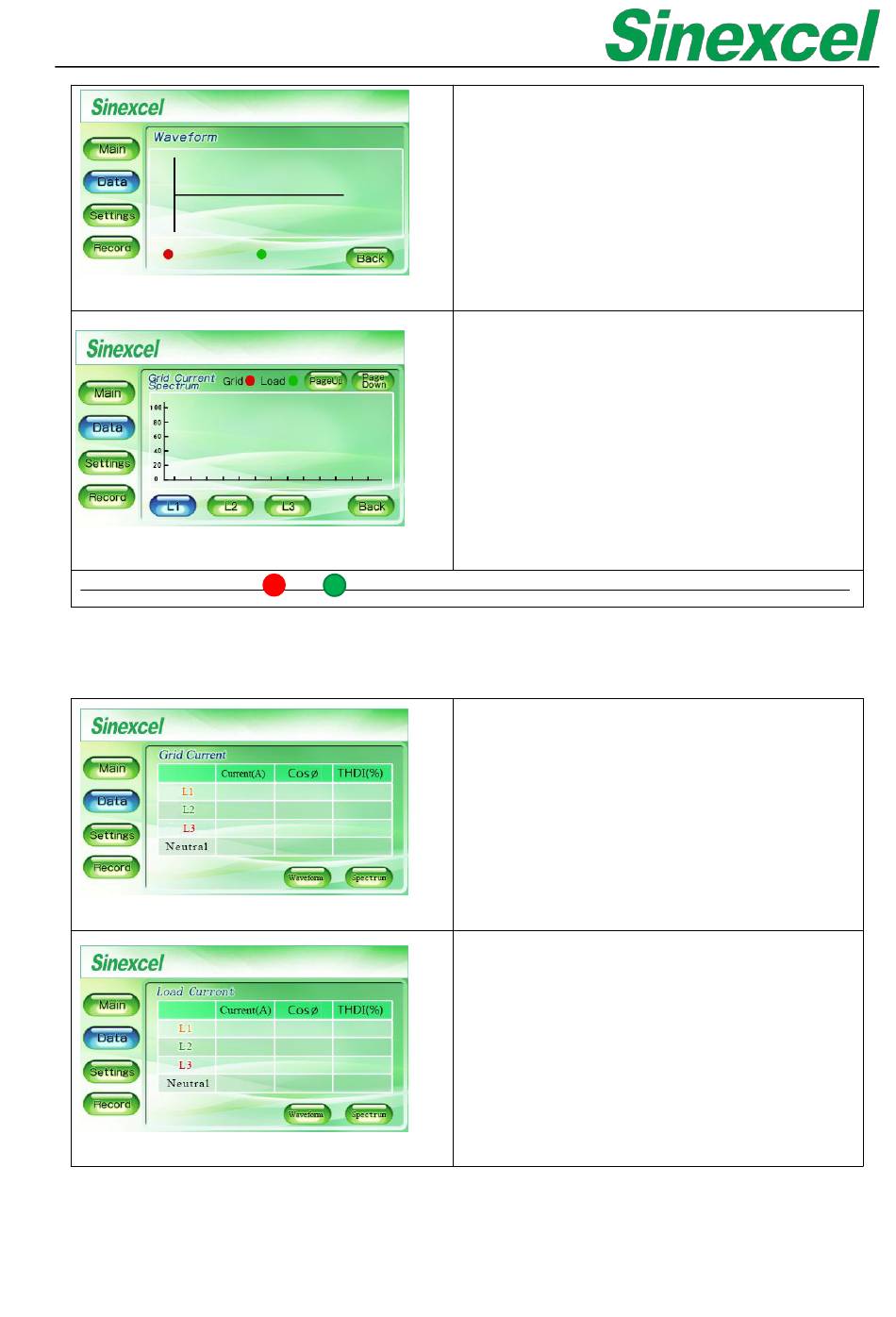

Waveform
Spectrum
Note: Press this button
Click 'Current' option in the data menu that can be real-time see the data of Grid Current, Load Current and
Comp. Current.
Grid Current
Load Current
Click the 'Waveform' on Grid Voltage that can see
waveforms of grid voltage and grid current. The red
line represents grid voltage, and the green line
represents grid current. After watching, click "back"
to back to data interface.
Click the 'Spectrum' on Grid Voltage that can see
spectrum of grid voltage and grid current. The red
spectrum represents grid harmonic, and the green
line represents load harmonic. Click "L1", "L2", "L3",
we can see the spectrum of L1 phase, L2 phase
and L3 phase respectively.
Click "Page Up" or "Page Down" option to see
spectrum with harmonics higher than 13 order or
return to interface of harmonic 1 ~ 13 orders. After
watching, click "back" option to back to data
interface.
or
to choose whatever waveform you want show on the display.
The 'Grid Current' display the data of the
Current(A), cosφ and THDI (%) of L1/L2/L3 and
neutral phase. Also can display Waveform and
Spectrum.
The 'Load Current' display the data of the
Current(A), cosφ and THDI (%) of L1/L2/L3 and
neutral phase. Also can display Waveform and
Spectrum.
52
