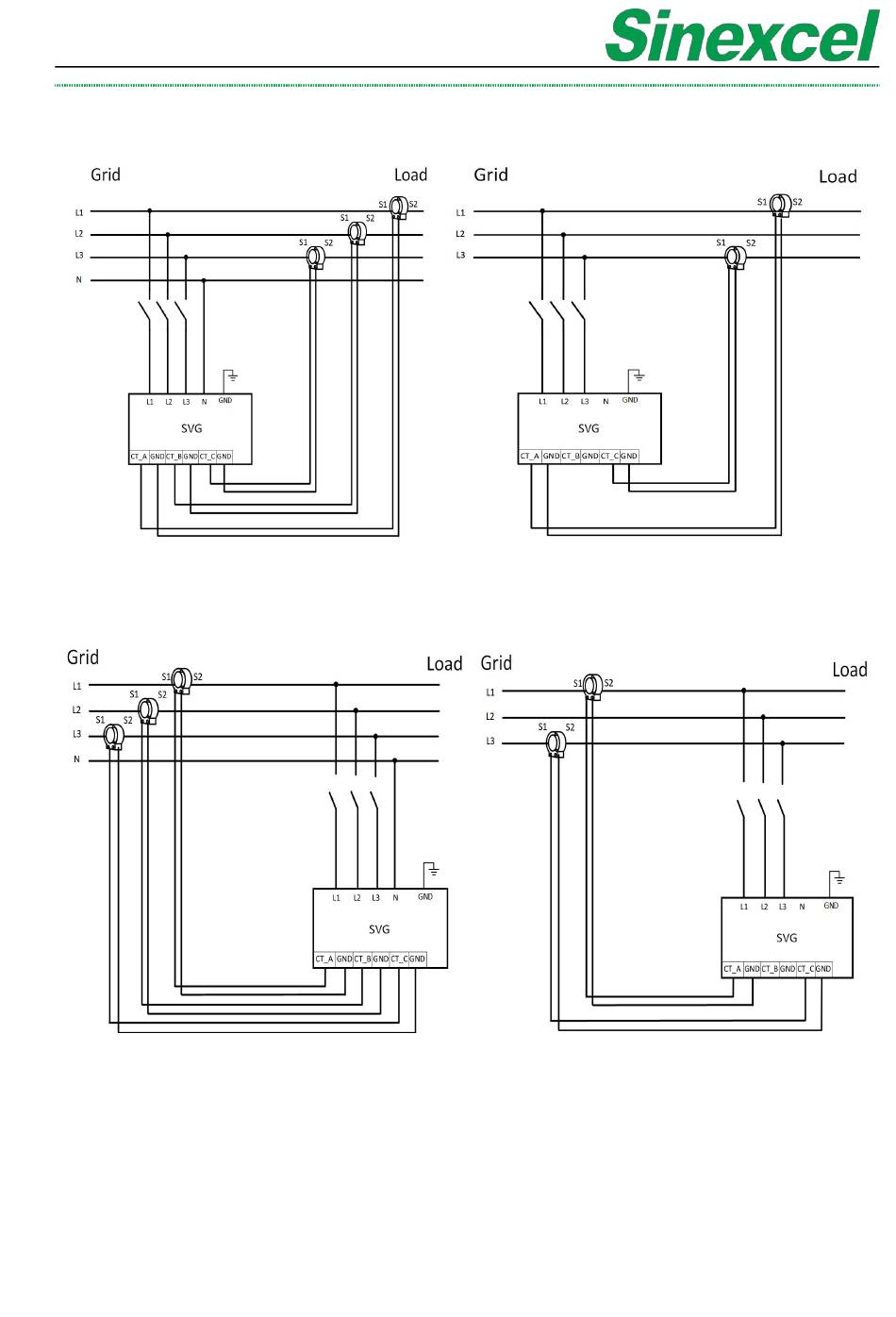

2.5.1.3 SINGLE MODULE
CT CONNECTIS ON THE LOAD SIDE
Figure 2- 14 3-Phase 4-Wiring System
CT CONNECTIS ON THE SUPPLY SIDE
Figure 2- 16 3-Phase 4-Wiring System
Figure 2- 15 3-Phase 3-Wiring System
Figure 2- 17 3-Phase 3-Wiring System
