2.3.5 IP54 CABINET

Corresponding handling facilities are applied for transport through the bottom of the cabinet.
Note: When moving the cabinet from the bottom of its front, disassemble the front and rear panel at the
bottom. When the cabinet is moved to the designated position, reattach the front and rear panel.

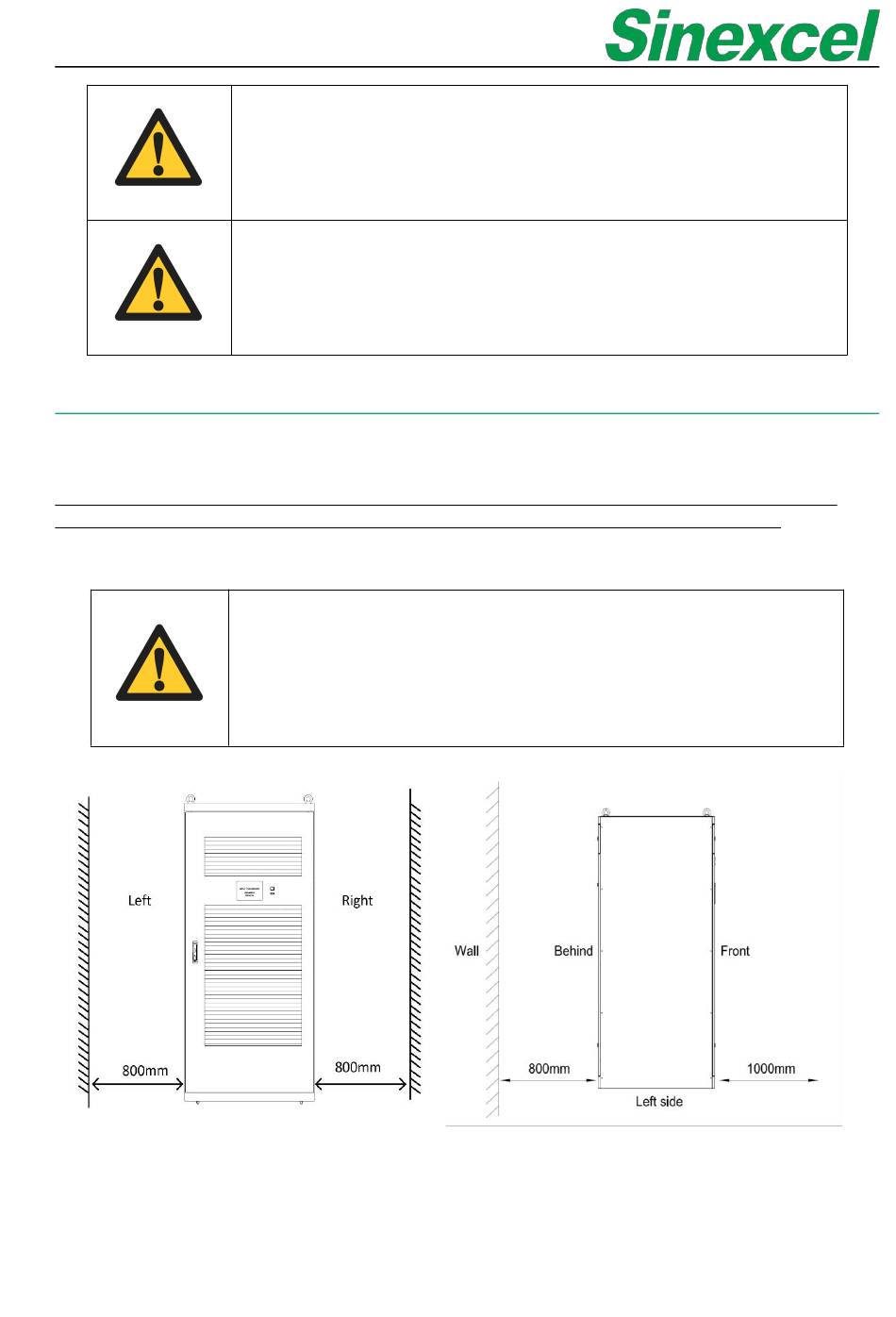

Figure 2- 12 Front side
NOTICE
For the top-vent cabinet, the distance from the front side of the unit to the wall
should be at least 1000mm to allow for module extraction or insertion. Please
contact Sinexcel if other occasions.
NOTICE
For the flexible cabinet, the distance from the top side of the unit to the wall
should be at least 500mm to allow for module extraction or insertion. Please
contact Sinexcel if other occasions.
NOTICE
For the flexible cabinet, the distance from the rear side of the unit to the wall
should be at least 800mm, and the front side should be at least 1000mm from
the wall to allow for module extraction or insertion. Please contact Sinexcel if
other occasions.
Figure 2- 13 Rear side
