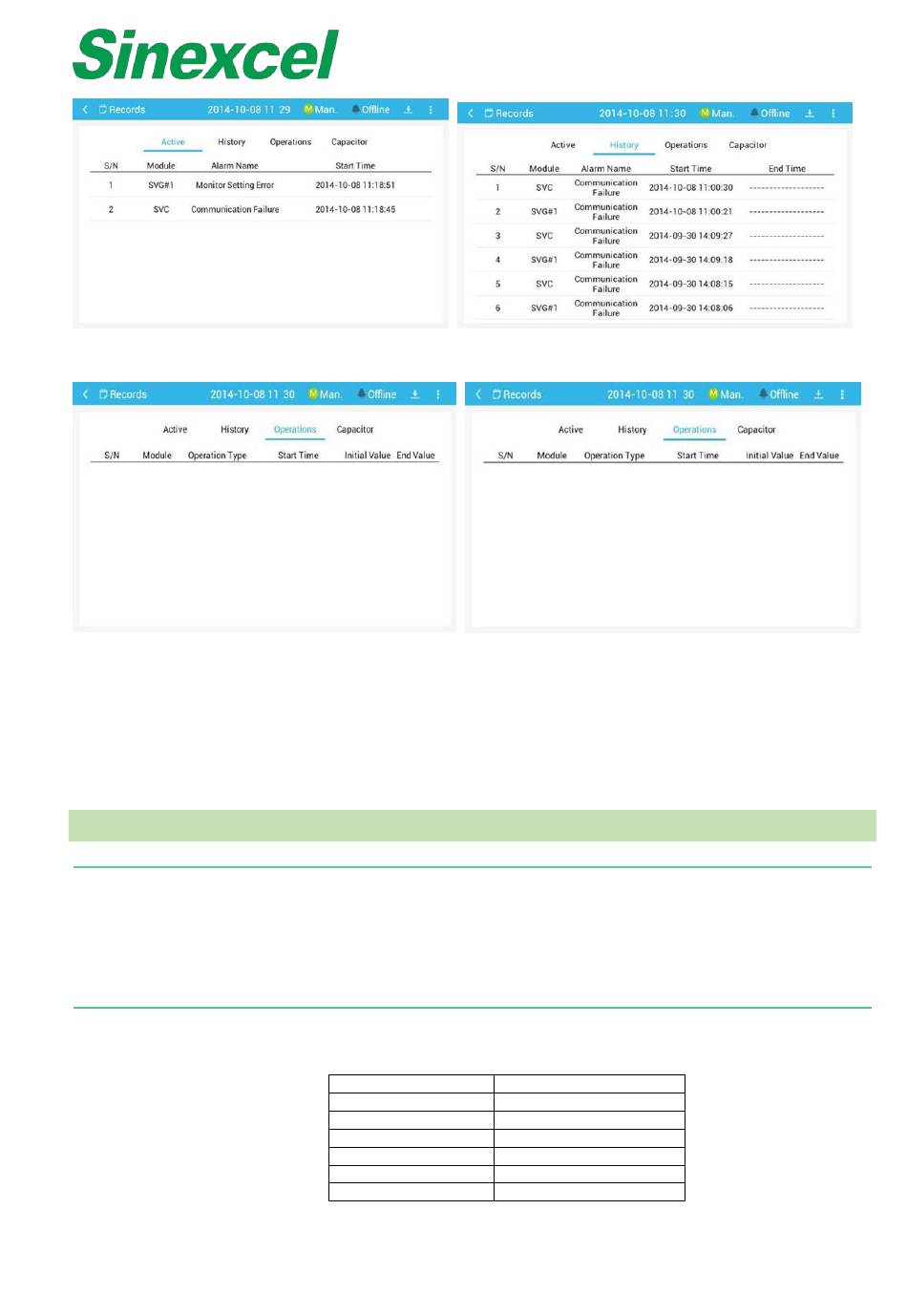

Figure A- 65 Current alarm interface
Figure A- 67 Operating Record Interface
Data management
Via the USB Interface arranged on the controller, users may export recorded data with a USB flash disk. The
exported file belongs to txt file，Open it in Excel on PC for data analysis. After entering the main record
interface, click the "data statistics" option, and then click the "export" option, and the data will be exported.

ICMS-P2TECHNICAL PARAMETERS

BASIC PARAMETERS

The maximum power consumption of the complete machine: 25 W Output nodes of the level: 18 ways, with
DC12V/30mA for each Output nodes of contacts: 120V AC/10A, 220V AC/8A, and 400V AC/3A

MEASUREMENT ACCURACY

Figure A- 66 Historical alarm interface
Figure A- 68 Capacitor switching times and operating time
Table A- 18 ICMS-P2 Measurement Accuracy
Item ACCURACY Value
Voltage ±1%
Current ±1%
Frequency ±1%
Power Factor ±1%
Active Power ±1%
Reactive Power ±1%
