SINEXCEL 4.3-INCH HMI SOFTWARE UPGRADE INSTRUCTION

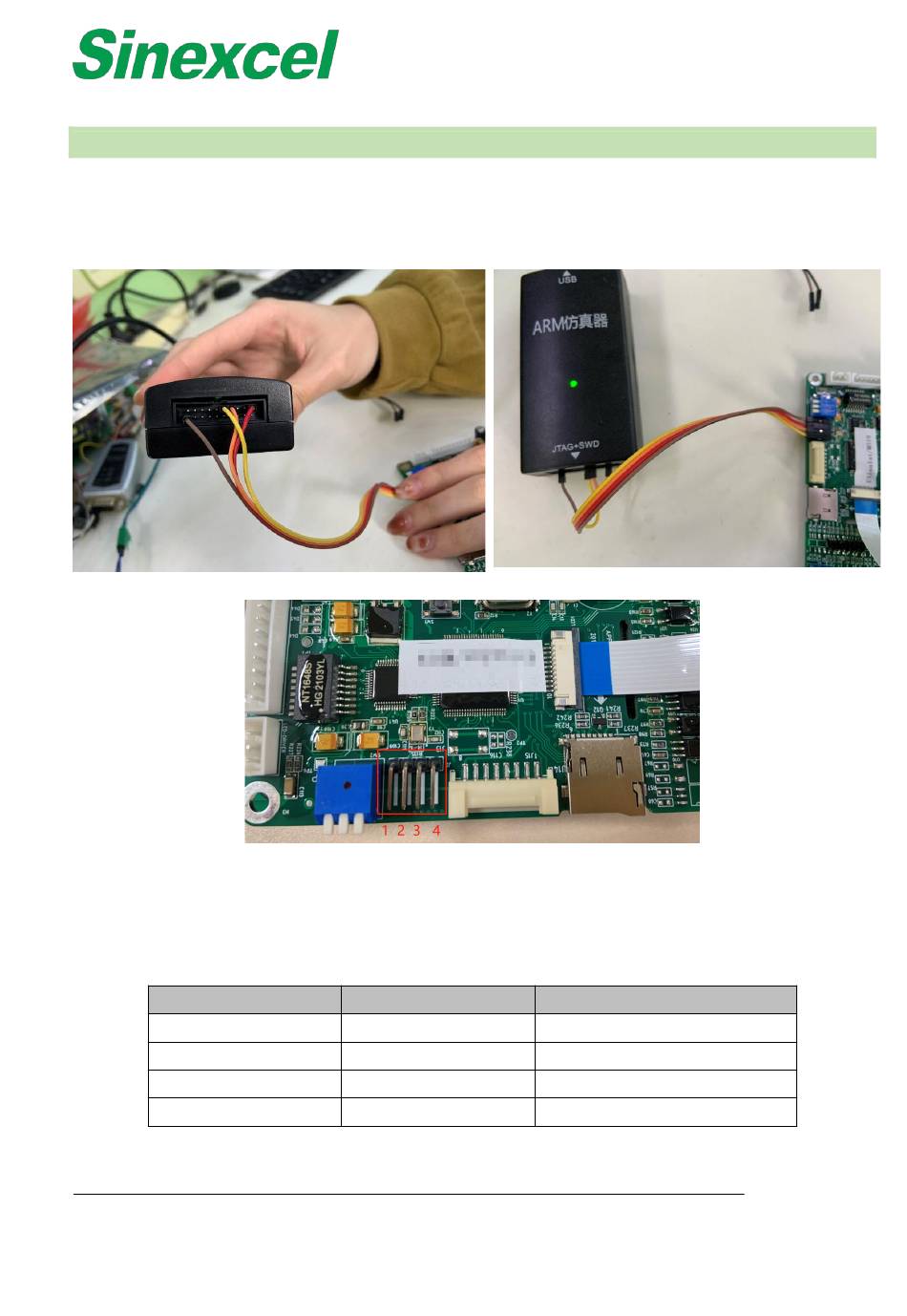

Step 1：
Use DuPont Lines to connect the J-link connector to the PCBA board corresponding terminals
referring to the figure and table below. The green indicator light stays on when the connection complete.
For SWD connector:
PCBA terminals
1
2
3
4
Note ： It doesn't need an additional power supply when updating the Control board (PCBA).
Table A- 5 SWD connector
SWD terminals
GND
VTref/3.3V
SWDIO
SWCLK
36
J-Link terminals Num.
20
1
7
9
