DRY CONTACT BOARD CONNECTION GUIDANCE

CONNECT TO SINGLE LCD MODULE

Dry contact board and LCD control board both have a black 14-pin port and a white 10-pin port.
The black 14-pin port is used to connect the dry contact signal between two boards. If customers need the dry
contact function, they must connect two ports through one 14-pin cable.
The white 10-pin port is used to connect the RJ45 Ethernet port between two boards. If customers need to
use the RJ45 Ethernet port on the dry contact board, they must connect two ports through one 10-pin cable.
Sinexcel will send customers the 14-pin cable and the 10-pin cable if required.

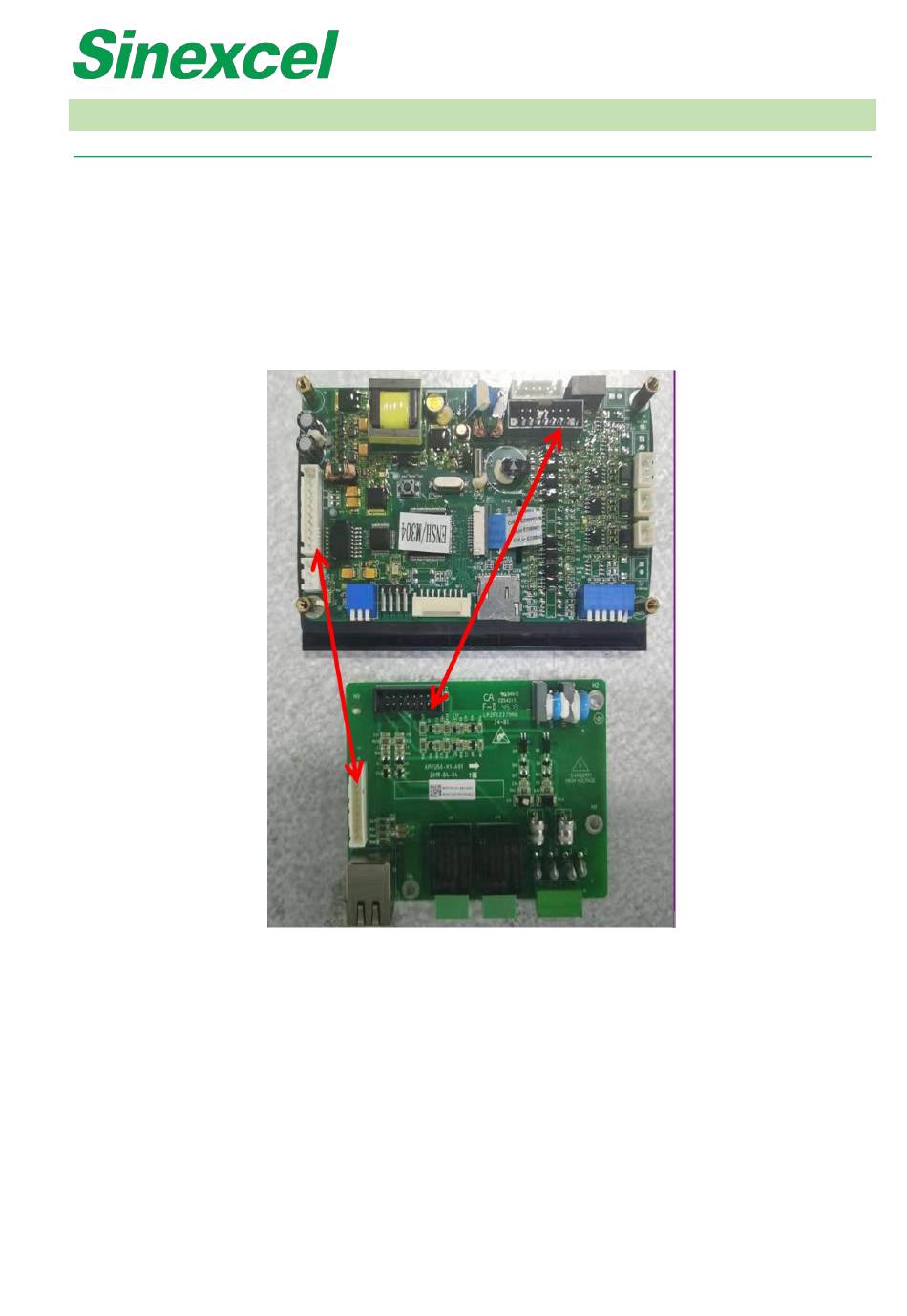

Figure A- 46 Connection to 4.3-inch LCD panel
