Cabinet Ventilation= Module cooling requirement *1.5
For example: User needs to build the 500A IP20 rear cabinet, which need to install the 5*100K Ultra SVG
Cabinet ventilation = (5*165CFM) *1.5=990CFM
Above standards apply to IP2X or IP3X air cooling design cabinet, higher IP level cabinet may need to

add fans to improve heat dissipation. If there are requirements of higher protection class cabinet, please
contact Sinexcel.
Capacity
Cooling (Smart ventilation)

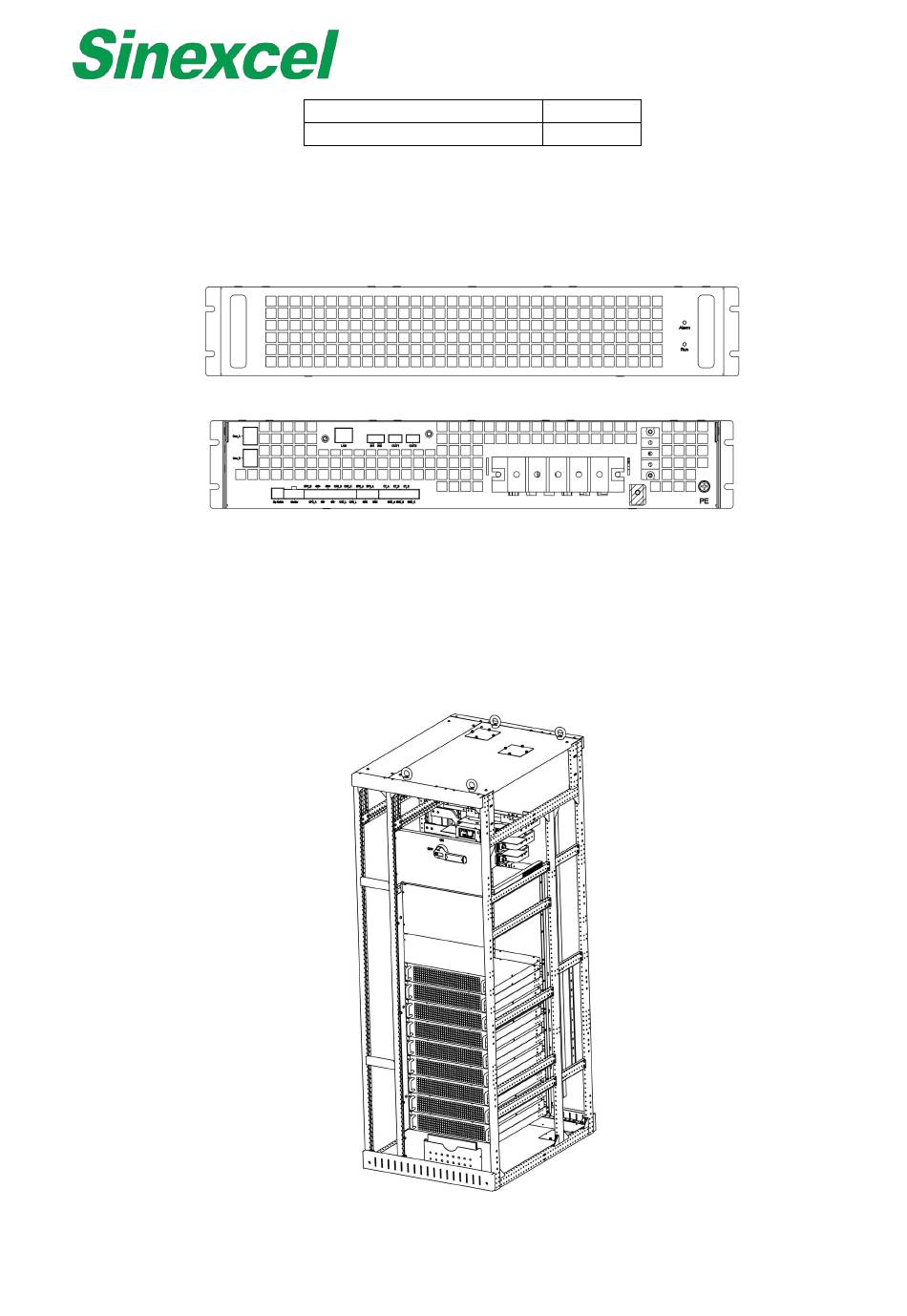

Figure A- 69 SVG ventilation holes on front side (air inlet)
Figure A- 70 SVG ventilation holes on the rear side (air outlet)
Figure A- 71 Structure of Sinexcel Rear Ventilation Cabinet
100K
165CFM
85
