3.2.2 CHECK WHETHER THE DATA IN THE HMI IS MATCHING EXTERNAL METER.

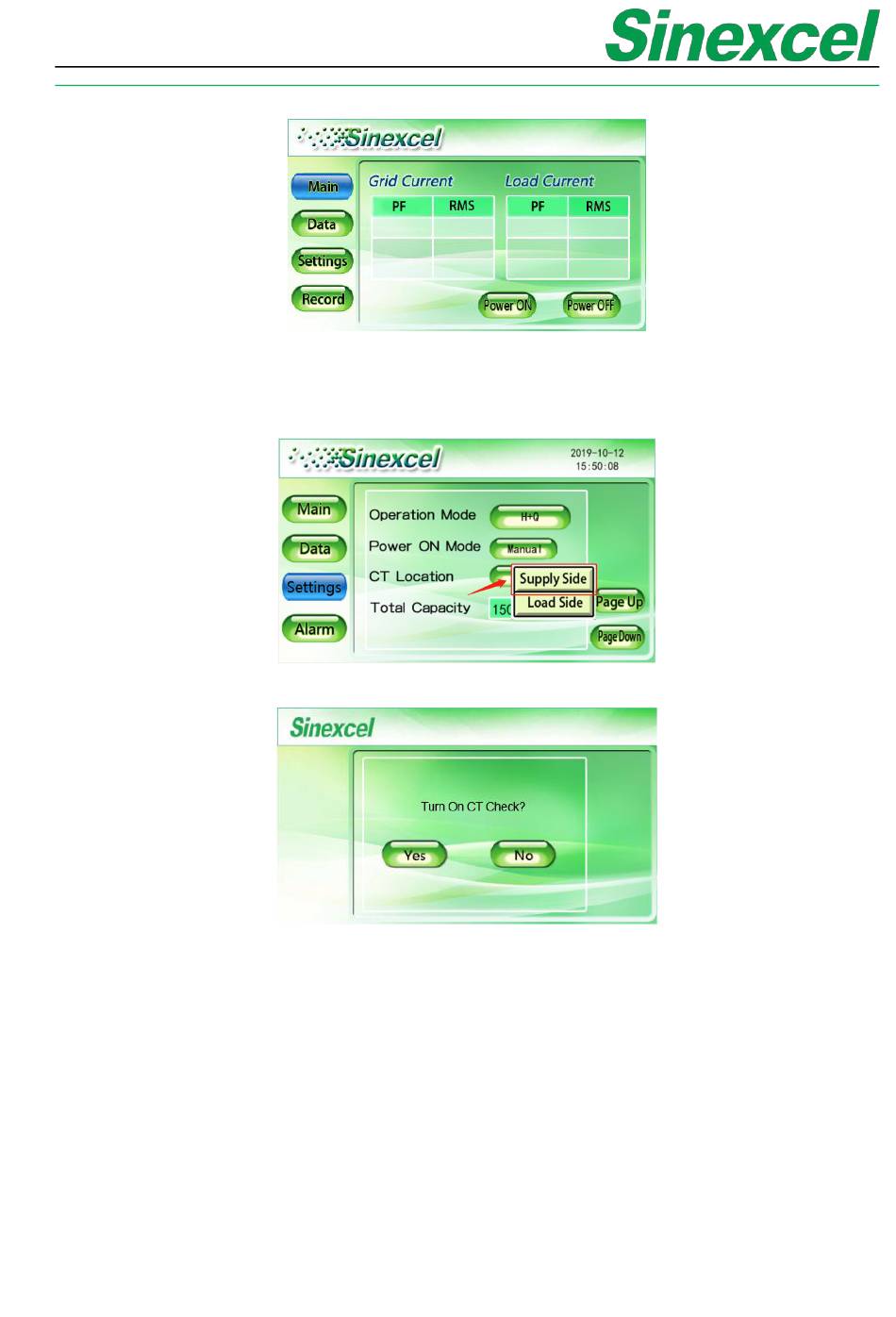

Figure 3- 3 Main page of Ultra SVG
If the data in the HMI is matching external meter, it means the CT wiring probably is correct. The user could
use CT auto check function to double check.
Figure 3- 4 'CT Location'
Figure 3- 5 Turn on CT Check
