CHAPER I PRODUCT DESCRIPTION

1.1 PRODUCT INTRODUCTION

Sinexcel Ultra SVG supports to compensating reactive power, and three-phase unbalancing.
1.1.1 POWER FACTOR CORRECTION
Static Var Generator with power factor correction function are designed to improve power factor in electrical
systems. Power factor is a measure of how efficiently electrical power is being utilized. A low power factor can
result in increased energy losses, reduced system efficiency, and addition costs.
Static Var Generator with power factor compensation work by actively detecting the power factor and injecting
or absorbing reactive power as needed to bring the power factor closer to unity (1.0). By doing so, they help
avoid user avoid the penalty, optimize power usage, reduce energy wastage, and enhance system
performance.

1.2 PRODUCT FEATURES

Modular Design: Sinexcel SVG has a modular design, allowing easy installation and future expansion.
Additional modules can be added to become a bigger compensation system.
High Adaptability: Suitable for the site with poor and unstable power supply, wide operation voltage range,
operation voltage upper limit is up to 456V, and lower limit is 228V (For 400V module).
High Accuracy: Sinexcel SVG Ultra has a high level of accuracy, with a compensation rate of up to 99%,
User-friendly Interface: Sinexcel SVG Ultra features a user-friendly interface that allows users to easily set
parameters and monitor the performance of the system.
Compact Size: Sinexcel SVG Ultra's extreme compact size allows for easy installation and saves on valuable
space in electrical rooms.

1.3 WORKING PRINCIPLE

Sinexcel Ultra Static Var Generator is a device that is used to eliminate reactive power generated in electrical
systems.

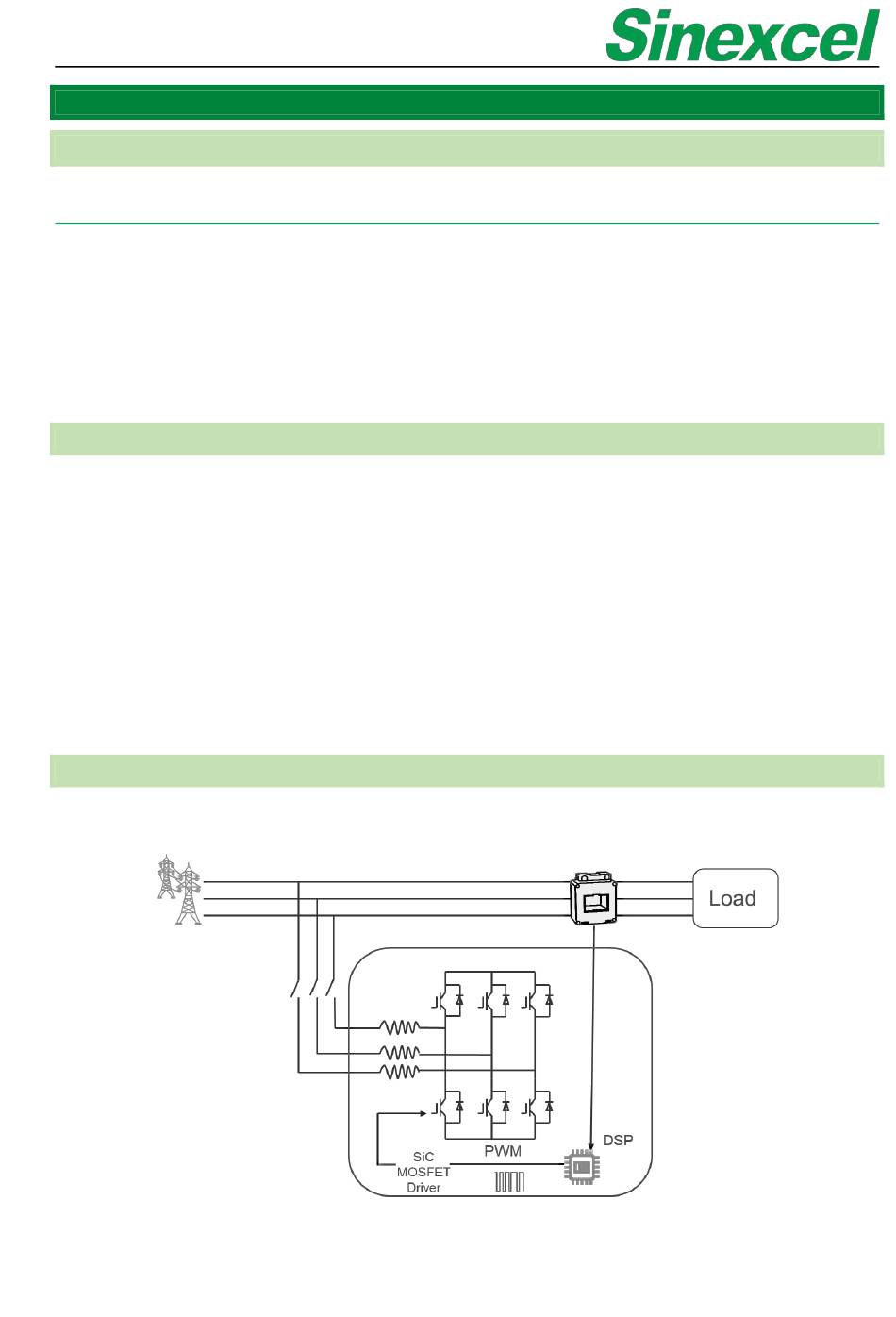

Figure 1- 1 Sinexcel Ultra SVG operation principle
