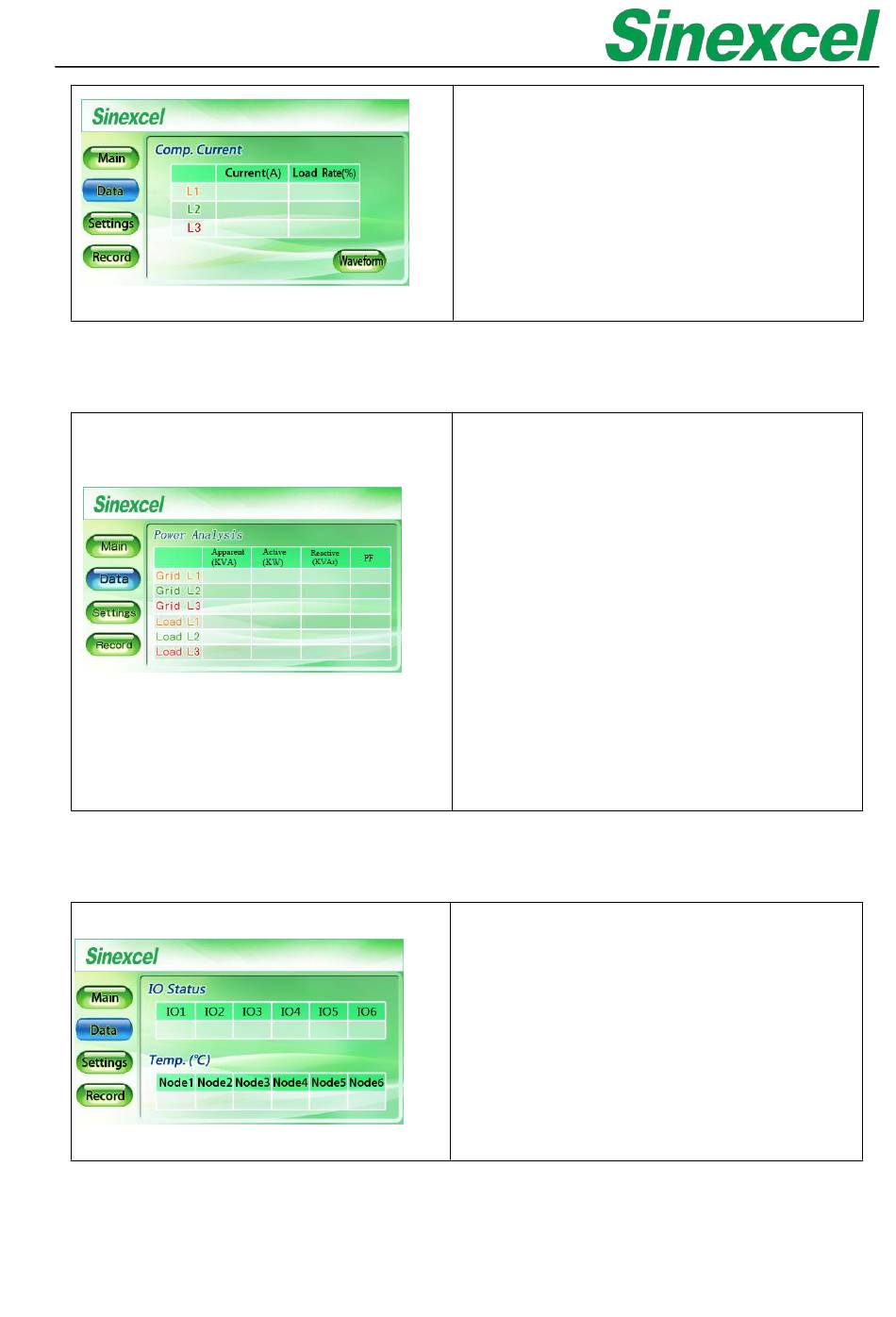

Comp. Current (Compensated Current)
Click 'Power' option in the data menu that can be real-time see the data of Apparent (KVA), Active (KW),
Reactive (KVAr) and PF of Grid L1/L2/L3 and Load L1/L2/L3.
Power Analysis
Click 'IO & Temp.' option in the data menu that can be real-time see the data of IO Status and Temp.
(Celsius).
IO & Temp.
The 'Comp. Current' display the output Current (A)
and Load Rate (%) of L1/L2/L3 phase. Also can
display Waveform and Spectrum.
'Apparent'
The combination of reactive power and true power
is called apparent power, and it is the product of a
circuit's voltage and current, without reference to
phase angle.
'Active'
The power which is actually consumed or utilised in
an AC Circuit is called True power or Active power
or Real power.'Reactive'
'Reactive'
Reactive power is the resultant power in watts of an
AC circuit when the current waveform is out of
phase with the waveform of the voltage, usually by
90 degrees if the load is purely reactive, and is the
result of either capacitive or inductive loads.
The 'IO1~IO6' are used to monitor IO status
information, red means disconnect, green means
connected.
The 'Node1~Node6' are used to monitor machine
inter L1/L2/L3 IGBTs temperature, except for the
300A module, which displays six temperature value,
other models display the first three values,
'Node4/5/6' are reserved.
