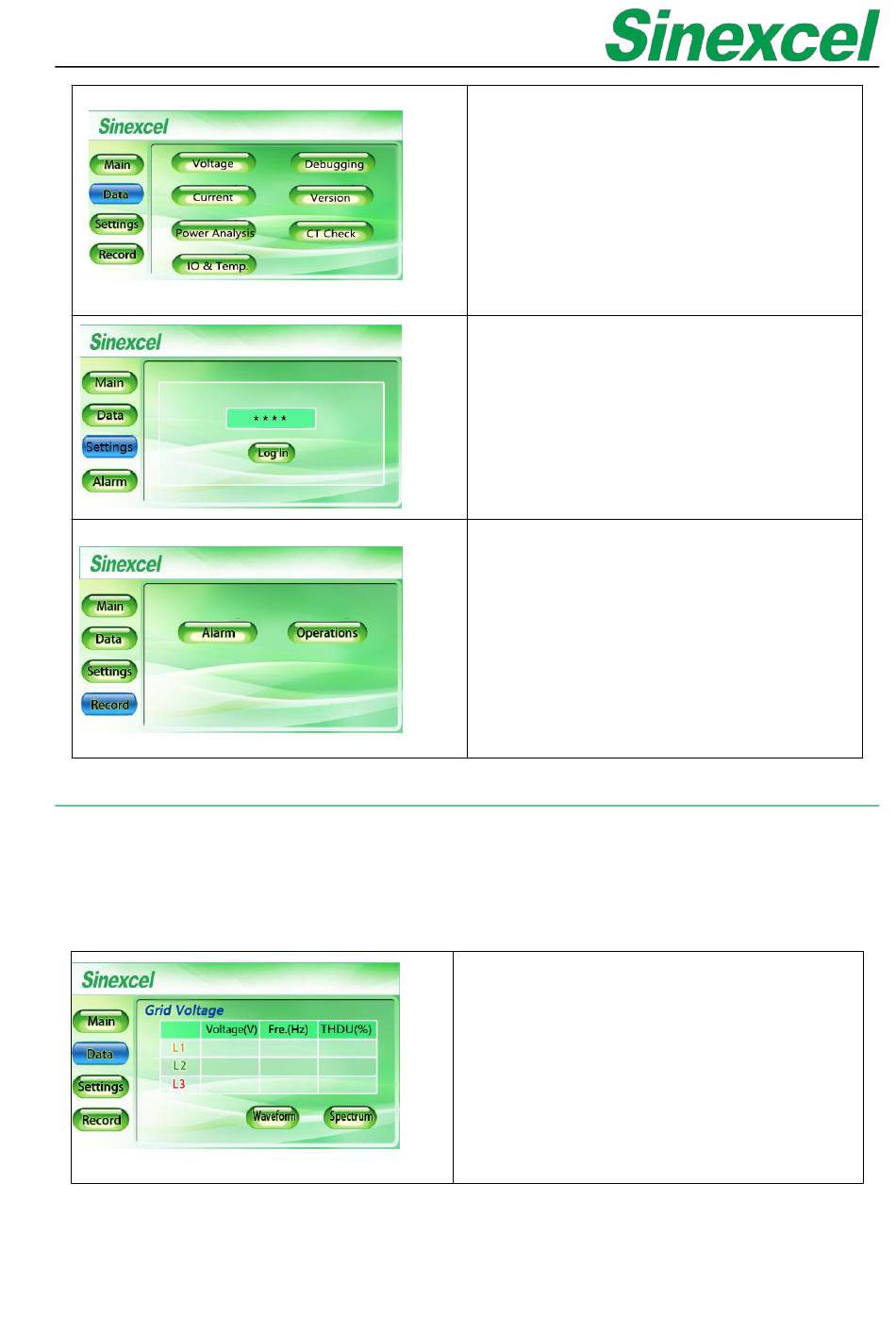

3.1.1 DATA INTERFACE

In the Data interface that can real time online see the data of the Voltage, Current, Power Analysis, IO &
Temp., Debugging and Version and CT check.
Click 'Voltage' option in the data menu that can be real-time see the data of Grid Voltage, Waveform and
Spectrum.
Grid Voltage
Data Page
When user chooses the 'Data Page' that Sinexcel
HMI shows more power quality data, like 'Voltage',
'Current', 'Power Analysis', 'IO & Temp.',
'Debugging', 'Version' and 'CT Check'
Setting Page
After completing the physical installation, it is
necessary to enter the settings interface to
configure the parameters. Once the settings are
complete, it is important to check the
compensation performance of the module.
Record Page
When the module triggers an alarm, Sinexcel
4.3-inch HMI will record and display the
information in real-time on the monitor. The
specific issue causing the fault will be displayed,
making it easier for users to diagnose and resolve
the problem. This feature helps to improve the
efficiency of power management and reduce
downtime caused by equipment failures.
The 'Grid Voltage' display the data of Voltage(V),
Fre.(Hz) and THDu(%) of L1/L2/L3 phase,
L1/L2/L3 corresponding to the three phase.
