1.4.3 WIRING TERMINAL

The wiring terminal is located at the rear side of the module, including power terminal, CT terminal and
communication terminal.
Signal terminal

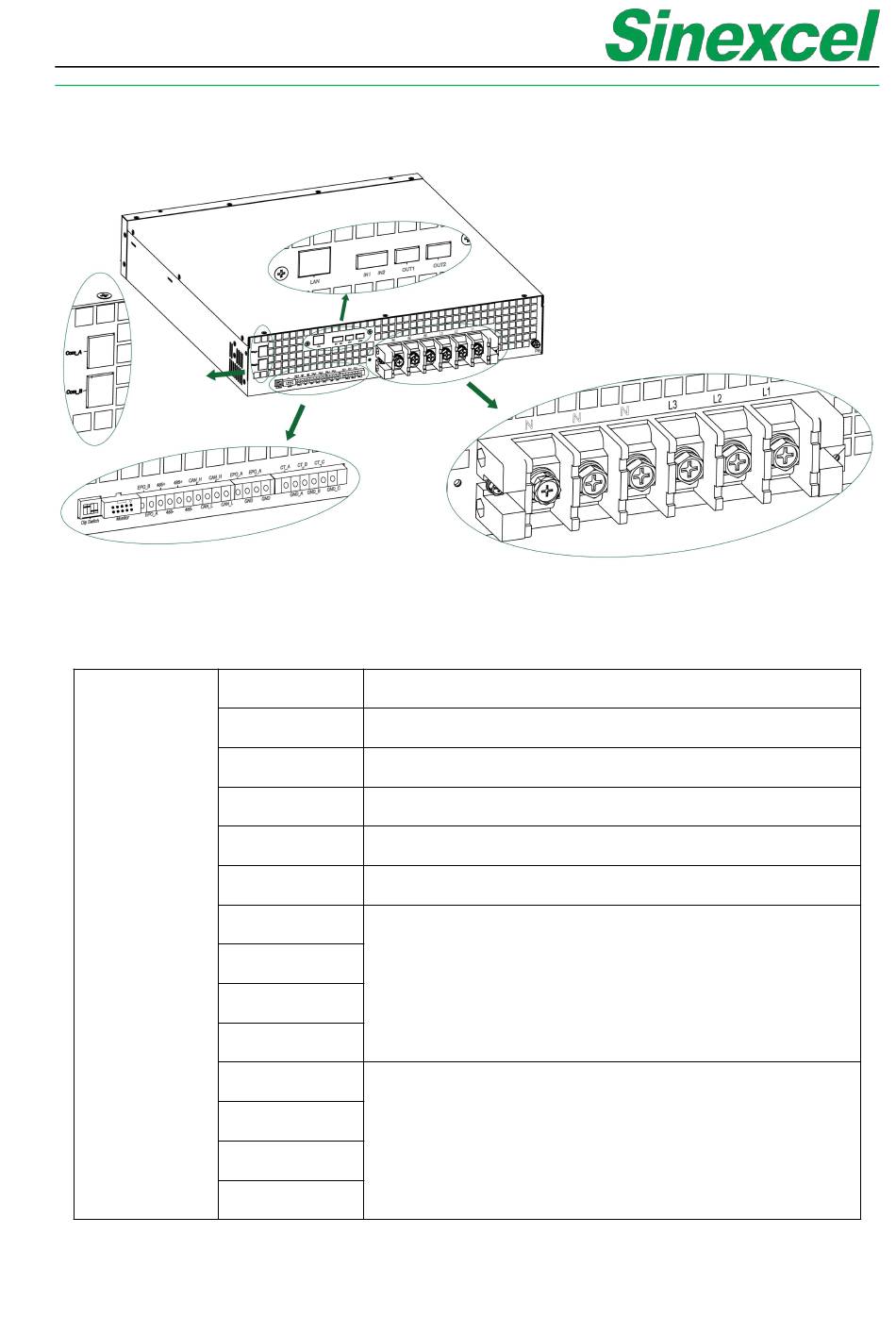

Figure 1- 18 Sinexcel Ultra SVG Terminal
Table 1- 1 Sinexcel Ultra SVG Terminal Definition
COM_A 422 communication port used for multiple module parallel
COM_B 422 communication port used for multiple module parallel
Dip Switch Communication address setting
Monitor 7-inch HMI connecting port
EPO_B EPO button connecting port
EPO_A EPO button connecting port
485+
485-
485 communication port used for communication between
module and 7-inch HMI
485+
485-
CAN_H
CAN_L
CAN communication port used when SVGD or 422
communication is needed
CAN_H
CAN_L
