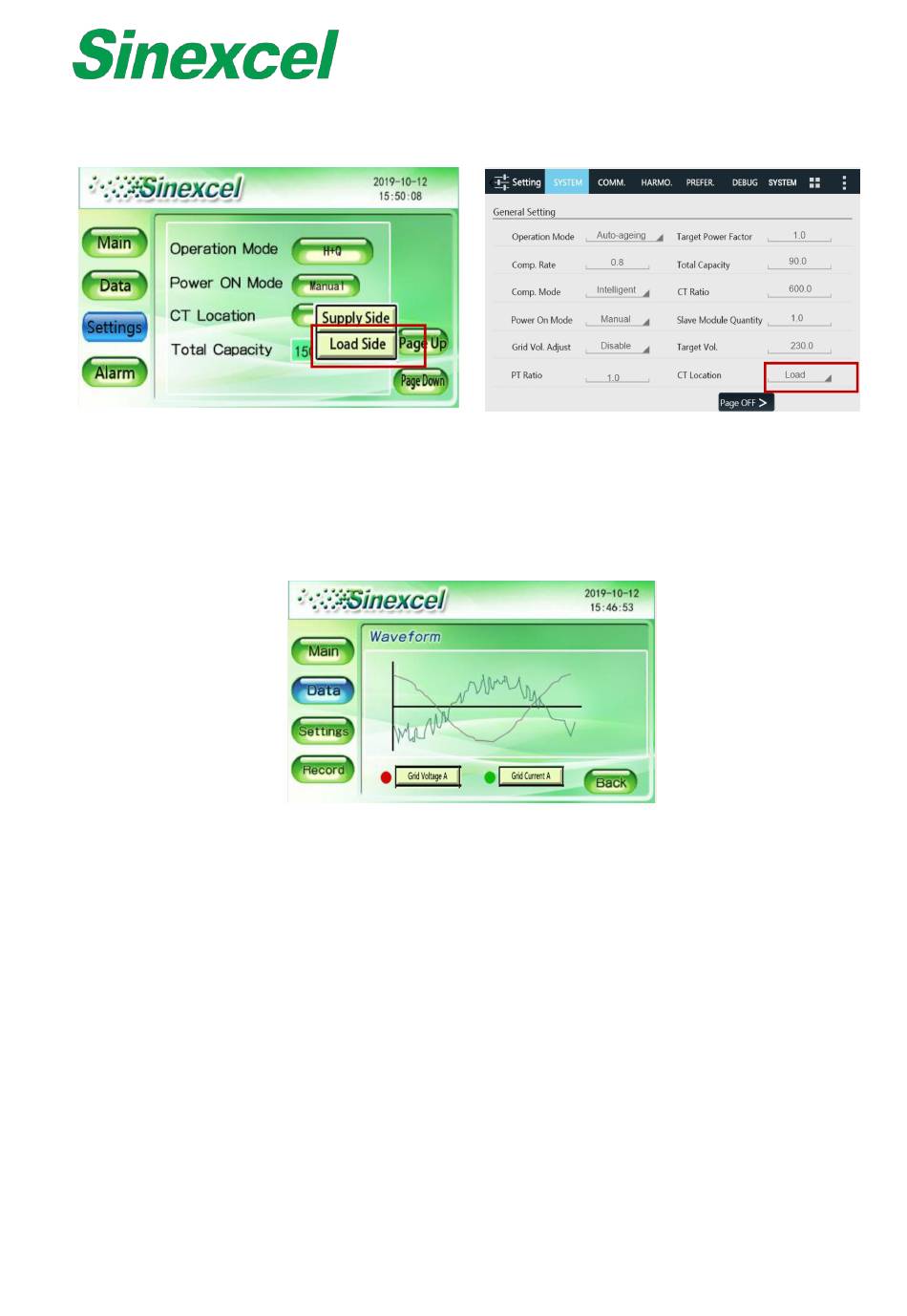

Set the 'CT location' to 'Load Side' and check the exterior CT is connected properly. And please
set the Wire system (Network Config) to '3P4W'.
5) Before testing, it's essential to examine the data interface of the Grid Voltage, the Waveform and
Comp. current. Check if the grid voltage is at normal range, if the Waveform displays normally and is
in positive sequence. And the machine will keep outputting a current under 5A when remaining
standby. And please do the measurements in accordance with the follow orders and processes.
Figure A- 33 Factory Calibration for SVG module
