Step 2: Data Record-Start Recording

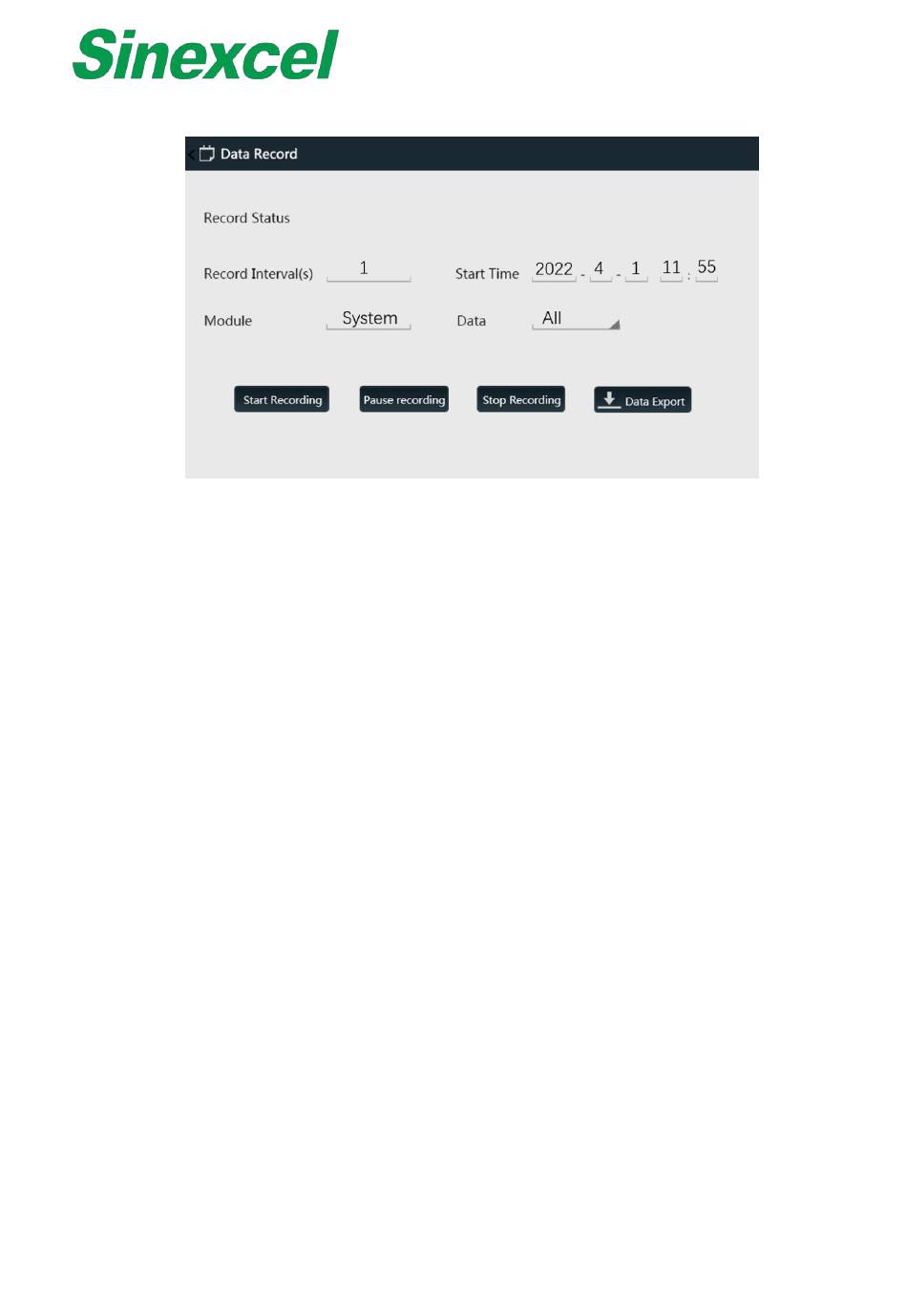

Figure A- 5 Sinexcel 7-inch HMI Data Record-Start Recording
Record Interval(s): 1 (1 second, default setting)
Setting range: 1~70 (1 second to 70 seconds record interval), can be manually set by the customer. The
minimum interval time is 1 second, the maximum interval time is 70 seconds to record a record. A total of 8,
640 pieces of data will be recorded. If the record interval set as 1, then it takes 2.4hours to complete the
recording. If the record interval set as 10, then it takes 24hours to complete the recording. If the record interval
set as 70, then it can record the data for one week.
The recording data will be stored in the HMI, the previous data will be overwritten after the next recording is
restarted
Start Time: It can be set manually by the customer, and the current time will be displayed by default
Customers can choose to start data collection from the current time, or set a specific collection demand time
Module: Module (# 1~ #16)/System, can select records for individual modules or data records for the entire
system.
Data: All/Only Analog/Only Setting; "All": including analog data and setting parameters
Data recorded can be classified into two categories: analog (current, voltage, PF, THDI, etc.) and setting
parameters.
Analog data include: L1/L2/L3 three-phase grid current, three-phase grid voltage, three-phase grid THDI,
three-phase grid THDV, three-phase grid PF, three phase grid frequency, three-phase grid active/reactive/
apparent power; L1/L2/L3 three-phase load current, three-phase load voltage, three- phase load THDI,
three-phase load THDV, three-phase load PF, three-phase load frequency; L1/L2/L3 three-phase
compensation current, three-phase compensation load rate, temperature, etc.
Setting parameters include: all settings accessible with 080808 password (operation mode, target power
factor, compensation rate, total capacity, CT transformation ratio, phase angle offset, , etc.).
