Figure 2- 8 Front side Figure 2- 9 Rear side

2.3.4 TOP-VENT CABINE

Handling facilities are applied for transport through the 4 hanging rings on the top of the cabinet;
Corresponding handling facilities are applied for transport through the bottom of the cabinet.
Note: When moving the cabinet from the bottom of its front, disassemble the front and rear panel at the
bottom. When the cabinet is moved to the designated position, reattach the front and rear panel.
Sinexcel top-vent cabinet is free-standing cabinet with 4 bearing supports on the ground.

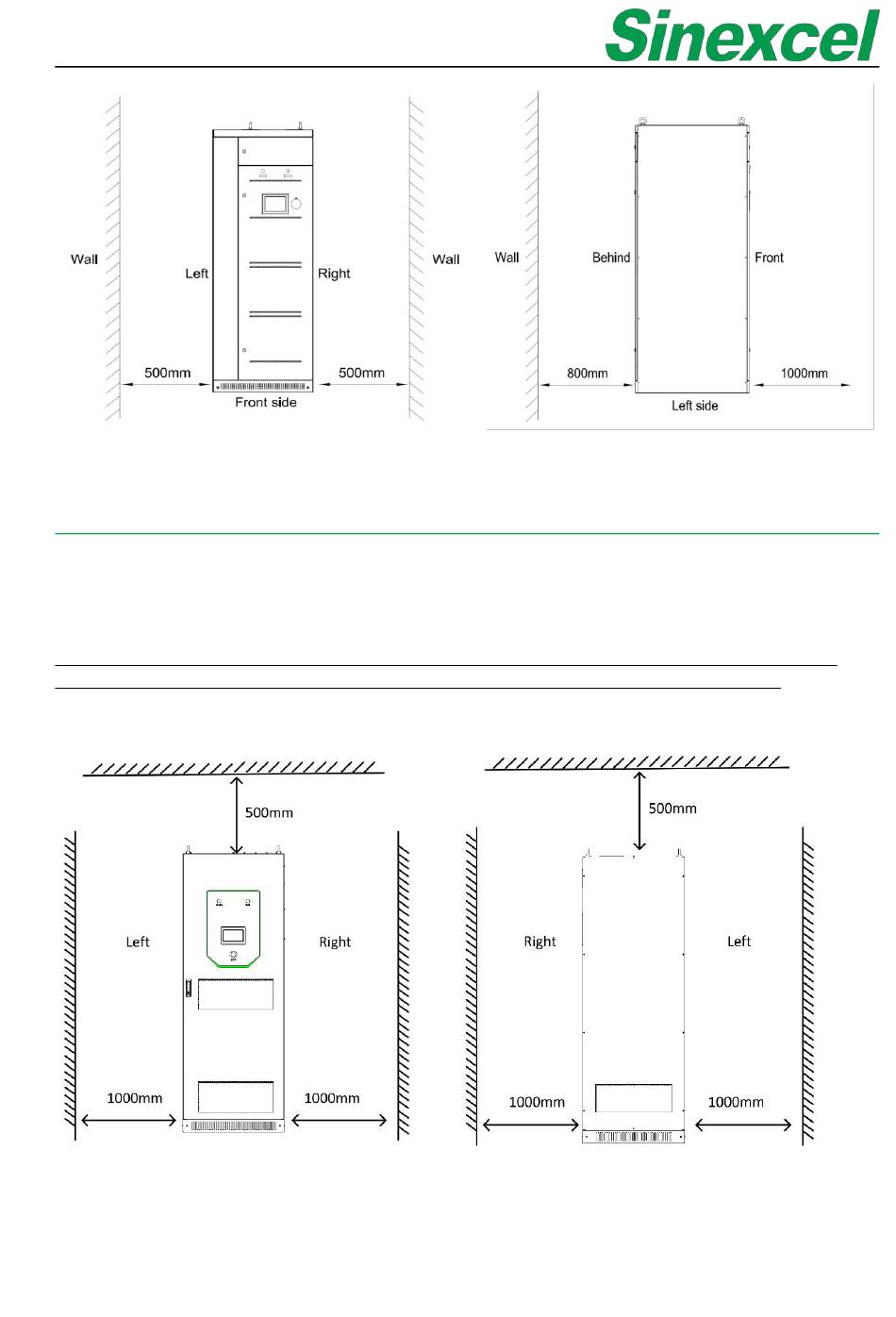

Figure 2- 10 Front side Figure 2- 11 Rear side
