Sinexcel SVG 100 Ultra User Manual page 64

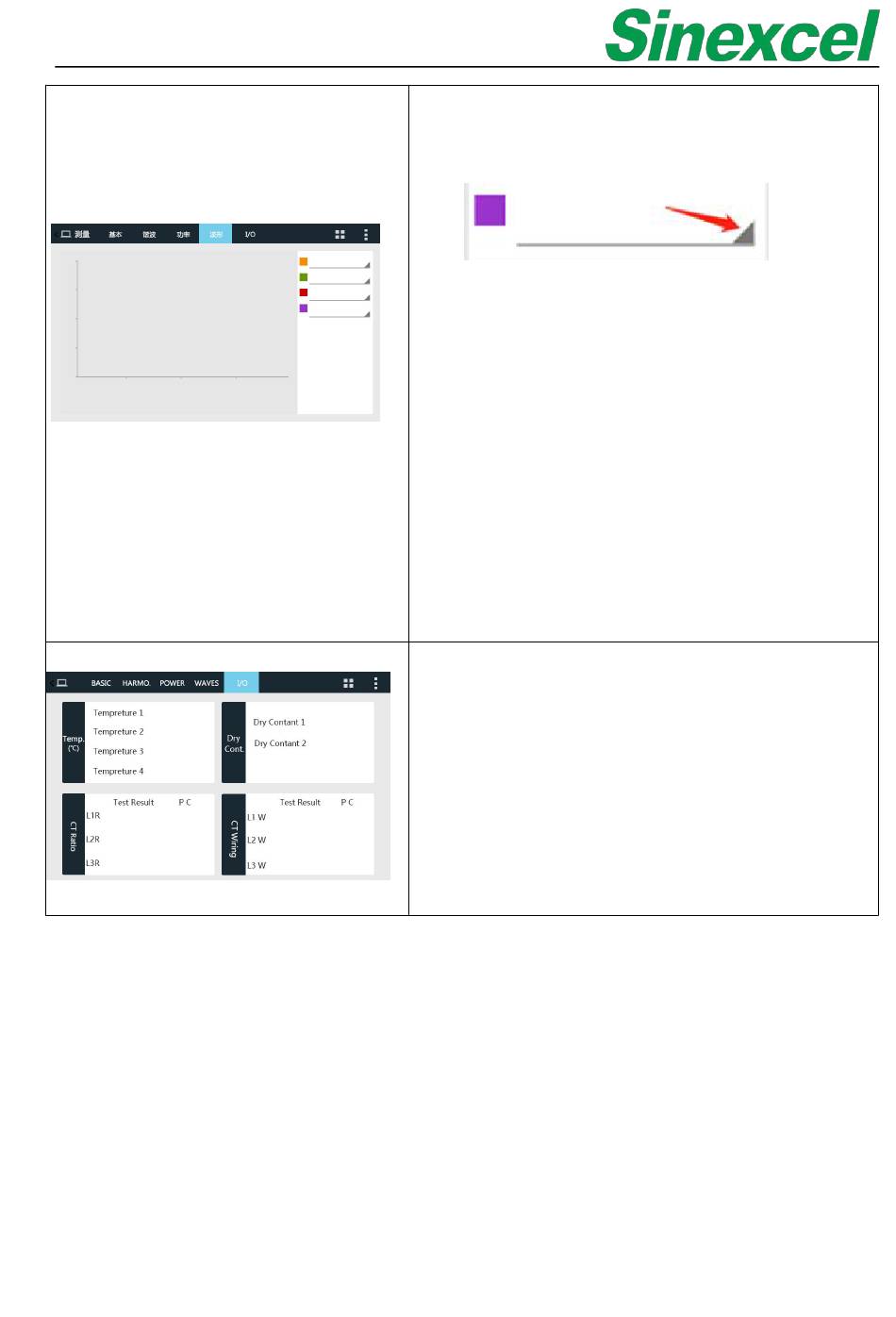

Waves
I/O
The 'WAVES' can be real-time see all current and voltage
waveform of each phase.
Display four kinds of waveforms, Comp. I L1/L2/L3, Grid I
L1/L2/L3, Grid V L1/L2/L3
Click
menu, select the waveform displayed in the color.
'Comp. I L1/L2/L3' refers to the L1/L2/L3 phase
compensate current waveform, each time choose one
phase.
'Grid. I L1/L2/L3' refers to the L1/L2/L3 phase current
waveform after compensating, each time choose one
phase.
'Grid. V L1/L2/L3' refers to the L1/L2/L3 phase voltage
waveform after compensating, each time choose one
phase.
'Load. I L1/L2/L3' refers to the L1/L2/L3 phase current
waveform beform compensating, each time choose one
phase.
The 'I/O' can be real-time observe module's inner highest
temperature of L1/L2/L3 phase and Air inlet.
'Temperature 1/2/3'
temperature of L1/L2/L3 phase (dry contact is useless).
'Temperature 4' means the temperature of Air inlet.(This
function is only for PRO version module)
'Dry Content 1/2' means The state of the dry contact is
normal when the dry contact board is externally connected.
7
and Load I
means module inner
L1/L2/L3.
, pop-up
highest
