The working principle of Sinexcel Ultra SVG involves the use of an external Current Transformer (CT) to
detect the load current. The detected current will be processed by a Digital Signal Processor (DSP), which
identifies whether the load current has any reactive power components or not.
If reactive power is detected, the DSP calculates the reactive content and sends a signal to the SiC Mosfet to
generate compensating current. The compensating current has the same magnitude as the reactive power
current but in the opposite direction, thereby canceling out the reactive power. This process helps to improve
the power factor in the system and the efficiency of the electrical system.
Sinexcel Ultra SVG works by using advanced signal processing techniques to identify and eliminate reactive
power in electrical systems, which helps to ensure the smooth operation of electrical equipment and improves
the overall efficiency of electrical systems.

1.4 PRODUCT DETAILS

1.4.1 PRODUCT DRAWINGS__220V CE SVG MODULE
Sinexcel Static Var Generator is divided into two types according to installation method. One is wall mounted
type, which can be hung on the wall. The other is rack mounted type and can be installed in the cabinet.
Please consult Sinexcel product engineer for details of cabinet.
Please refer to Fig. 1-2 for the appearance and size of Ultra CE 220V 15kVAr wall-mounted type.
Please refer to Fig. 1-3 for the appearance and size of Ultra CE 220V 15kVAr rack-mounted type.
Please refer to Fig. 1-4 for the appearance and size of Ultra CE 220V 25kVAr wall-mounted type.
Please refer to Fig. 1-5 for the appearance and size of Ultra CE 220V 25kVAr rack-mounted type.
Please refer to Fig. 1-6 for the appearance and size of Ultra CE 220V 50kVAr wall-mounted type.
Please refer to Fig. 1-7 for the appearance and size of Ultra CE 220V 50kVAr rack-mounted type.
Please refer to Fig. 1-8 for the appearance and size of Ultra CE 220V 100kVAr wall-mounted type.
Please refer to Fig. 1-9 for the appearance and size of Ultra CE 220V 100kVAr rack-mounted type.
Note: Sinexcel Ultra series, the standard wall mounted is with LCD, the standard rack mounted is with LED. If
needs other type module, please discuss with Sinexcel's engineer.

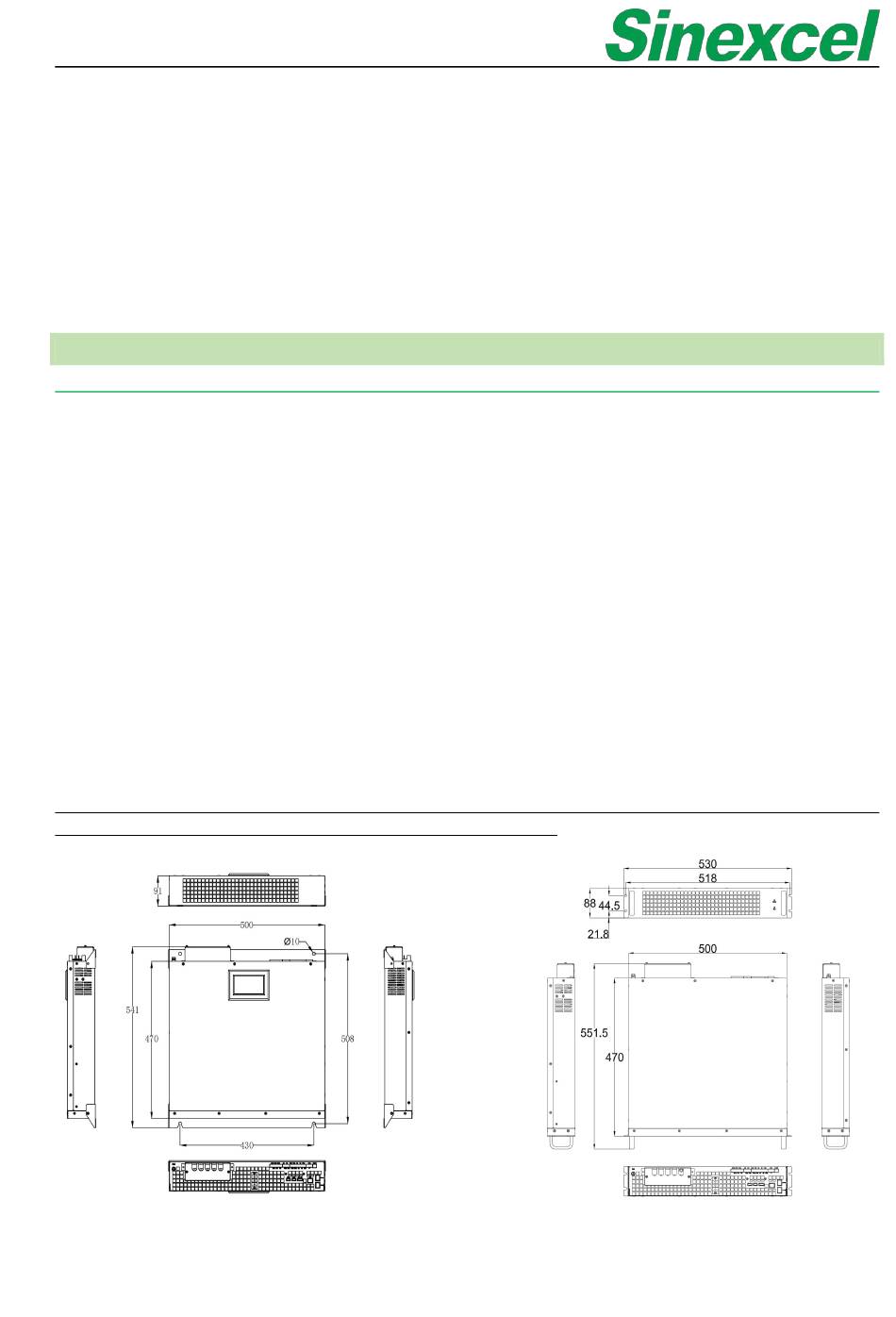

Figure 1- 2 Sinexcel Ultra CE 220V 15kVAr wall-mounted Figure 1- 3 Sinexcel Ultra CE 220V 15kVAr rack-mounted
