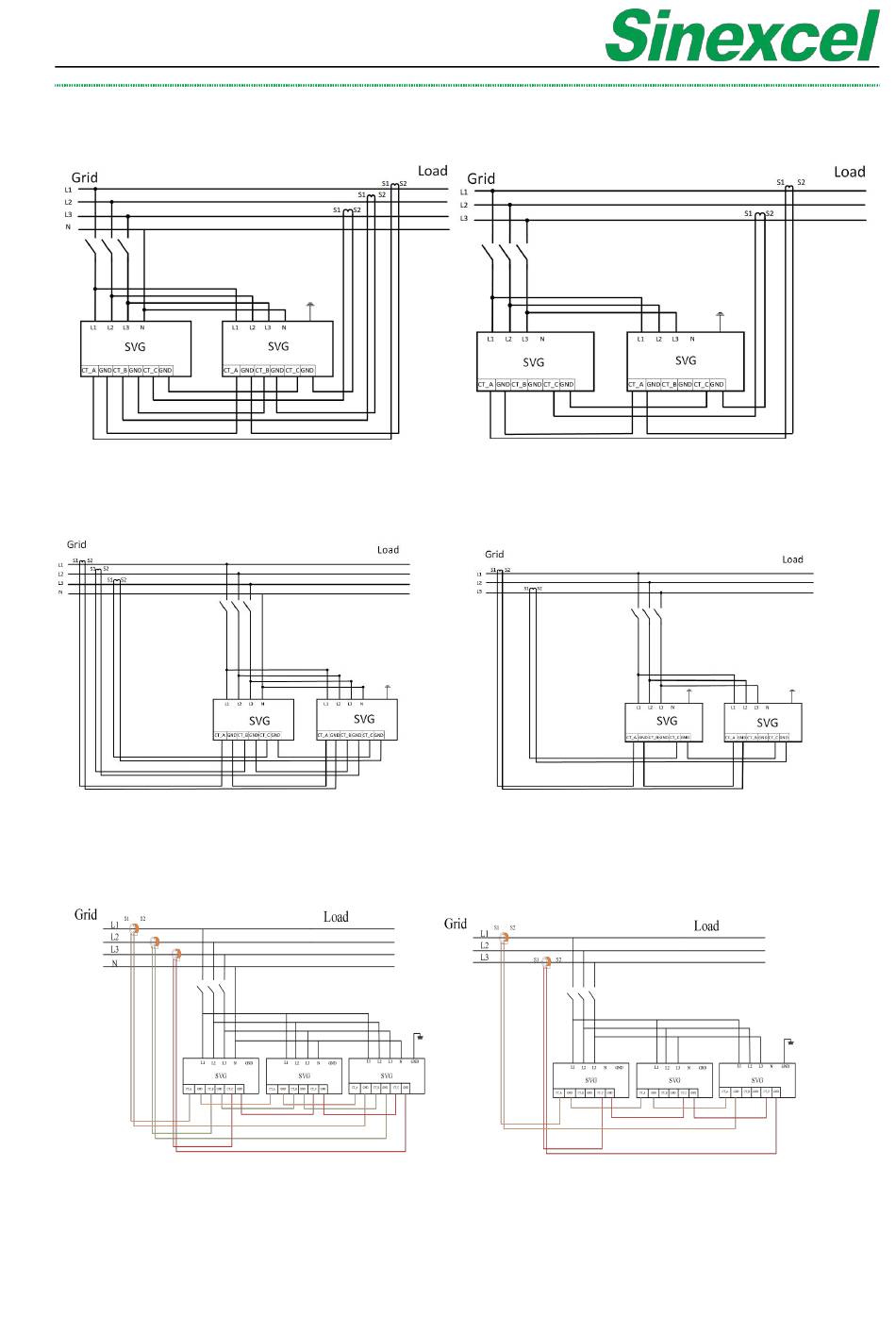

2.5.1.4 MULTIPLE MODULES
CT CONNECTIS ON THE LOAD SIDE
Figure 2- 18 3-Phase 4-Wiring System
Figure 2- 19 3-Phase 3-Wiring System
CT CONNECTIS ON THE SUPPLY SIDE
Figure 2- 20 3-Phase 4-Wiring System
Figure 2- 21 3-Phase 3-Wiring System
CT CLOASED LOOP DESIGN__ONE SET OF CT INSTALLATION FOR MULTIPLE MODULES IN SUPPLY SIDE
Figure 2- 22 3-Phase 4-Wiring System
Figure 2- 23 3-Phase 3-Wiring System
