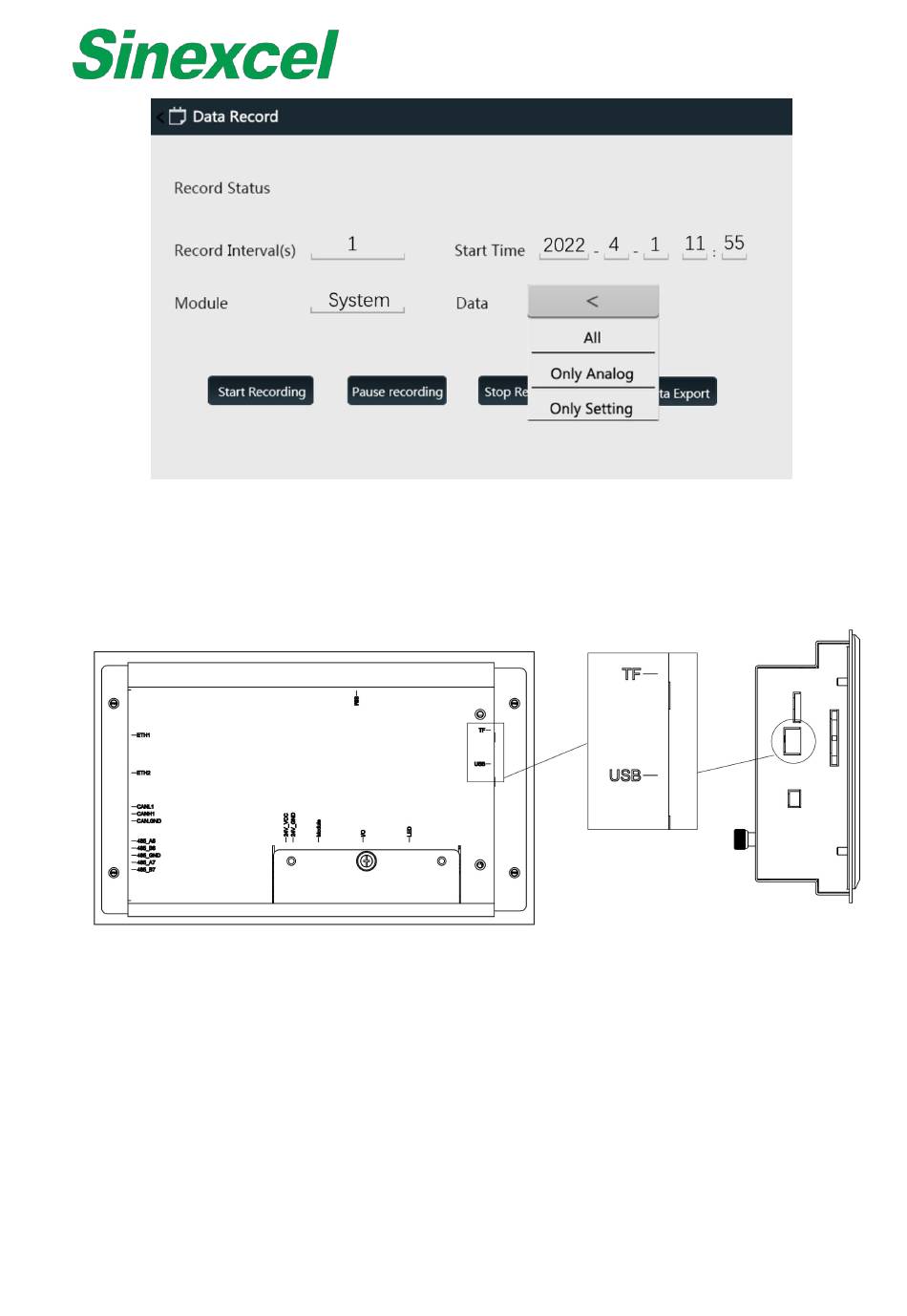

Figure A- 6 Sinexcel 7-inch HMI Data Record Setting
Step 3: Insert the USB into the HMI
Insert the USB flash drive on the side of the monitor.
Figure A- 7 Sinexcel 7-inch HMI USB Port
Start Recording, Pause Recording, Stop Recording, Data Export
Click "Start Recording", then the HMI will start recording the data of certain module or the entire system.
Recording start time can be preset via the interface, click "Start Recording" to start recording, customers can
temporarily stop recording or directly terminate data recording.
Step 4: Data Export
Data record is presented in the form of Excel table, which can be exported by U disk.
Click "Export Data" to save the corresponding data in the USB flash drive in Excel format. After exporting the
data, the monitoring will automatically clear the stored data in the register.
