6.4 AC Choke Connections

The AC input choke carries out several functions in the VACON
component for motor control. It protects the input and DC-link components against abrupt changes of current and voltage as well
as to function as a protection against harmonics.
The VACON NXP (6- and 12-pulse) AC drive is equipped with one or more AC chokes. The AC chokes have two inductance levels to
®
optimize the functionality at different supply voltages. In the installation phase, the wiring of the AC chokes must be checked and
changed if needed (not for FR8 and FR9).
The input is always connected to terminal #1 (see
be connected to terminal #2 or #3 (see
applicable voltage.
In units FR10 to FR12, the connection is changed by moving the cable to the appropriate terminals. In FR13/14, the bridges of the
busbar connection must be moved according to the settings shown in
RISK OF DAMAGE DUE TO INCONSISTENT AC CHOKE INSTALLATION
In units with two or more parallel AC chokes (some FR11 and all FR12 and FR13), all AC chokes have to be wired in the same way.
If AC chokes are wired differently, the AC drive can be damaged.
-
Always wire all AC chokes in the same way.
1 Terminal #1
2 Terminal #2

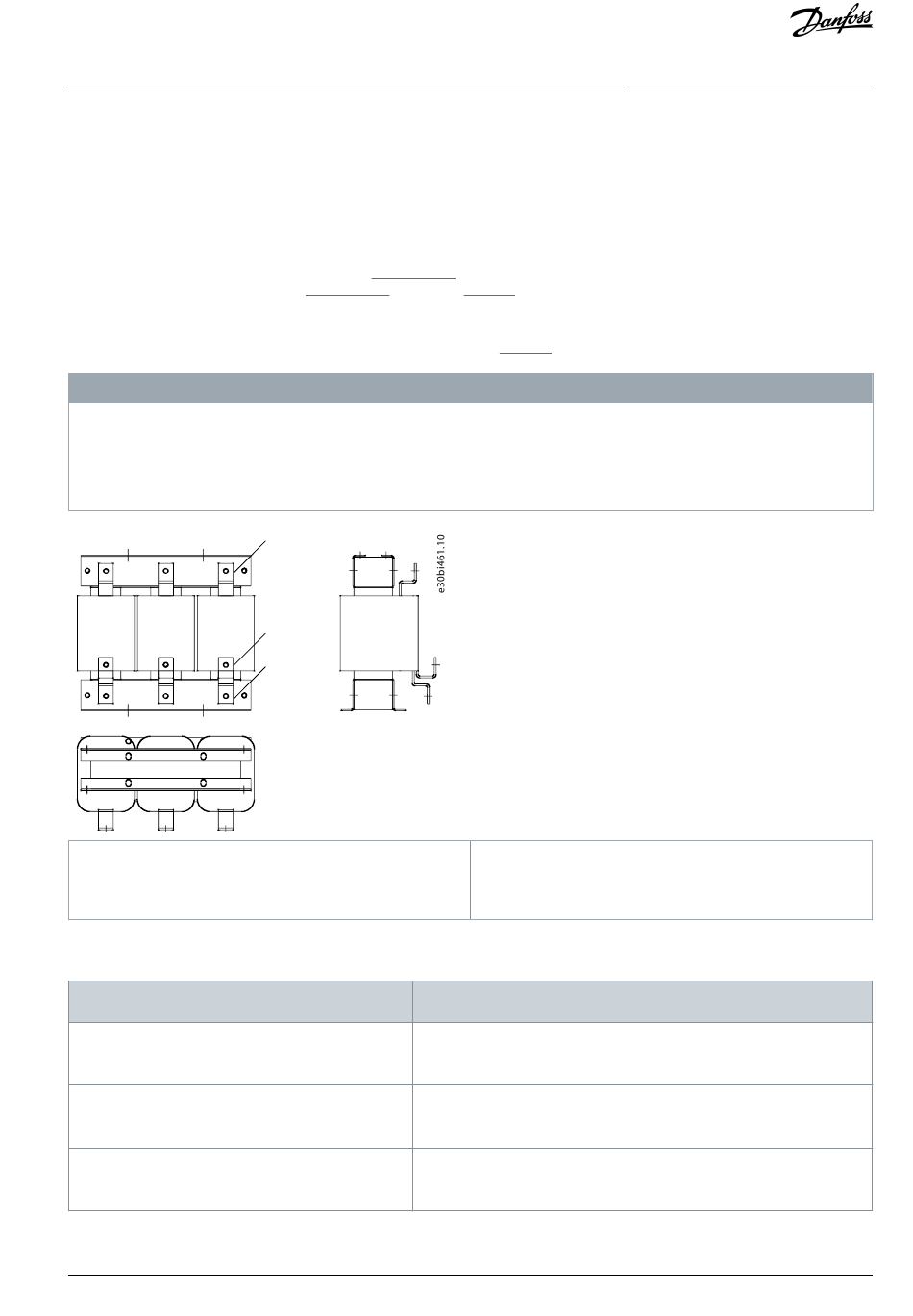

Illustration 25: AC Chokes
Table 17: AC Drive Terminals for AC Choke Connection
Supply voltage
400–480 V AC/50–60 Hz
(500 V unit)
500 V AC/50 Hz
(500 V unit)
575–690 V AC/50–60 Hz
(690 V unit)
Danfoss A/S © 2023.09
Illustration
Illustration 25) as listed in
N O T I C E
1
3
2
AC drive connection (terminals)
2
3
3
NX 6- and 12-pulse AC drive. The AC choke is needed as an essential
®
25). Do not change the connection. The output of the AC choke must
Table 17. The terminals are marked with inductance values and
Table 17.
3 Terminal #3
