Dimensions For Ac Chokes; Dimensions For Ac Choke, Chk0650 - Danfoss VACON NXP IP00 Operating Manual

VACON® NXP IP00 Drive Modules
Operating Guide
Specifications
116 116 116 116 116
553
9
A
M8x25
103 123 109 123 109 123
13 40
85

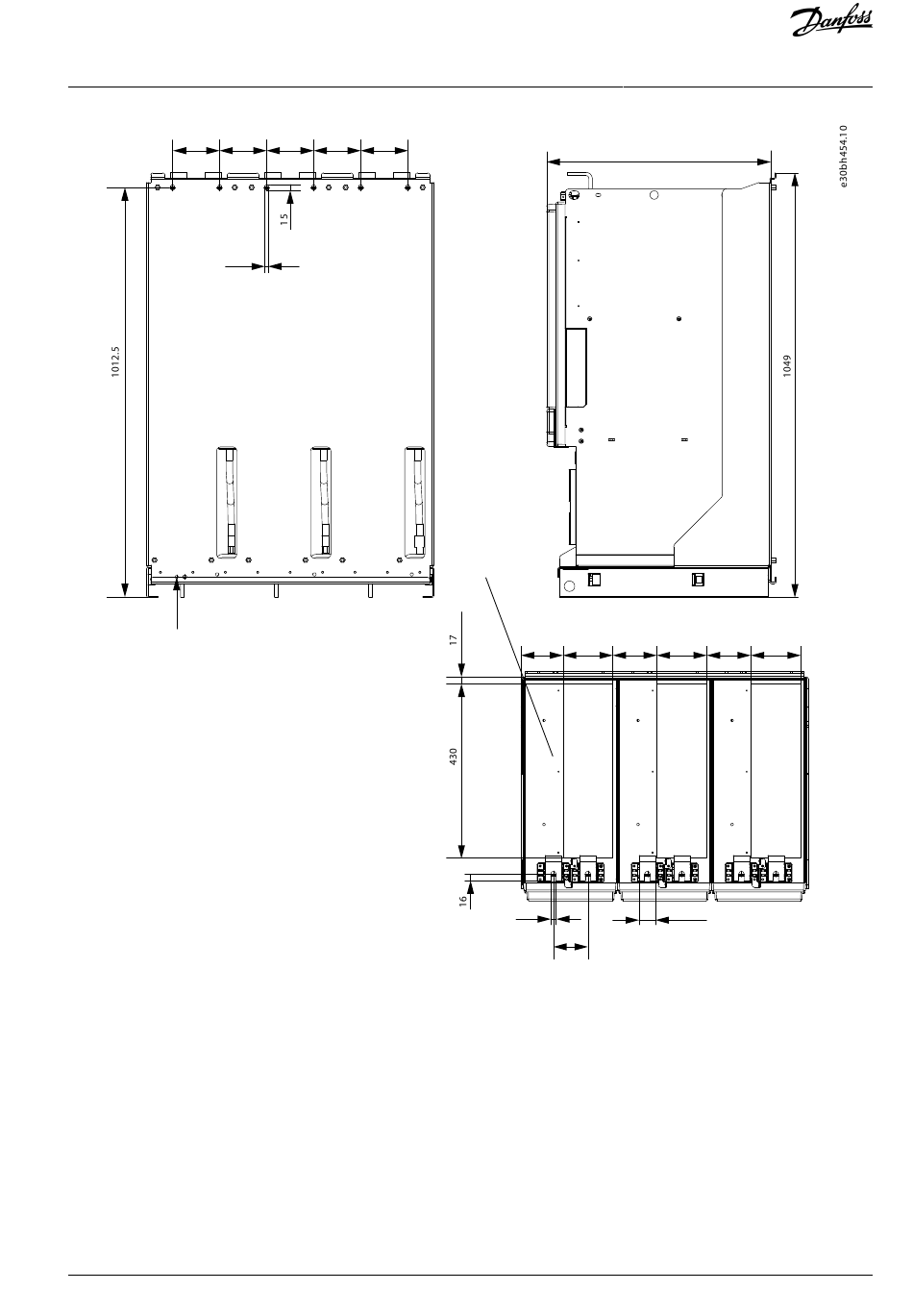

Illustration 84: Dimensions for Inverter Unit FR13, Back View

12.3.5 Dimensions for AC Chokes

12.3.5.1 Dimensions for AC Choke, CHK0650
