12.3.4.2 Dimensions for Power Unit, FR9
400 362
(15.75)
(14.25)
9
(0.35)
1150 1120
(45.28) (44.09)
340
Ø21
9
(13.39)
(0.83)
(0.35)
257
(10.12)
480
(18.90)

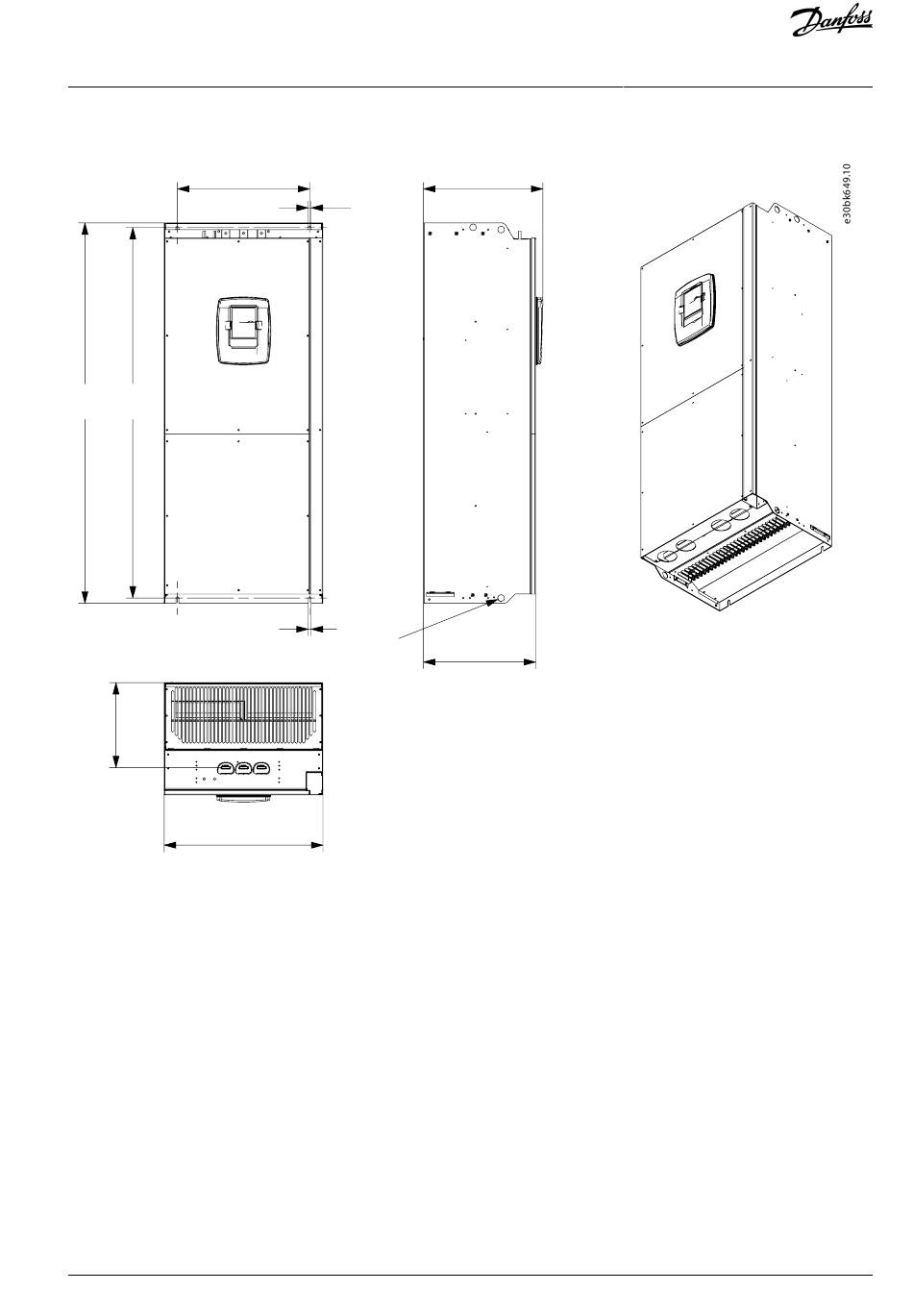

Illustration 78: Power Unit Dimensions, FR9
12.3.4.3 Dimensions for Power Unit, FR10
NOTE! VACON® NXP AC drive enclosure size FR12 is built of two FR10 units.
