VACON® NXP IP00 Drive Modules
Operating Guide
A
AC DRIVE
B.ID:
C
Type:
NXP05205-A0N0NSB-A1A2000000
D
S/N:
V0000 3489478
V00003489478
Code:
132L0668
132L0668
7DP-052050-000049940
E
INPUT:
Uin:3~380-500V, 50/60Hz,
F
520A 40°C / 460A 40°C
OUTPUT: 3~0-Uin 0-320Hz,
520A 40°C / 460A 40°C
G
POWER: 250kW:400Vac / 450HP(Ref):480Vac
IP00/Open Type
H
Firmware: NXP00002V203
Application:
I
Cust. Ord. No: 0023865845
Marks:
SSCC:
157145 690000 776932
Danfoss Industries Pvt Ltd.
Danfoss A/S, 6430 Nordborg, Denmar
Danfoss Ltd. Oxford Road, UB9 4LH Denham UK

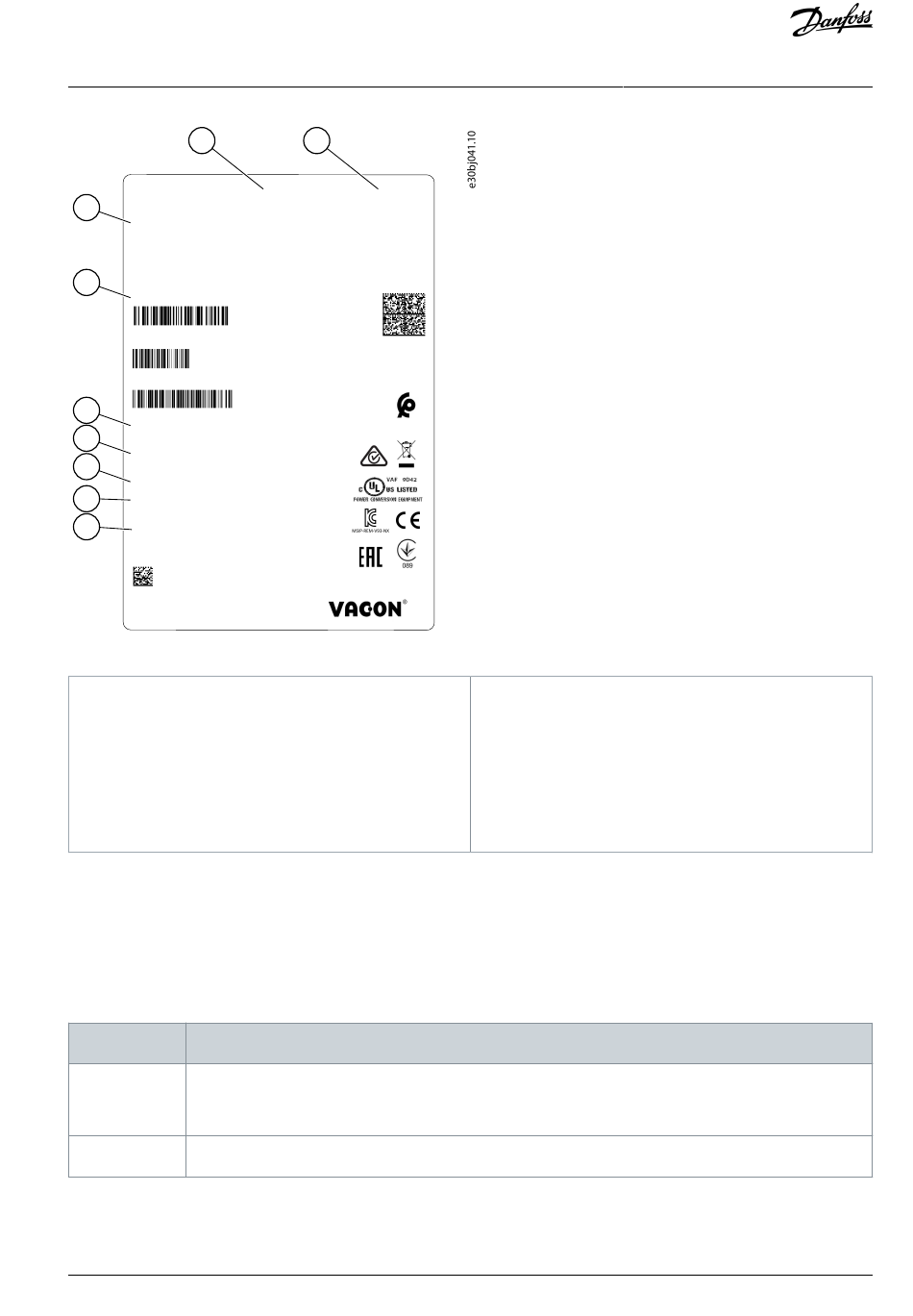

Illustration 1: Package Label of VACON
A The batch ID
B The order number of VACON
C The type code
D The serial number
E The mains voltage

3.3 Description of the Type Code

The type code of VACON is made of standard codes and optional codes. Each part of the type code agrees to the data in the order.
®
Example
The code can have this format, for example:
• NXP03855-A0N0SSG-A1A20000E3
Table 3: Description of the Type Code
Code Description
NXP
The product range:
• NXP = VACON
0385 The drive rating in amperes. For example, 0385 = 385 A
Danfoss A/S © 2023.09
B
210303 1604159374
000010
Made in Finland
NXP IP00 Drive Module
®
®
NXP Air-cooled AC Drive
®
F The nominal output current
G The protection rating
H The firmware code
I The order number of the customer
AQ351737303996en-000201 / DPD00888 | 17
