VACON® NXP IP00 Drive Modules
Operating Guide
1 PE busbar
2 Grounding clamp
6. Connect the cables. See the correct tightening torques in
- a. Connect the electrical power connections between the NFE units and the inverter unit using busbars. For the inter-
nal connections from the AC choke to the NFE unit, also copper cable can be used. See the figures for the correct
placement of the busbars/cables and
for 525–690 V AC
Busbar alignment must be vertical to allow the maximum flow of cooling air.

+
-
1
1
2
- b. Connect 3 input power cabled to the input terminals L1,L2, and L3 of the NFE units.

L1
L2
L3

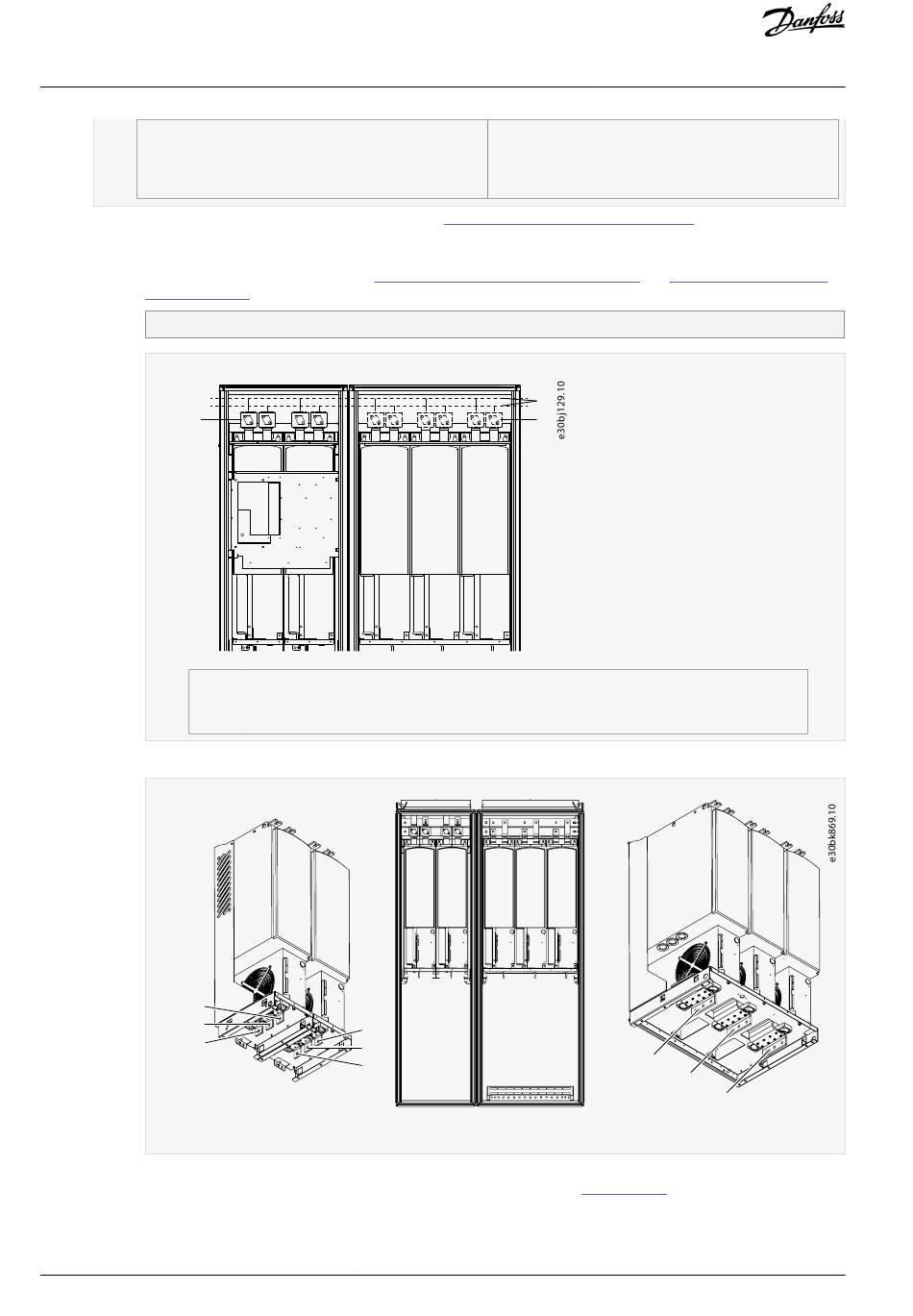

Illustration 43: Location of NFE input terminals and FR13 output terminals
c.
- Connect 3 motor cables to the output terminals U, V, and W of the power unit.
- d. Connect the control cables.For more information on control cables, see
e.
- Attach the grounding conductor of each cable to the PE busbar.
7. To link the NFE units and the inverter units together,
-
