VACON® NXP IP00 Drive Modules
Operating Guide
26.5
232
_
+
U
150
152.5 232

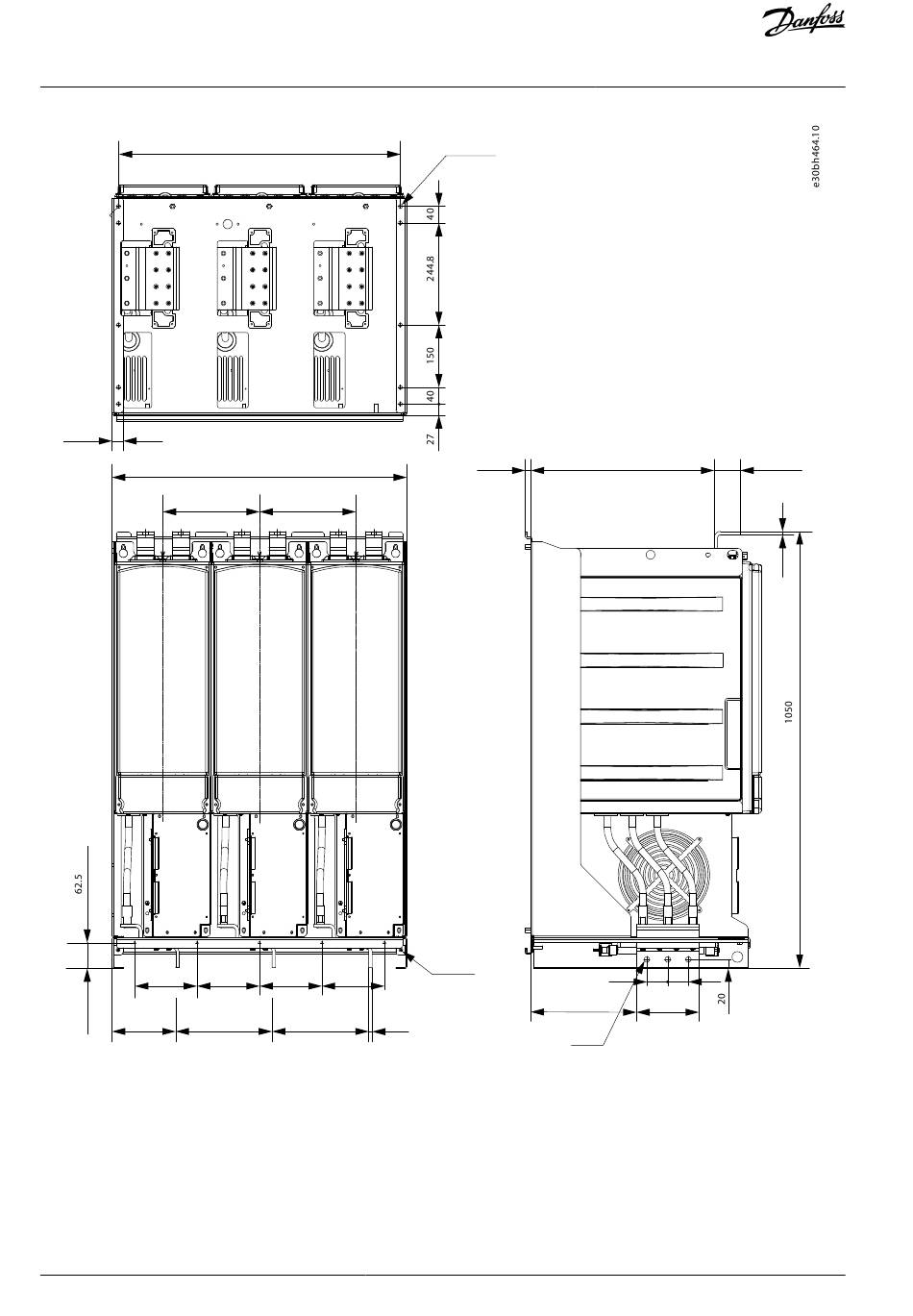

Illustration 83: Dimensions for Inverter Unit FR13, Front View
128 | Danfoss A/S © 2023.09
677
708
232
_ _
+ +
V W
150 150 150
232 8
Ø9.5
13
Ø4.6
254
Ø13
Specifications
441 62
50 50
150
