VACON® NXP IP00 Drive Modules
Operating Guide
A
The [ready] LED is on when the AC power is connec-
ted to the drive and no faults are active. At the same
time, the drive status indication shows READY.
B
The [run] LED is on when the drive operates. The
LED blinks when the Stop button is pushed and the
drive ramps down.
C
The [fault] LED blinks when the AC drive is stopped
because of dangerous conditions (Fault Trip). See
8.5.1 Finding the Active Faults
D
The Start button. When the keypad is the active con-
trol mode, this button starts the motor. See
Changing the Control
E
The Stop button. The button stops the motor (unless
the stop is disabled by the parameter R3.4/R3.6). See
8.4.2 Keypad Control Parameters
F
The Menu button Right. Use it to move forward in
the menu, move the cursor right (in the parameter
menu) and to go to the edit mode.
3.6.2 Display

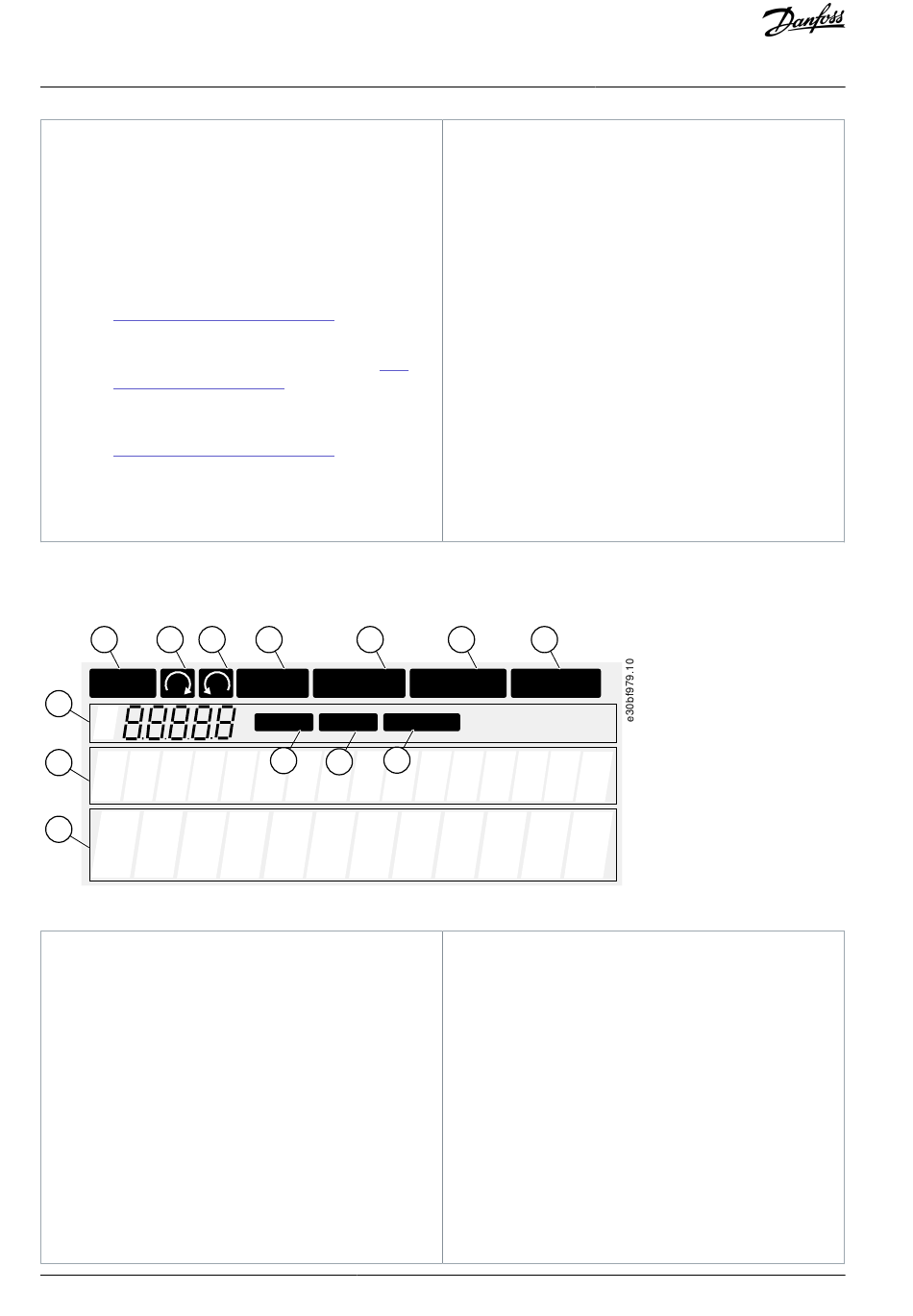

The following figure describes the sections of the display.
A
B
C
RUN
K
L
M
Illustration 3: Display Indications
A
The motor is in RUN state. The indication starts to
blink when a stop command is given and blinks
while the speed continues to decrease.
B
The motor rotation direction is forward.
C
The motor rotation direction is reverse.
D
The drive does not operate.
E
The AC power is on.
F
An alarm is given.
G
A fault is given and the AC drive is stopped.
22 | Danfoss A/S © 2023.09
Menu.
8.4.3
Mode.
M3.
D
E
STOP
READY
I/O term
Keypad
Bus/Comm
J
H
I
G
The [enter] button. Use it to accept a selection, reset
the fault history (push for 2–3 s).
H
The Browser button Down. Use it to scroll the main
menu and the pages of different submenus and to
decrease a value.
I
The [select] button. Use it to move between 2 last
displays, for example, to see how new value
changes some other value.
J
The Menu button Left. Use it to move back in the
menu, move the cursor left (in the Parameter menu).
K
The [reset] button. Use it to reset a fault.
L
The Browser button Up. Use it to scroll the main
menu and the pages of different submenus and to
increase a value.
F
G
ALARM
FAULT
H
The I/O terminals is the active control mode.
I
The control panel is the active control mode.
J
The fieldbus is the active control mode.
K
The location indication. The line shows the symbol
and number of the menu, parameter, and so on. For
example, M2 = Menu 2 (Parameters) or P2.1.3 = Ac-
celeration time.
L
The description line. The line shows the description
of the menu, value, or fault.
M
The value line. The line shows the numerical and
text values of references, parameters, and so on. It
also shows the number of submenus that are availa-
ble in each menu.
Product Overview
AQ351737303996en-000201 / DPD00888
