OPTA2
RO1/1
21
RO1/2
22
RO1/3
23
RO2/1
24
RO2/2
25
RO2/3
26
OPTA3
RO1/1
21
RO1/2
22
RO1/3
23
RO2/1
25
RO2/2
26
TI1+
28
Thermistor input
TI1-
29

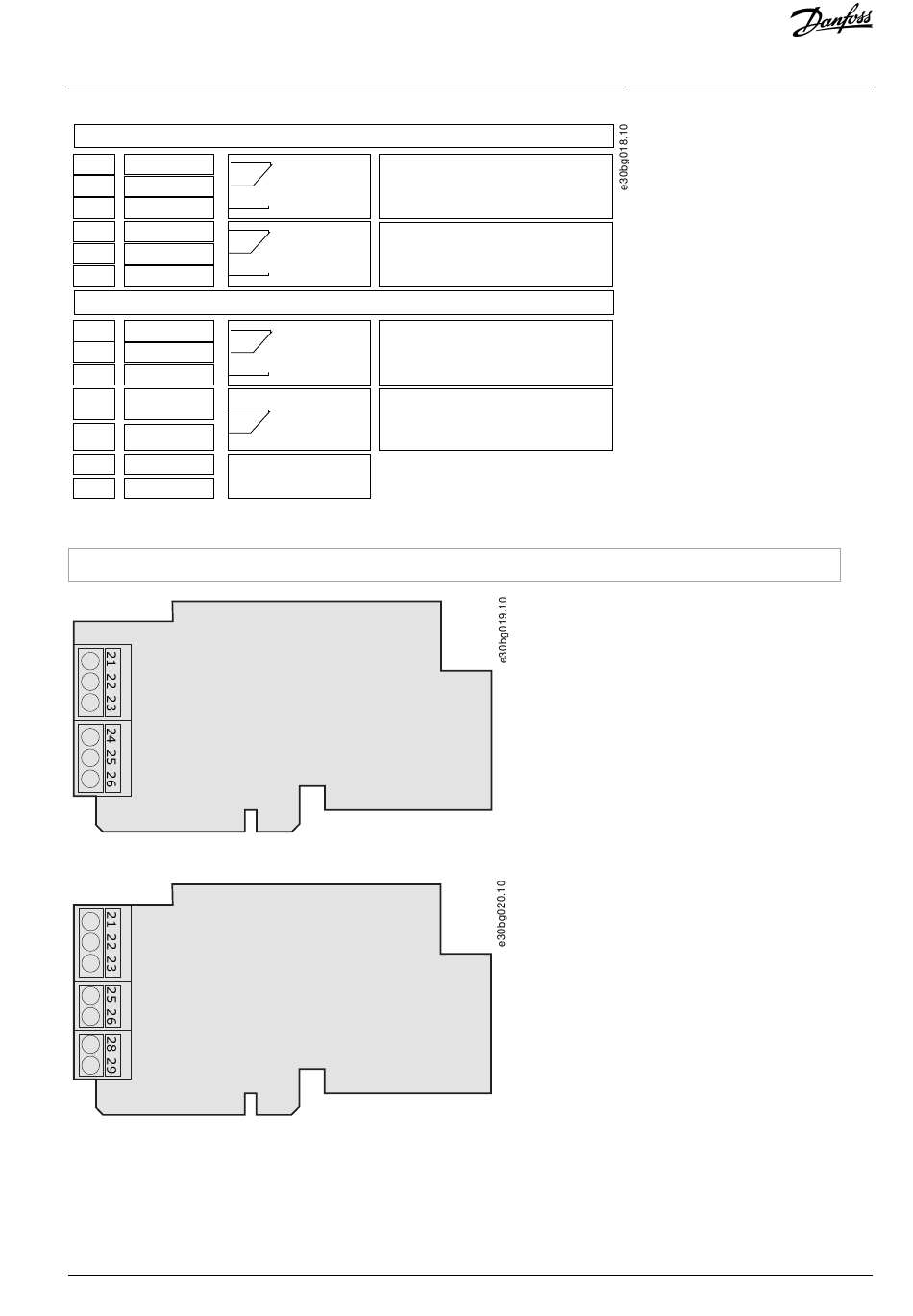

Illustration 58: Control Terminal Signals on Relay Boards OPTA2 and OPTA3
*) Parameter reference on control panel and NCDrive.
X1
X2
Illustration 59: OPTA2
X1
X2
X3
Illustration 60: OPTA3

7.4 Fiber Cable Connections

When optical cables are used to link the power unit and the control board, a special Optical Cable Adapter Board connected to the
control board D-connector is used.
Danfoss A/S © 2023.09
Switching capacity
Relay output 1
• 24 VDC/8 A
• 250 VAC/8 A
DigOUT:B.1 *) • 125 VDC/0.4 A
Minimum switching load
• 5 V/10 mA
Switching capacity
Relay output 2
• 24 VDC/8 A
• 250 VAC/8 A
DigOUT:B.2 *)
• 125 VDC/0.4 A
Minimum switching load
• 5 V/10 mA
Switching capacity
Relay output 1
• 24 VDC/8 A
• 250 VAC/8 A
• 125 VDC/0.4 A
Minimum switching load
DigOUT:B.1 *)
• 5 V/10 mA
Switching capacity
• 24 VDC/8 A
Relay output 2
• 250 VAC/8 A
• 125 VDC/0.4 A
Minimum switching load
DigOUT:B.2 *)
• 5 V/10 mA
DigIN:B.1 *)
Control Unit
