Reference potentiometer,
1-10kΩ

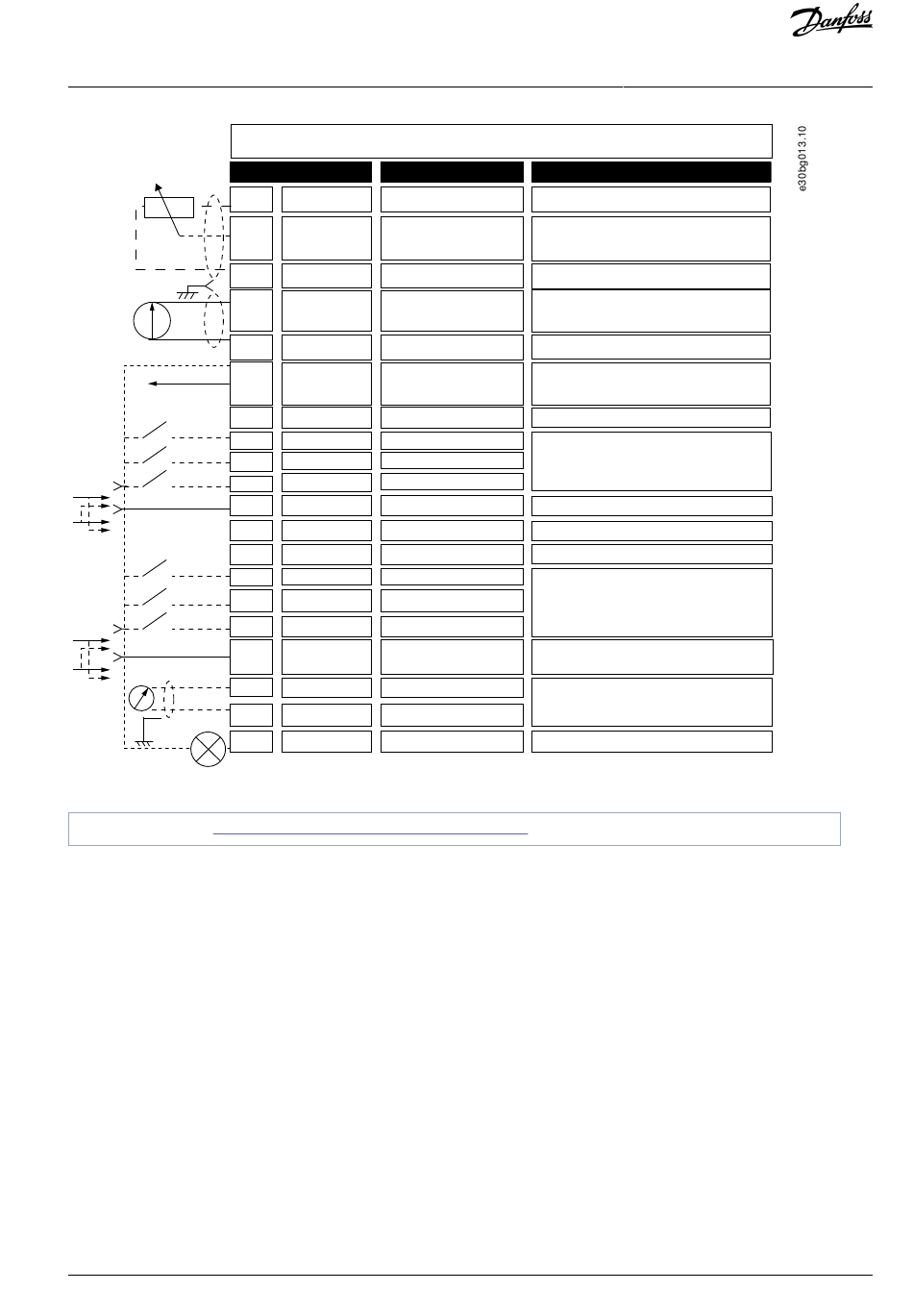

Illustration 53: Control Terminal Signals on OPTA1
*) See figure in 7.3.2.2 Jumper Selections on the OPTA1 Basic Board
Parameter references for I/O on control panel and NCDrive are: An.IN:A.1, An.IN:A.2, DigIN:A.1, DigIN:A.2, DigIN:A.3, DigIN:A.4, Dig-
IN:A.5, DigIN:A.6, AnOUT:A.1 and DigOUT:A.1.
To use the control voltage output +24 V/EXT+24 V:
• Wire the +24 V control voltage to digital inputs through an external switch. OR
• Use the control voltage to power up external equipment, such as encoders and auxiliary relays.
The specified total load on all available +24 V/EXT+24 V output terminals must not exceed 250 mA.
The maximum load on the +24 V/EXT+24 V output per board is 150 mA. If there is a +24 V/EXT+24 V output on the board, it is locally
short circuit protected. If one of the +24 V/ EXT+24 V outputs short circuits, the others remain powered because of the local protec-
tion.
Danfoss A/S © 2023.09
Standard I/O board
Terminal
+10V Reference voltage
1
ref
Analogue input,
AI1+
2
voltage or current
GND/AI1-
Analogue input common
3
Analogue input,
AI2+
4
voltage or current
GND/AI2-
Analogue input common
5
+24V 24 V aux. voltage
6
GND
I/O ground
7
DIN1 Digital input 1
8
DIN2
Digital input 2
9
DIN3
Digital input 3
10
CMA
11 Common A for DIN1—DIN3
+24V
Control voltage output
12
GND
I/O ground
13
DIN4 Digital input 4
14
DIN5 Digital input 5
15
DIN6 Digital input 6
16
CMB
17 Common B for DIN4-DIN6
AO1+
18
Analogue signal (+output)
AO1-
19 Analogue output common
DO1 Open collector output
20
Signal Description
Maximum current 10 mA
Selection V/mA with jumper block X1 (*)
0...+10 V (Ri = 200 kΩ)
(-10V...+10V Joystick ctrl, sel. with jumper)
0-20 mA (Ri =250 Ω)
Differential input if not connected to ground
Allows ±20 V common mode voltage to GND
Selection V/mA with jumper block X1 (*)
0...+10 V (Ri = 200 kΩ)
(-10V...+10V Joystick ctrl, sel. with jumper)
0-20 mA (Ri =250 Ω)
Differential input if not connected to ground
Allows ±20 V common mode voltage to GND
±15%, max. 250 mA (all boards total)
150 mA (from single board)
Can also be used as external power back-up for
the control unit (and fieldbus)
Ground for reference and controls
Ri = min. 5 kΩ
18-30 V = 1
Digital inputs can be disconnected from ground (*)
Same as terminal #6
Same as terminal #7
Ri = min. 5 kΩ
18-30 V = 1
Must be connected to GND or 24 V of I/O term.
or to ext.24 V or GND
Selection with jumper block X3 (*)
Output signal range: Current 0(4)-20 mA,
RL max 500 Ω or
Voltage 0-10 V, RL >1kΩ
Selection with jumper block X6 (*)
Maximum Uin = 48 VDC
Maximum current = 50 mA
