Procedure
1.
Mount the AC chokes in the bottom part of the cabinet.
2.
Fasten the AC chokes on an assembly plate or using mounting rails.
3.
If the cabinet is transported in horizontal position, install an upper support plate above the AC chokes, and equip the sup-
port plate with air circulation holes. See
1
1

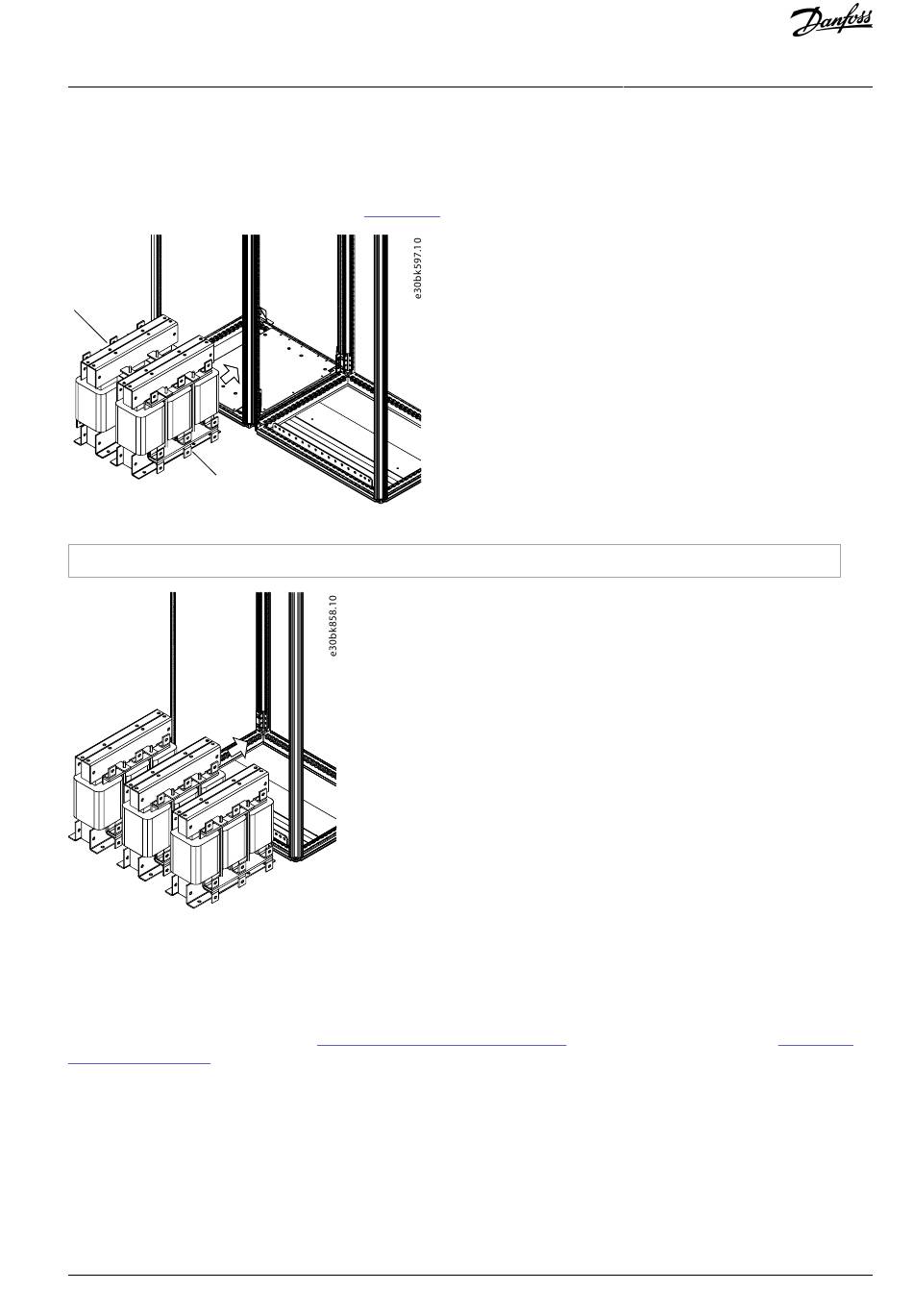

Illustration 19: Mounting 2 AC Chokes
1
Terminals pointing outwards
Illustration 20: Mounting 3 AC chokes
5.5.2.2 Mounting the Power Unit, FR13–FR14
This topic gives instructions on how to mount the power unit in the cabinet for VACON® NXP IP00 Drive Module, FR13–FR14.
To make replacement of spare parts and other service work easier, we recommend mounting the power unit on rails. See all installa-
tion measurements for mounting rails in
Dimension
Information.
NOTE! If the power unit is installed before the AC chokes, the center of gravity is high at this stage. Support the enclosure thorough-
ly during the assembly.
Procedure
1.
Fasten the mounting rails to the sides of the cabinet.
2.
To allow mounting the power unit to the rear wall of the cabinet, install a fixing bar on the rear wall of the cabinet at appro-
priate level.
3.
Mount two unit supports on the sides. The units are intended to rest on these supports.
4.
Fasten the power unit to the rear wall of the enclosure using the fixing holes in the frame.
