VACON® NXP IP00 Drive Modules
Operating Guide
-
Door installation kit NXDRA02B for installing the control panel on the enclosure door.
-
Cable set, including seven optical cables and a 24 V connecting cable, readily connected to the power unit and the
control unit. Standard length: 2.3 m (4.265 ft).
4.
Attach the Product Modified Label. See
4.3 Storing the Product
If the product has to be stored before installing it, follow these instructions.
Procedure
1.
If the AC drive must be stored before using it, make sure that the ambient conditions agree to the following:
-
Storage temperature: -40...+70 ° C (-40...+158 ° F)
-
Relative humidity: 0–95%, no condensation
-
The environment must be free from dust. If there is dust in the air, the AC drive must be well protected to make sure
that no dust gets into the AC drive.
2.
If the AC drive must be kept in storage for a long time, connect the power to the AC drive each year. Keep the power on for
a minimum of 2 hours.
3.
If the storage time is more than 12 months, charge the electrolytic DC capacitors with caution. To reform the capacitors,
obey the instructions in
We do not recommend a long storage time.
4.4 Lifting the Units
The units are delivered either in a plywood case. To lift the unit out of the case, use lifting equipment capable of handling the
weight of the units.
Find the lifting holes on the top of the unit.
Check the weights of the modules in
Procedure
1.
Place the lifting hooks symmetrically in at least 2 holes. The maximum allowed lifting angle is 45 °.
≤45°

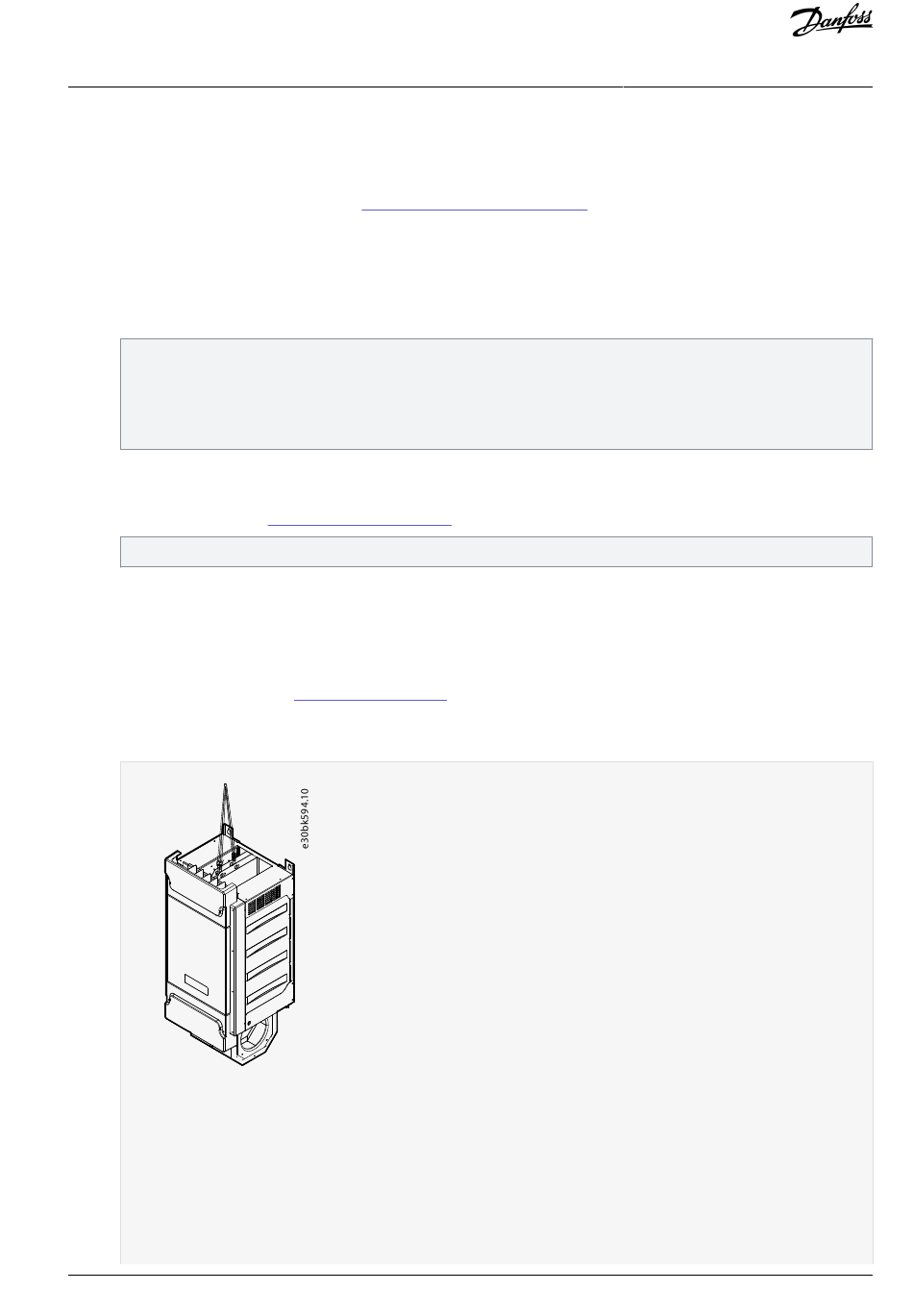

Illustration 5: Lifting FR8–FR12 Units
Danfoss A/S © 2023.09
4.6 Using the Product Modified
10.2 Reforming the
Capacitors.
12.1 Weights of the
Units.
Receiving the Delivery
Label.
AQ351737303996en-000201 / DPD00888 | 25
