Powering I/O Circuits

In most applications, it will be necessary to power the input devices from one power source,
and to power output loads from another source. Loads often require high-energy AC power,
while input sensors use low-energy DC. If a machine operator is likely to come in close
proximity to input wiring, then for safety reasons, high-energy output circuits would be
isolated.

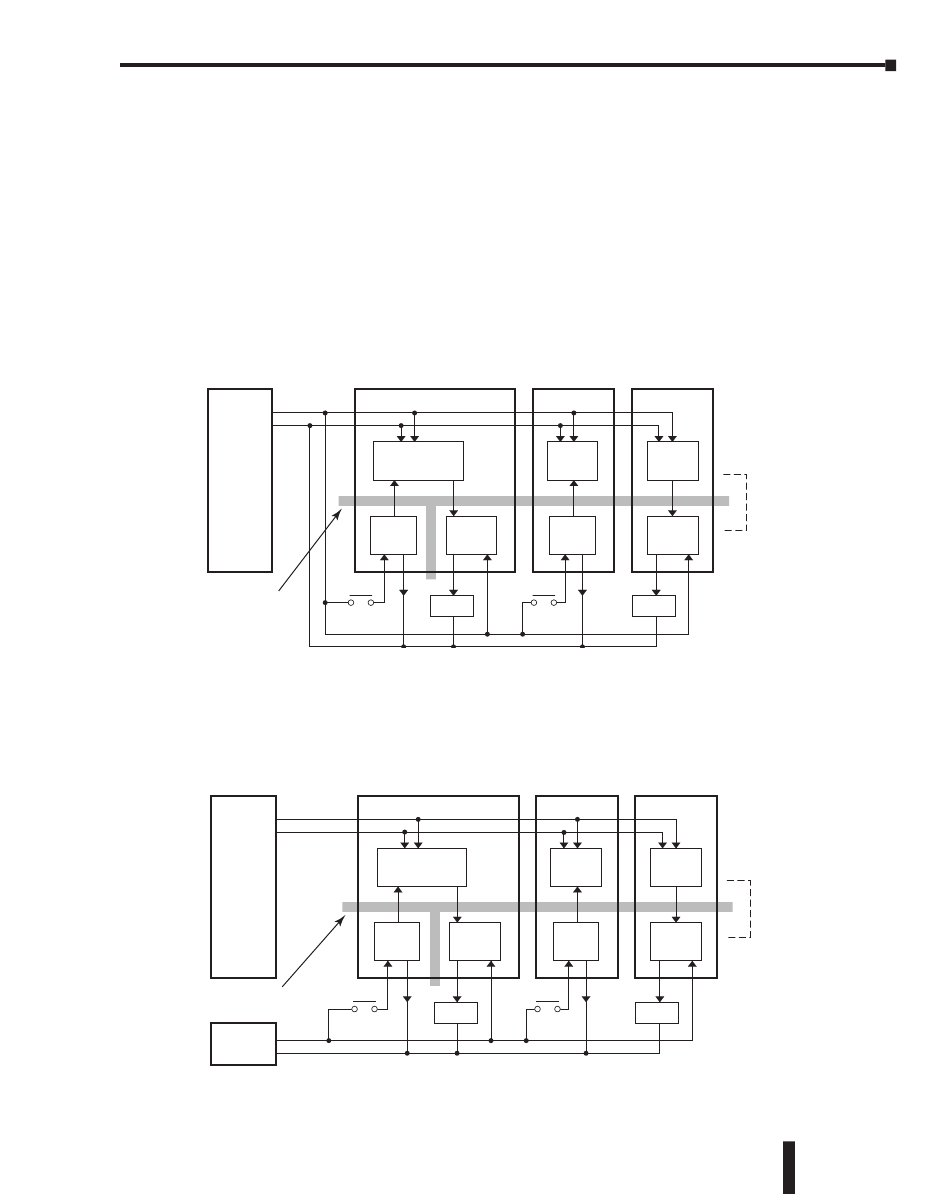

For the DC input/output circuits, you can use the same power source as the PLC module
(and I/O modules). However, you lose the isolation between the logic circuits and the input/
output circuits. For AC input/output circuits, you don't need to worry about sharing the
24VDC.
Power Supply
24VDC
0VDC
Isolation Boundary
To keep the isolation between the logic circuits and the input/output circuits, we recommend
using another power supply for the DC input and output circuits.
Power Supply
24VDC
0VDC
Isolation Boundary
24VDC
Power
Supply
0VDC
