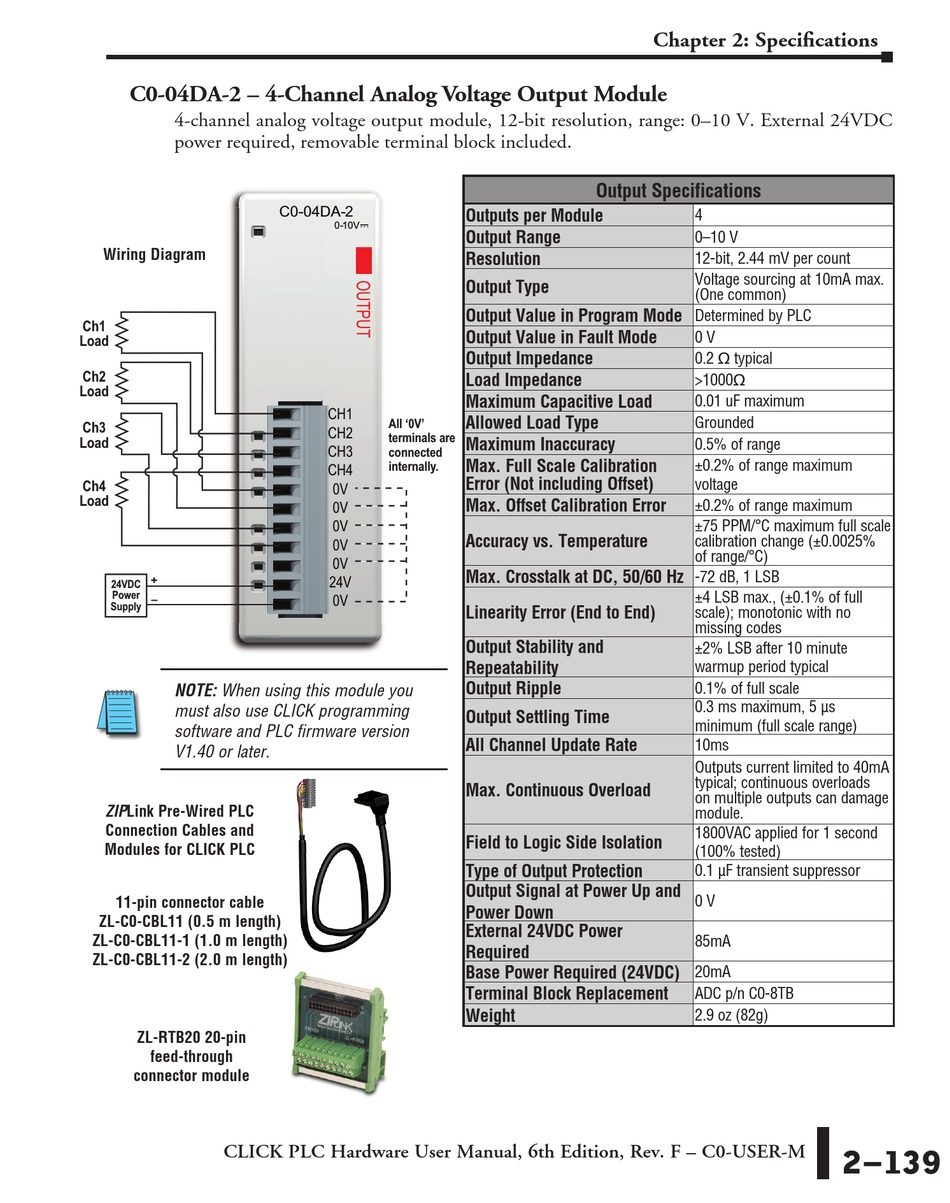

C0-04DA-2 – 4-Channel Analog Voltage Output Module
4-channel analog voltage output module, 12-bit resolution, range: 0–10 V. External 24VDC
power required, removable terminal block included.
Wiring Diagram
Ch1
Load
Ch2
Load
Ch3
Load
Ch4
Load
+
24VDC
Power
–
Supply
NOTE: When using this module you
must also use CLICK programming
software and PLC firmware version
V1.40 or later.
ZIPLink Pre-Wired PLC
Connection Cables and
Modules for CLICK PLC
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
ZL-RTB20 20-pin
feed-through
connector module
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
C0-04DA-2
0-10V
CH1
All '0V'
CH2
terminals are
CH3
connected
internally.
CH4
0V
0V
0V
0V
0V
24V
0V
Output Specifications
Outputs per Module
Output Range
Resolution
Output Type
Output Value in Program Mode
Output Value in Fault Mode
Output Impedance
Load Impedance
Maximum Capacitive Load
Allowed Load Type
Maximum Inaccuracy
Max. Full Scale Calibration
Error (Not including Offset)
Max. Offset Calibration Error
Accuracy vs. Temperature
Max. Crosstalk at DC, 50/60 Hz
Linearity Error (End to End)
Output Stability and
Repeatability
Output Ripple
Output Settling Time
All Channel Update Rate
Max. Continuous Overload
Field to Logic Side Isolation
Type of Output Protection
Output Signal at Power Up and
Power Down
External 24VDC Power
Required
Base Power Required (24VDC)
Terminal Block Replacement
Weight
Chapter 2: Specifications
4
0–10 V
12-bit, 2.44 mV per count
Voltage sourcing at 10mA max.
(One common)
Determined by PLC
0 V
0.2 q typical
>1000q
0.01 uF maximum
Grounded
0.5% of range
±0.2% of range maximum
voltage
±0.2% of range maximum
±75 PPM/°C maximum full scale
calibration change (±0.0025%
of range/°C)
-72 dB, 1 LSB
±4 LSB max., (±0.1% of full
scale); monotonic with no
missing codes
±2% LSB after 10 minute
warmup period typical
0.1% of full scale
0.3 ms maximum, 5 μs
minimum (full scale range)
10ms
Outputs current limited to 40mA
typical; continuous overloads
on multiple outputs can damage
module.
1800VAC applied for 1 second
(100% tested)
0.1 μF transient suppressor
0 V
85mA
20mA
ADC p/n C0-8TB
2.9 oz (82g)
2–139
